SummitView Ô Tall Winch Mount Front Camera
MAKE SURE THAT THIS IS THE CORRECT ONE FOR YOUR FAIRLEAD!
Please read thoroughly before starting installation and check that kit contents are complete.

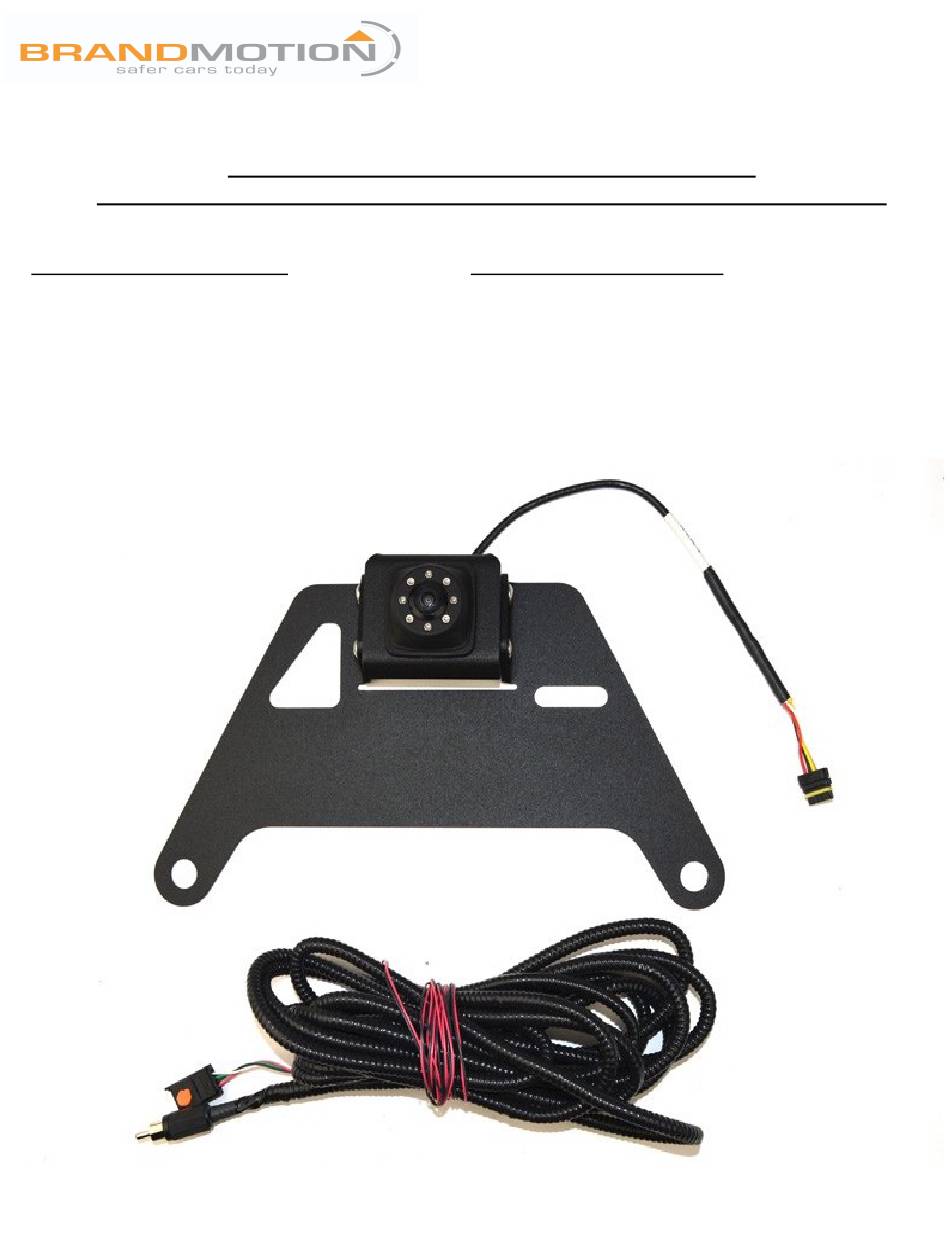

Items Included in the Kit:
Underhood power/video harness
Winch mount with attached camera
1 Bottle of Z-tech
These instructions
9002-8853 instructions 01-25-2017.docx
(Kit # 9002-8853)
THERE ARE 2 DIFFERENT HEIGHT BRACKETS.
INSTALLATION INSTRUCTIONS
Tools & Supplies Needed:
Wire cutters
Wire strippers
Socket set
Metric Allen wrenches
Zip ties
Digital Multimeter/Computer safe test light
Electrical tape
1
5
Page
of
GS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for BrandMotion SummitView 9002-8853
Summary of Contents for BrandMotion SummitView 9002-8853
- Page 1 INSTALLATION INSTRUCTIONS SummitView Ô Tall Winch Mount Front Camera (Kit # 9002-8853) THERE ARE 2 DIFFERENT HEIGHT BRACKETS. MAKE SURE THAT THIS IS THE CORRECT ONE FOR YOUR FAIRLEAD! Please read thoroughly before starting installation and check that kit contents are complete. Items Included in the Kit: Tools &...
-
Page 2: Safety Precautions
● Only perform this task if confidence, skill, and physical ability permit. NOTE: We strive to provide accurate and up-to-date installation instructions. For the latest full color instructions, as well as an installation video, please visit www.brandmotion.com Mounting camera ABOVE the fairlead: Remove the fairlead from your front winch assembly and/or bumper. - Page 3 INSTALLATION INSTRUCTIONS Mounting camera BELOW the fairlead: Lay camera face down on a bench or table with something to protect the face of the camera. Remove the (4) 3mm Allen bolts on the side of the camera mount. Pull the bracket off the mount and rotate 180º and insert the Allen bolts back in, do not tighten all the way until installed and adjusted.
- Page 4 INSTALLATION INSTRUCTIONS Plug in the water proof camera connector into the power harness. Make sure the connector is going the proper way and that it plugs in all the way. Route the harness away from any moving parts so the harness will not get cut. Enter the underhood area and secure to the harness running along the driver’s side fender with zip ties.
- Page 5 INSTALLATION INSTRUCTIONS THERE ARE 2 DIFFERENT HEIGHT BRACKETS. MAKE SURE THAT THIS IS THE CORRECT ONE FOR YOUR FAIRLEAD! 9002-8853 instructions 01-25-2017.docx Page...
