Southworth Products

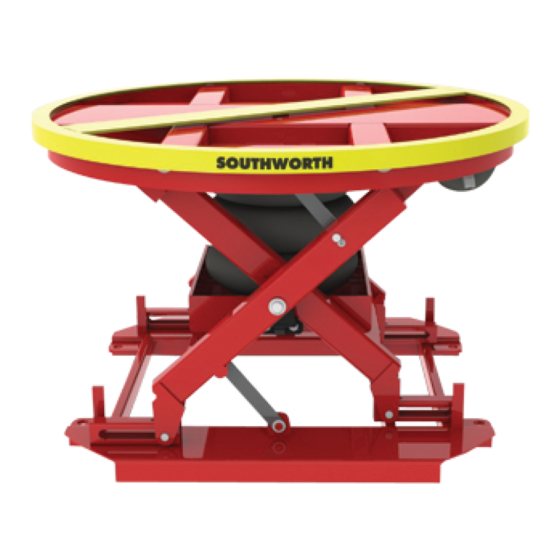

PalletPal 360 Air

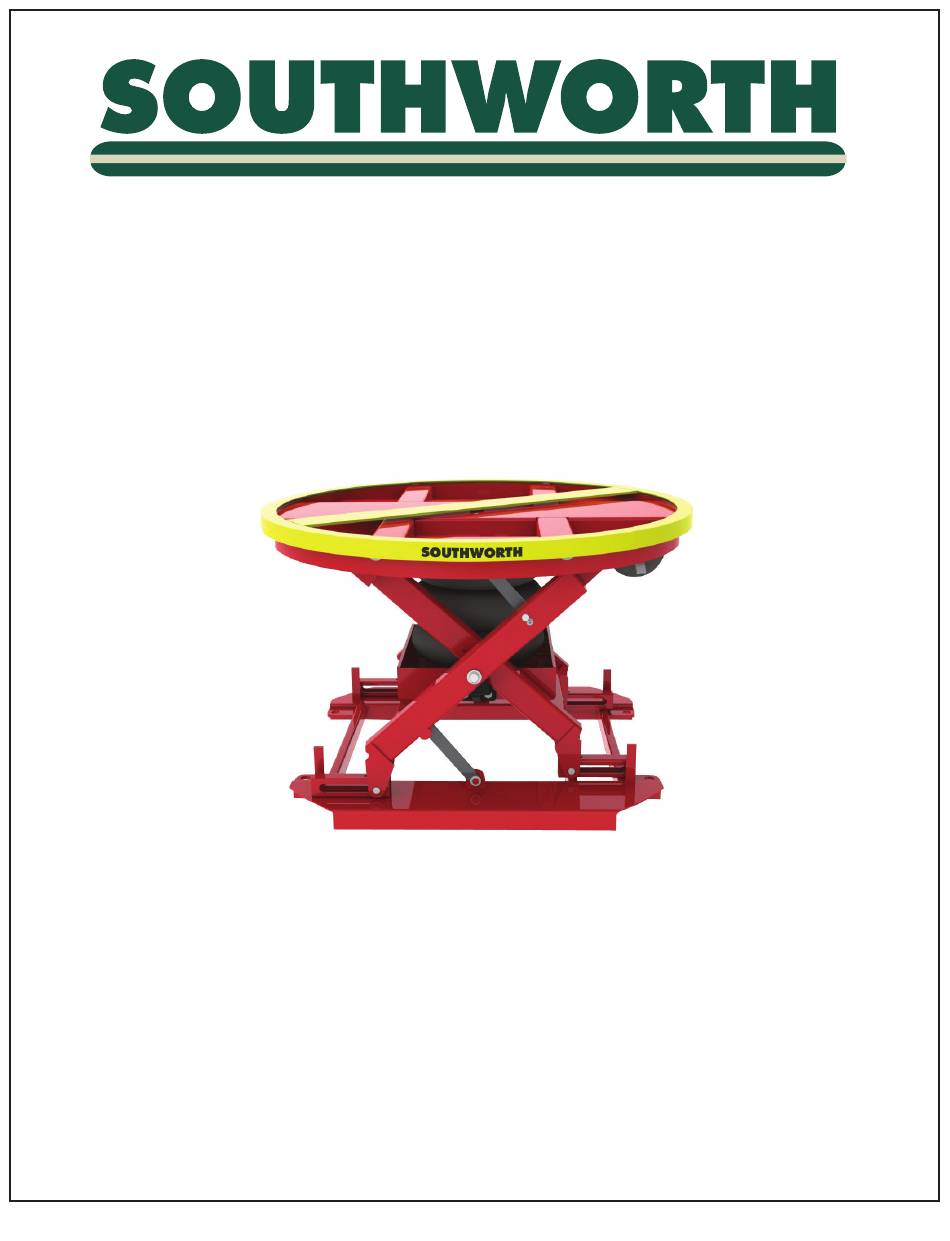

Owner's Manual
Model:
PalletPal 360 Air
Serial Number:
__________________________
Date placed in
__________________________
service:
Southworth Produicts Corp.
P.O. Box 1380, Portland, ME 04104-1380
Telephone: 800-743-1000 • 207-878-0700
Fax: 207-797-4734
www.SouthworthProducts.com
March 6, 2020
PalletPal 360 Air
Advertisement
Table of Contents
Related Manuals for Southworth PalletPal 360 Air
Summary of Contents for Southworth PalletPal 360 Air
- Page 1 PalletPal 360 Air Owner’s Manual Model: PalletPal 360 Air Serial Number: __________________________ Date placed in __________________________ service: Southworth Produicts Corp. P.O. Box 1380, Portland, ME 04104-1380 Telephone: 800-743-1000 • 207-878-0700 Fax: 207-797-4734 www.SouthworthProducts.com Southworth Products March 6, 2020 PalletPal 360 Air...
-
Page 2: Table Of Contents
Maintenance & Repair ..................14 Maintenance Pins ........................ 14 Periodic Maintenance ......................15 6.2.1 Weekly ......................... 15 6.2.2 Every Six Months ......................15 Ordering Replacement Parts....................16 Troubleshooting ....................17 Warranty & Contact Information ................. 18 Southworth Products PalletPal 360 Air... - Page 3 This label (part # 10095524) is WARNING required by California Law. For Cancer and Reproductive Harm - more information visit: www.P65Warnings.ca.gov www.P65Warnings.ca.gov Southworth Products PalletPal 360 Air...
-
Page 4: Introduction
Replacement Parts - When parts or components are replaced, they shall be replaced with parts or components approved by the original manufacturer. Maintenance Training - The user shall ensure only qualified personnel inspect and maintain the machine in accordance with the manufacturers recommendations. Southworth Products PalletPal 360 Air... -
Page 5: Responsibilities Of Operators
3. Nameplates, precautionary and instructional markings and/or labeling. 4. Items specified by the manufacturer. Problem or Malfunctions - Any problems or malfunctions that affect the safety of operations shall be repaired prior to the use of the machine. Southworth Products PalletPal 360 Air... - Page 6 • Problems or malfunctions - Any problem(s) or malfunction(s) that affect the safety of operations shall be repaired prior to the use of the machine. Southworth Products PalletPal 360 Air...
-
Page 7: Safety
CAUTION Indicates a hazardous situation that, if not avoided, could result in minor or moderate injury. NOTICE Indicates information considered important, but not hazard- related (e.g., messages relating to property damage). Southworth Products PalletPal 360 Air... -
Page 8: Labeling
All labels must be legible. If any label is missing, damaged, or otherwise illegible contact the manufacturer for replacement labels. Label Part Numbers & Quantity Item Part Number QTY. 10079929 10088222 2.5 ft 10089457 10089458 2991041 5900191 10095524 Label Location Diagram Southworth Products PalletPal 360 Air... -
Page 9: Setup
To prevent damage to the machine, do not lag the machine to the floor. Component Identification ROTATOR RING LEG SET PRESSURE TANK ACTUATOR MAINTENANCE PINS (BOTH SIDES) ROLLER TRACKS ROLLER TRACKS (BOTH SIDES) FORK POCKETS HOSE TO ACTUATOR PRESSURE GAUGE MANUAL DISCHARGE VALVE PRESSURE RELIEF VALVE VALVE STEM Southworth Products PalletPal 360 Air... -
Page 10: Machine Setup
As the load is removed from the pallet, the lift will raise to maintain proper working height. Actual working height can be adjusted by increasing or decreasing the system pressure. Do not exceed 30 PSI /2.1 Bar when unloaded and in the fully raised position. Southworth Products PalletPal 360 Air... -
Page 11: Operation
As the load is added and removed from the pallet, the height of the platform will raise or lower to maintain the proper working height. To adjust the working height, add or remove air from the system. Southworth Products PalletPal 360 Air... -
Page 12: Fork Truck Or Stacker Loading & Unloading
5.3.2 Transporting with Portability Kits 5.3.2.1 Caster Package If equipped with the caster package, always engage the floor lock before loading and unloading. Disengage the floor lock to move the machine to the desired location. Southworth Products PalletPal 360 Air... - Page 13 5.3.2.2 Leveling Feet If equipped with the leveling feet package, the machine can be raised approximately three inches to accommodate the use of manual/ powered pallet jacks. Southworth Products PalletPal 360 Air...
-
Page 14: Maintenance & Repair
2. Insert the pins into the hole in the top of the roller track (both Roller Track sides). If not supplied with maintenance pins, two 3/8” diameter by 3” long bolts may be used instead. Maintenance Pin Engaged Southworth Products PalletPal 360 Air... -
Page 15: Periodic Maintenance
Apply dry PTFE lubricant to all pivot points, rollers, and bearings. ROTATOR RING/PLATFORM ROTATOR RING PIVOT WASHER 8X ROTATOR AIR RESERVOIR RING BEARINGS MAIN SHAFT PINS AIR ACTUATOR (BOTH SIDES) MAINTENANCE PINS (BOTH SIDES) ROLLERS/TRACKS/PINS (BOTH SIDES) ROLLERS/TRACKS/PINS (BOTH SIDES) Southworth Products PalletPal 360 Air... -
Page 16: Ordering Replacement Parts
Ordering Replacement Parts Southworth has carefully chosen the components in your unit to be the best available for the purpose. Replacement parts should be identical to the original equipment. Southworth will not be responsible for equipment failures resulting from the use of incorrect replacement parts or from unauthorized modifications to the unit. -
Page 17: Troubleshooting
Check the bearings while rotating. be broken. supporting the turntable. Replace any broken or excessively worn bearings. Wear on the underside of Normal condition cause by No repair necessary. the turntable work hardening of the metal. Southworth Products PalletPal 360 Air... -
Page 18: Warranty & Contact Information
For specific warranty information, contact Southworth Products with the machine’s serial number. Any claim for breach of this warranty must be received in writing by Southworth within the warranty period. Warranties shall not cover failure or defective operation, caused by misuse, misapplication, negligence or accident, exceeding recommended capacities, or any alteration or repair of the item purchased which has not been authorized by Southworth.
