Summary of Contents for Horizon Hobby Axial WRAITH 1.9

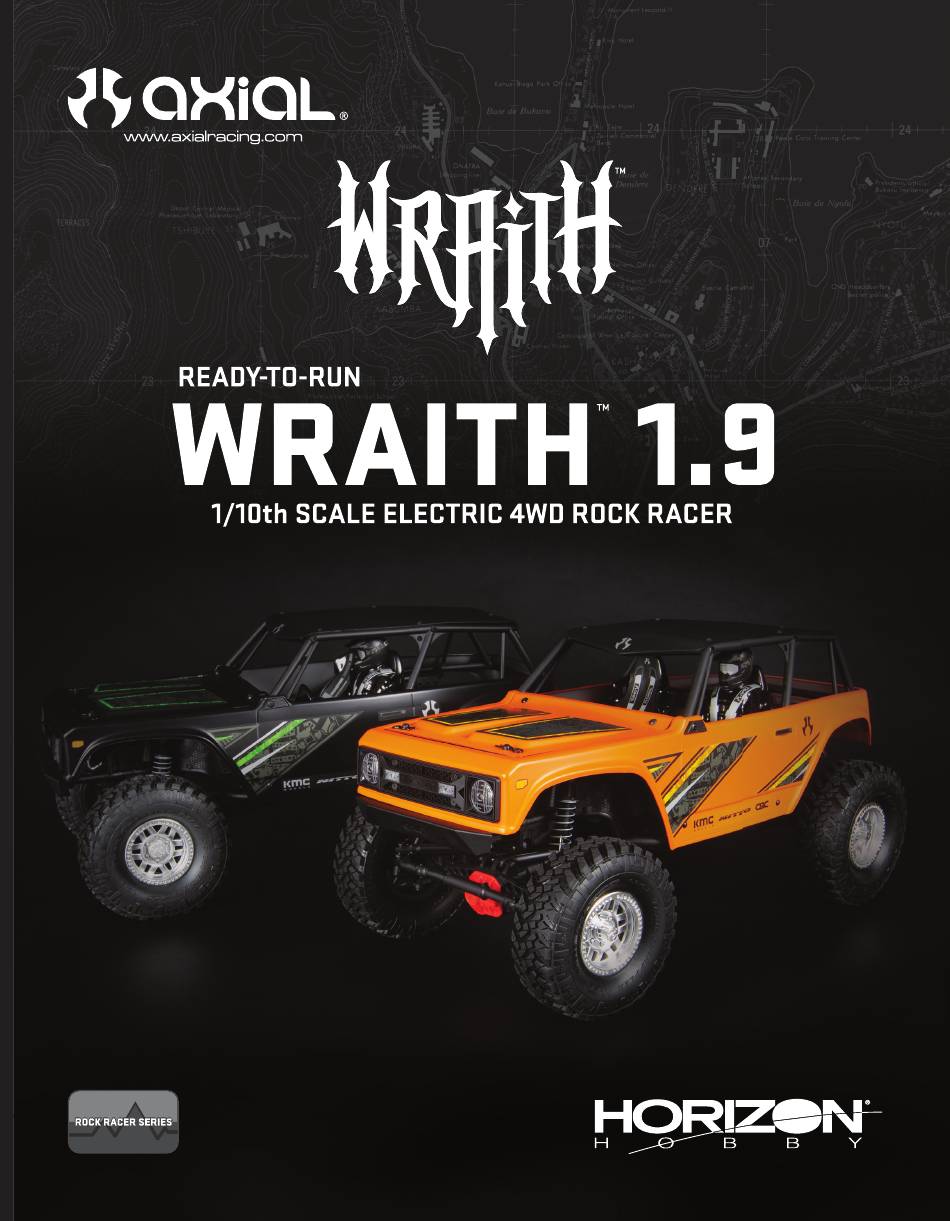

- Page 1 AXI90074-I001 INSTRUCTION MANUAL BEDIENUNGSANLEITUNG MANUEL D’UTILISATION MANUALE DI ISTRUZIONI...
- Page 2 NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, LLC. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. MEANING OF SPECIAL LANGUAGE The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: WARNING: Procedures, which if not properly followed, create the probability of property damage, collateral damage, and serious injury OR create a high probability of superfi...
-
Page 3: Table Of Contents
Electronics ......................61 Adjusting the battery tray ..................10 WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been designed and built with a WET CONDITIONS MAINTENANCE combination of waterproof and water-resistant components to allow you to • Drain any water that has collected in the tires by spinning them at high operate the product in many “wet conditions,”... -
Page 4: Box Contents
BOX CONTENTS ™ ® • Spektrum STX2 2.4GHz Transmitter (SPMSTX200) • Wraith 1.9 RTR - 35T Electric Motor (AX31312) - SRX200 2CH Receiver (SPMSRX200) - TSX45 High-Torque Metal Gear Dual Ball Bearing Servo (TACM0245) - AE-5L ESC w/LED Ports and Lights (DYNS2213) - AE-5L LED Light Set (AX31481) •... -
Page 5: Getting Started Checklist
GETTING STARTED CHECKLIST Read the manual Power on the transmitter Familiarize yourself with the vehicle and its components Install the vehicle battery in the vehicle Check all screws, especially the driveshaft setscrews, for tightness Check for proper function of the throttle and steering from the factory Range check the radio system Charge the vehicle battery... -
Page 6: Charge The Vehicle Battery
CHARGE THE VEHICLE BATTERY Follow the manufacturer’s directions for your charger to properly charge the vehicle battery. CAUTION: Only use chargers designed to charge the chosen battery type. Using an incorrect charger or incorrect charger settings could cause the battery to catch fi re or explode. INSTALL THE TRANSMITTER BATTERIES This transmitter requires 4 AA batteries. -
Page 7: Install The Vehicle Battery
INSTALL THE VEHICLE BATTERY NOTICE: Power to the vehicle is controlled by connecting and disconnecting the battery from the ESC. Always power on the transmitter fi rst before connecting the vehicle battery. Always disconnect the battery from the ESC when not in use. 1. -
Page 8: Binding
BINDING Binding is the process of programming the receiver to recognize the GUID (Globally Unique Identifi er) code of a single specifi c transmitter. The STX2 ® transmitter and SPMSRX200 receiver are bound at the factory. If you need to rebind, follow the instructions below. 1. -
Page 9: Vehicle Maintenance
VEHICLE MAINTENANCE Just like a full size car or truck your RC vehicle must undergo periodic maintenance in order to ensure peak performance. Preventative maintenance will also help avoid needless breakages which could result in costly repairs. Below are some suggestions to properly maintain your vehicle. Replace any Check for wear on Check driveshaft... -
Page 10: Adjusting The Battery Tray
ADJUSTING THE BATTERY TRAY M3x8mm (x4) Adjust the tray to the appropriate size to fi t the vehicle battery. Suitable battery size range: 5.75” x .94-1.2” (147mm x 24-32mm) AE-5L FORWARD/REVERSE ESC WITH DRAG BRAKE Battery Motor Black To Receiver Throttle Channel SETUP ESC SPECIFICATIONS... -
Page 11: Gear Ratios
GEAR RATIOS Spur/Pinion Gear Ration Chart - LCX Transmission 45.50 42.00 39.00 36.40 34.13 32.12 30.33 48.75 45.00 41.79 39.00 36.56 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Batteries are not installed properly in the Ensure the transmitter batteries are properly installed transmitter Weak or no battery in the vehicle Install a freshly charged vehicle battery... -
Page 12: Limited Warranty
(iii) modifi cation of or to any part of the Product, (iv) attempted Product securely using a shipping carton. Please note that original boxes service by anyone other than a Horizon Hobby authorized service center, (v) may be included, but are not designed to withstand the rigors of shipping Product not purchased from an authorized Horizon dealer, or (vi) Product not without additional protection. -
Page 13: Fcc Information
EU COMPLIANCE STATEMENT: Axial Wraith 1.9 (AXI90074) Horizon Hobby, LLC hereby declares that this product is in compliance with the essential requirements and other relevant provisions of the RED and EMC Directives. A copy of the EU Declaration of Conformity is available online at: http://www.horizonhobby.com/content/support-render-compliance. -
Page 14: Parts Reference
PARTS REFERENCE // TEILEREFERENZ // RÉFÉRENCES DES PIÈCES // RIFERIMENTO COMPONENTI AX31381 (x1) AR44 Steering knuckles AR44 Lenkrollen AX80030 (x2) Rotules de direction AR44 61-90mm shock body Fuso a snodo AR44 61-90mm Stoßdämpfergehäuse Corps d’amortisseur 61-90 mm Scocca ammortizzatore 61-90 mm AX31589 (x1) AX80018 (x2) AR44 Differential Covers (red) - Page 15 AX80087 (x1) AX80088 (x1) AXI231001 (x1) Rock buggy main frame Rock buggy main frame Wraith 1.9 lower rails Rock-Buggy-Hauptrahmen Rock-Buggy-Hauptrahmen Wraith 1.9 untere Schienen Châssis principal Rock Buggy Châssis principal Rock Buggy Rails inférieurs Wraith 1.9 Telaio principale Rock buggy Telaio principale Rock buggy Guide inferiori Wraith 1.9 AX80089 (x1)
- Page 16 AX31586 (x2) WB8-HD Standard driveshaft WB8-HD Standard-Antriebswelle Arbre de transmission standard WB8-HD AX31049 (x1) Albero di trasmissione standard WB8-HD Helmet set, black AX31531 (x2) Helm-Set, schwarz LCX Transmission case, silver Ensemble de casque, noir LCX Getriebeabdeckung, silber Set elmetti, nero Boîtier de transmission LCX, argenté...
- Page 17 AX30724 (x2) AX30394 (x1) Pinion gear, 13T, 32P Drive gear, 20T Zahnradgetriebe, 13T, 32P Antriebszahnrad, 20T Engrenage à pignons, 13T, 32P Engrenage d’entraînement, 20T Pignone, 13T, 32P Ingranaggio trasmissione, 20T AX30427 (x4) AX30413 (x1) Narrow 12mm aluminum hub Slipper spring, 8.5 x 12 Schmale Aluminium-Nabe, 12 mm Gleitfeder, 8,5 x 12 Moyeu étroit en aluminium de 12 mm...
- Page 18 AXA013 (x11) AXA1179 (x8) AXA1059 (x2) AXA0286 (x6) AXA1163 (x4) AXA0023 (x2) AX30162 (x1) AXA180 (x4) AX3139 (x8) AX30163 (x4) AXA291 (x1) AX31283 (x4) AXA053 (x4) AX30190 (x1) AXA0109 (x6) AXA054 (x2) AXA1070 (x1) AX31403 (x4) AXA144 (x4) AXA1392 (x8) AXA146 (x8) AXA063 (x4) AXA1045 (x5)
-
Page 19: Exploded Views
EXPLODED VIEWS // EXPLOSIONSZEICHNUNGEN // VUES ÉCLATÉES // VISTE ESPLOSE AXA0286 FRONT AXLE AXA0439 VORDERACHSE AX80018 AX31586 ESSIEU AVANT AX31028 AX31576 ASSALE ANTERIORE AX31148 AX31148 AX80018 AX31586 AXA117 AX31403 AX31148 AXA144 AXA1221 AX31552 AX31381 AXA117 AX80018 AX31576 AX80018 AXA1230 AXA144 AX31586 AX31586 AX31399... - Page 20 TRANSMISSION AX31026 AX31312 GETRIEBE TRANSMISSION AXA291 AXA146 TRASMISSIONE AX31027 AXA1218 AX30394 AX31027 AX31531 AX30724 AXA0109 AX31068 AX30162 AXA1218 AX30190 AX31539 AXA1045 AX31531 AX31068 AX31585 AXA1225 AXA1218 AX31026 AX30435 AX30413 AXA013 AX31585 AX30435 AXA0023 AXA1225 AX31531 CHASSIS AXA438 AX80075 KAROSSERIE AX80088 CHÂSSIS AXA438 AXA436...
- Page 21 CHASSIS KAROSSERIE CHÂSSIS AXI231002 TELAIO AXA437 AX31083 AXI231001 AX31083 AXI231002 SPMSRX200 DYN2213 AXA436 AXA146 AXA437 AX31571 AXA436 AXA0286 AXI231002 AXA148 AXA114 TACM0245 AXA0109 BODY ASSEMBLY AXA0422 KAROSSERIEMONTAGE ENSEMBLE DE CARROSSERIE AX31049 GRUPPO CARROZZERIA AXA114 AXA114 AXA0422 AXI230001 AXA438 AXA0422 AXA013 AXA053 AXA0422 AXI230001...
- Page 22 WHEELS AND TIRES REIFEN UND RÄDER ROUES ET PNEUS RUOTE E PNEUMATICI AXA1059 AXA180 AX31592 AX30163 AX30427 AXA1059 AXA180 AX30163 AX30427 AX31565 AXI43002 AXA1045 AXI43002 AX8080 AXA1045 AX31565 AX8080 SHOCK ABSORBERS AX31577 STOSSDÄMPFER AXA1163 AMORTISSEURS AMMORTIZZATORI AX31576 AX80030 AXA013 AX31577 AXA1392 AX30146 AX31576...
-
Page 23: Parts Lists
PARTS LISTS // TEILELISTEN // LISTE DES PIÈCES // ELENCO COMPONENTI Part # Description Beschreibung Description Descrizione AX30146 Shock Shaft 3x50 (2pcs) Kolbenstange, 3x50 (2 Stck.) Bras d’amortisseur 3x50 (2 pièces) Albero ammortizzatore 3x50 (2 pz) AX30162 Pin 1.5x8mm (6pcs.) Stift 1,5 x 8 mm (6 Stck.) Goupille 1,5x8 mm (6 pièces) Perno 1,5 x 8 mm (6 pz) - Page 24 Part # Description Beschreibung Description Descrizione AX80010 Gear Set Getriebesatz Ensemble de train Set ingranaggi AX80018 Hardware Parts Tree Hardware-Teilebaum Arbre des pièces de quincaillerie Set bulloneria AX80030 61-90 Schock Body Set 61-90 Stoßdämpferset Ensemble de corps d’amortisseur 61-90 Set scocca ammortizzatore 61-90 AX80075 Wraith Tube Frame Top Wraith Rohrgestell oben...
-
Page 25: Electronics
Part # Description Beschreibung Description Descrizione M3x12mm Hex Socket Tapping Button M 3 x 12 mm Sechskant-Rundkopf- Douille à six pans à tête bombée Viti autofi lettanti a testa tonda con esagono AXA436 Head (Black) (10pcs) Blechschraube (schwarz) (10 Stck.) autotaraudeuse M3x12 mm (Noir) (10 pièces) incassato M3 x 12 mm (nero) (10 pz) M3x18mm Hex Socket Tapping Button... - Page 26 | fl ickr.com/axialrc ©2019 Horizon Hobby, LLC. Axial, the Axial logo, Wraith, DSM, STX2, IC3 and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. Nitto ®...
