INSTRUCTION MANUAL
MANUEL D'UTILISATION
MANUAL DE INSTRUCCIONES
778229
Created 05/24

Advertisement

Table of Contents
loading
Need help?

Need help?

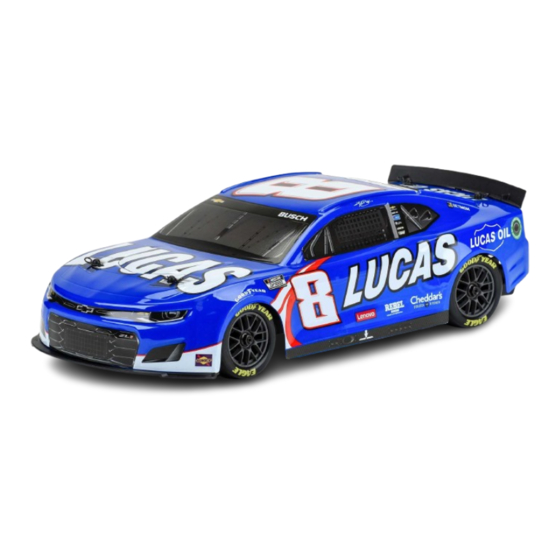

Do you have a question about the Lozi NASCAR AWD RC Racecar and is the answer not in the manual?

Questions and answers

Summary of Contents for Horizon Hobby Lozi NASCAR AWD RC Racecar

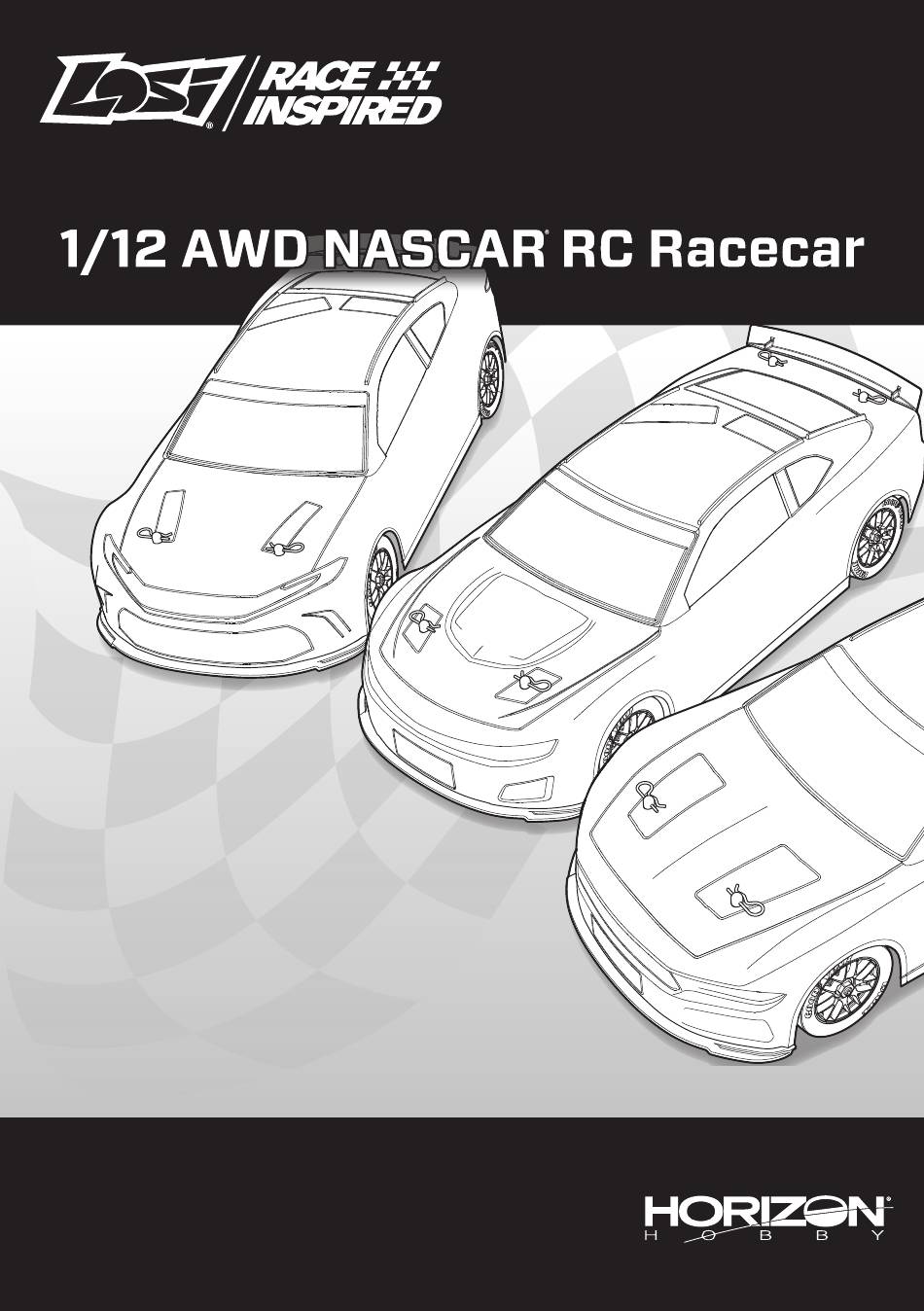

  • Page 1 INSTRUCTION MANUAL MANUEL D’UTILISATION MANUAL DE INSTRUCCIONES 778229 Created 05/24...
  • Page 2 Do not use with incompatible components or alter this product in any way outside of the instructions provided by Horizon Hobby, LLC. This manual contains instructions for safety, operation and maintenance. It is essential to read and follow all the instructions and warnings in the manual, prior to assembly, setup or use, in order to operate correctly and avoid damage or serious injury.
  • Page 3: Table Of Contents

    • USB-C Charging Adapter • 4 AA Alkaline Batteries WATER-RESISTANT VEHICLE WITH WATERPROOF ELECTRONICS Your new Horizon Hobby vehicle has been the “Wet Conditions Maintenance” section below designed and built with a combination of must be performed regularly if you choose to run waterproof and water-resistant components to in wet conditions.
  • Page 4 • Most transmitters are not water-resistant. • Remove the battery pack(s) and dry the Consult your transmitter’s manual or the contacts. If you have an air compressor or a can manufacturer before operation. of compressed air, blow out any water that may be inside the recessed connector housing.
  • Page 5: Getting Started

    GETTING STARTED 1. CHARGE THE VEHICLE BATTERY 4. POWER ON 2. INSTALL THE TRANSMITTER BATTERIES NOTICE: ALWAYS power on the transmitter before you power on the vehicle. 5. CHECK THE CONTROLS 3. INSTALL THE VEHICLE BATTERY 6. HAVE FUN!
  • Page 6: General Charging Warnings

    • Always inspect the battery before charging. which can lead to user injury or property • Always keep the battery away from any material damage. Please contact Horizon Hobby or an that could be affected by heat. authorized retailer with compatibility questions.
  • Page 7: Operating The Charger

    OPERATING THE CHARGER CHARGER SPECIFICATIONS USB C Power Input Output Port Connector Power Supply Input Voltage DC 5.0V (3.0A (not included) Max) Battery Lead Charge Current 1-8.4V (1.5A Max) Supported Battery Type Smart G2 LiPo 2S Related Battery Capacity 500–5300mAh Charge Port (Max.) Display...
  • Page 8: Transmitter Functions

    TRANSMITTER FUNCTIONS 1. Steering Wheel Controls direction (left/right) of the model 2. Throttle Trigger Controls speed and direction (forward/brake/reverse) of the model 3. Power Button Turns the power on/off 4. Steering (ST-R) Servo Reversing Reverses the steering channel 5. Throttle Limit Limits throttle output to 50/75/100% Select 50% or 75% for less experienced drivers or when you are driving the vehicle in...
  • Page 9: Install The Vehicle Battery

    INSTALL THE VEHICLE BATTERY 4. Install the battery in the tray on the chassis. NOTICE: ALWAYS power on the transmitter before 5. Secure the battery with the hook and loop strap. you power on the vehicle. 6. Connect the battery lead to the vehicle power 1.
  • Page 10: Control Test

    CONTROL TEST With the vehicle wheels off the ground, test the throttle and steering controls. Ensure the wheels spin in the proper direction and the front wheels turn in the proper direction with steering input. After checking for proper direction of controls, place the vehicle on a smooth surface and start driving slowly.
  • Page 11: Driving Precautions

    DRIVING PRECAUTIONS • Maintain sight of the vehicle at all times. • Do not apply the throttle in forward or reverse if the vehicle is stuck. Applying throttle in this • Inspect the vehicle for loose wheel hardware. instance can damage the motor or ESC. •...
  • Page 12: Tire Rotation

    TIRE ROTATION To improve the handling and extend the lifespan of the tires, the tires should be rotated approximately every 4 battery runs, particularly if you are racing on a paved oval for extended periods. To rotate the tires: 1. Using a 7mm hex driver, remove the wheel nut.
  • Page 13 Problem Possible Cause Solution Batteries are not installed Ensure the transmitter batteries are properly in the transmitter properly installed Weak or no battery in the Install a freshly charged vehicle vehicle battery Vehicle does not move Damaged motor Replace the motor Frayed or broken wiring Replace any damaged wiring ESC is shut down by heat...
  • Page 14: Limited Warranty

    Product, (iv) attempted service by anyone other liability of Horizon exceed the individual price of the than a Horizon Hobby authorized service center, (v) Product on which liability is asserted. As Horizon has Product not purchased from an authorized Horizon...
  • Page 15: Warranty And Service Contact Information

    If you have any issue with a Li-Po battery, please will be discarded. contact the appropriate Horizon Product Support 10/15 office. WARRANTY AND SERVICE CONTACT INFORMATION Country of Horizon Hobby Contact Information Address Purchase Horizon Service Center servicecenter.horizonhobby. (Repairs and Repair Requests)
  • Page 16: Fcc Information

    • Consult the dealer or an experienced radio/TV found to comply with the limits for a Class B technician for help. digital device, pursuant to part 15 of the FCC Horizon Hobby, LLC Rules. These limits are designed to provide 2904 Research Rd., reasonable protection against harmful Champaign, IL 61822 interference in a residential installation.
  • Page 17: Replacement Parts List

    REPLACEMENT PARTS LIST Part # Description Part # Description 28T 380 Sized Brushed Motor: Pinion Gear 19T MOD 0.5 CNC LOS-1907 ARA311205 GROM 2.3mm Bore Goodyear Eagle Mounted Tires, ARA311226 CVD Driveshaft 44mm (2pcs) LOS-1914 Medium (4): NG ARA311227 Dogbone 40.5mm (2pcs) LOS-1915 Rear Diffuser: NASCAR GROM Wheel Axle and Hub Set B -...
  • Page 18: Optional Parts List

    2.3mm Bore Toyota Clear Body: NASCAR LOS-1918 GROM Pinion Gear 20T MOD 0.5 CNC ARA311206 2.3mm Bore McDowell #34 Horizon Hobby LOS-1922 2024 Body: NASCAR GROM Pinion Gear 21T MOD 0.5 CNC ARA311207 2.3mm Bore Adjustable Camber & Steering LOS-1923 Link Set: GROM Pinion Gear 22T MOD 0.5 CNC...
  • Page 19: Exploded Views

    EXPLODED VIEWS // VUES ÉCLATÉES // VISTAS EXPLOSIONADAS CHASSIS | LOS216001 LOS216001 CHÂSSIS | CHASIS LOS-1928 LOS-1928 ARA702010 ARA702010 LOS-1928 ARA702011 ARA702011 LOS-1928 ARA702011 LOS-1919 ARA702010 ARA702010 LOS-1932 SPMSSX110 ARA702010 LOS-1932 (Optional: ARA320744) ARA330804 ARA311205 ARA702017 ARA702011 ARA702012 ARA724304 LOS-1920 ARA702010 LOS-1927 LOS-1907...
  • Page 20 SUSPENSION | SUSPENSION | SUSPENSIÓN ARA702010 ARA702011 LOS-1915 LOS-1927 (Optional: LOS-1923) ARA702016 ARA320750 ARA702019 LOS-1927 (Optional: LOS-1923) ARA702019 ARA311227 ARA330804 ARA330840 ARA702011 ARA320750 ARA702013 ARA311181 ARA320750 ARA311229 (CVD Driveshaft Set: ARA311226) ARA610053 ARA311181 ARA702017 ARA311229 ARA330841 (Optional: LOS-1929) ARA330841 ARA610053 ARA702011 ARA320750 ARA330803...
  • Page 21 SHOCKS AND BODIES | AMORTISSEURS ET CARROSSERIES | AMORTIGUADORES Y CARROCERÍAS LOS-1936 (Optional: LOS-1931) LOS-1934 LOS-1917 Ford Clear Body LOS-1909 Blaney #12 2024 LOS-1922 McDowell #34 2024 LOS-1934 ARA70201 LOS-1918 Toyota Clear Body LOS-1908 Truex Jr #19 2024 Optional: LOS-1933 LOS-1938 Chevy Clear Body LOS-1911 Elliot #9 2024 LOS-1925 Larson #5 2024...
  • Page 22 © 2024 Horizon Hobby, LLC. Losi, IC2, and the Horizon Hobby logo are trademarks or registered trademarks of Horizon Hobby, LLC. The Spektrum trademark is used with permission of Bachmann Industries, Inc. NASCAR is a registered trademark of the National ®...
