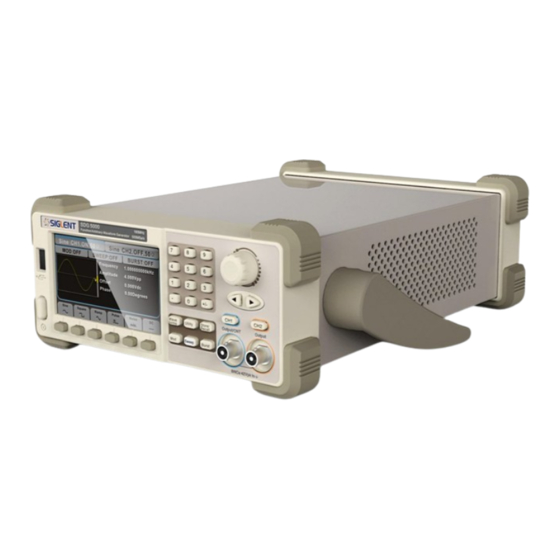

SIGLENT SDG5000 Series Quick Start Manual

Function/arbitrary waveform generator

Hide thumbs Also See for SDG5000 Series:

User manual (229 pages)

Service manual (73 pages)

Programming manual (83 pages)

Table Of Contents

Quick Links

Quick Start

SDG5000 Series

Function/Arbitrary Waveform Generator

QS02050-E02A

2014 SIGLENT TECHNOLOGIES CO., LTD

Table of Contents

Need help?

Do you have a question about the SDG5000 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for SIGLENT SDG5000 Series

Page 1: Quick Start

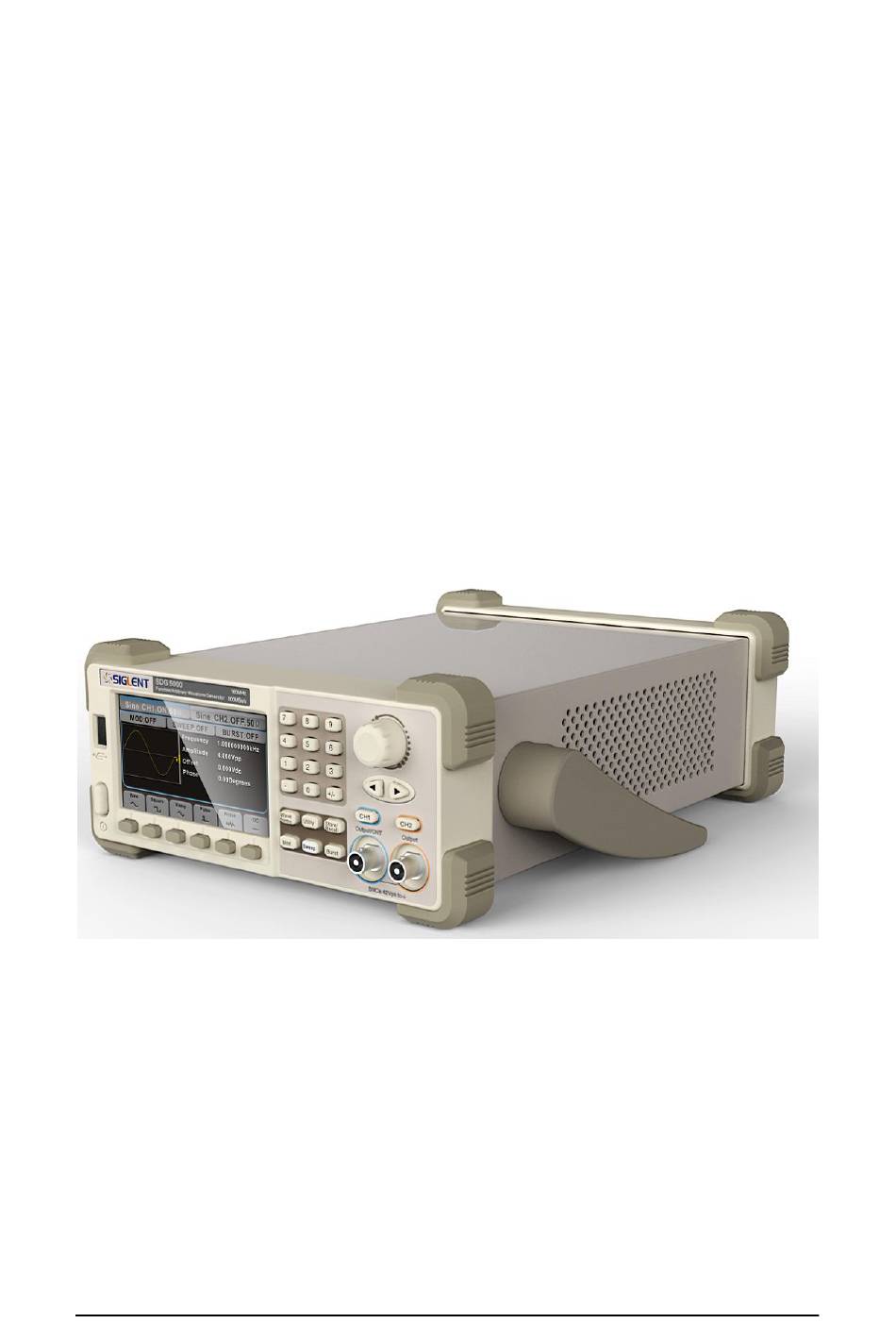

Quick Start SDG5000 Series Function/Arbitrary Waveform Generator QS02050-E02A 2014 SIGLENT TECHNOLOGIES CO., LTD...
Page 2 SIGLENT TECHNOLOGIES CO., LTD. All rights reserved. ● Information in this publication replaces all previous corresponding material ● SIGLENT reserves the rights to change the specification and the price. ● Without permission, Contents in this manual are not allowed to be copied, extracted or translated.
Page 3: General Safety Summary
SIGLENT General Safety Summary Carefully read the following safety precautions to avoid any personal injuries or damages to the instrument and any products connected to it. To avoid potential hazards, please use the instrument as specified. Only the qualified technician can service the instrument.
Page 4 SIGLENT Safety Terms and Symbols Terms used on the instrument. Terms may appear on the instrument: DANGER: Indicates an injury or hazard that may immediately happen. WARNING: Indicates an injury or hazard that may not immediately happen. CAUTION: Indicates that a potential damage to the instrument or other property might occur.
Page 5: Table Of Contents
SIGLENT Content General Safety Summary ..............II Adjust the Handle ................1 The Front Panel ................2 The Back Panel ................9 User Interface ................. 11 In-line Help System ................ 14 Contact SIGLENT ................15 IV SDG5000 Quick Start...
Page 6: Adjust The Handle
SIGLENT Adjust the Handle When using the instrument,users can adjust the handle to a needed position which make it easier to operate and observe. Adjust the Handle Carrying Position Horizontal Position SDG5000 Quick Start 1...
Page 7: The Front Panel
SIGLENT The Front Panel The picture below shows SDG5162 front panel composition: 3. LCD Display 5. Number Keys 6. Knob 2. USB 7. Arrow Host Keys 10. Mode/Utility Function Keys 1. Power Key 11. Menu Keys 8. CH1 Control/Output Port 4.
Page 8 SIGLENT 3. LCD Display SDG5162 has a 4.3inch’TFT-LCD display, which can display current function menu, parameter settings, system state, promptings and so forth. 4. Waveform Option Waveforms ----Sine Provide sine waveform output which ranges from 1μHz to 160MHz. The key backlight will brighten when the key is selected.
Page 9 SIGLENT Waveforms ----Ramp Provide ramp waveform output which ranges from 1μHz to 4MHz. The key backlight will be brighten when the key is selected..  The “Frequency/Period”, “Amplitude/High level”, “Offset/Low  level”, “Phase” and “Symmetry” of the ramp waveform can be adjusted.
Page 10 SIGLENT Waveforms ---- Arb Provide arbitrary waveform output which ranges from 1μHz to 40MHz It can output 36 kinds of waveforms: Cardiac, Gauspuls,  ExpRise and ExpFall Etc. Besides, it can output the arbitrary waveforms in the U disk. Users can edit arbitrary waveform through EasyWave and ...
Page 11 SIGLENT 7. Arrow Keys When using knob to set parameters, it is used to switch the place of numerical value. When inputting a file name, it is used to move the position of cursor. When saving or reading files, it is used to choose a position to save a file or choose a file to be read.
Page 12 SIGLENT 10. Mode/Utility Function Keys Mod -----Modulate This key is used to output modulated waveforms and provide several kinds of mode modulate and digital modulate manners. It generates AM, DSB-AM,FM, PM, ASK, FSK and PWM modulated signals. It supports “Internal” and “External” modulate source.
Page 13 SIGLENT modes. Noises can also be used to generate gating burst.  It supports “Internal”, “External” and “Manual” 3 kinds of  trigger source. The key backlight will be brighten when the key is selected.  Parameter ------Parameter To set parameters，users can switch directly to the interface The key backlight will be brighten when the key is selected.
Page 14: The Back Panel
SIGLENT The Back Panel 1. Synchronization Output Port When the synchronization is on, the port can output TTL signal with the same frequency. 2. 10MHz Clock Input Port If the instrument uses external clock source, the connector accepts an external 10MHz clock source.
Page 15 SIGLENT 4. AC Power Supply Input SDG5162 can input two different kinds of specification AC power supply. AC power: 100—240V, 45—66Hz or 100—127V, 45—440Hz; Fuse: 1.25A, 250V 5. USB Device Connect the instrument to a computer through the port, and use software EasyWave to control the SDG5162.
Page 16: User Interface
SIGLENT User Interface SDG5162 can only display parameters and waveform of a channel. The picture below shows the interface when CH1 choosing sine waveform. The interface will have some difference when current function is different. 1. Channel States CH1 and CH2 display area which shows the current channel of...
Page 17 SIGLENT 2. Waveform Display Area It shows each channel of the currently selected waveform 3. Frequency It shows each channel’s current waveform’s frequency. After press corresponding Frequency menu, use number keys or knob to change the parameter value. 4. Amplitude It shows each channel’s current waveform’s amplitude.
Page 18 SIGLENT 8. Output It shows each channel’s output state. 9. Menu It shows the corresponding operation menu of the current function which is being chosen. For example: the picture above shows the function menu of “Sine” waveform. SDG5000 Quick Start 13...
Page 19: In-Line Help System
SIGLENT Using Built-In Help System To obtain build-in help information of the product, please press Utility key first, and then press the help softkey,use arrow keys to choose the help item you want, finally press Select to obtain help information.
Page 20: Contact Siglent
SIGLENT Contact SIGLENT SIGLENT TECHNOLOGIES CO., LTD Address: 3/F, NO.4 building, Antongda Industrial Zone, 3rd Liuxian Road, 68th District ,Baoan District, Shenzhen, P.R. China Tel: +86- 755 -36615186 E-mail: sales@siglent.com Website: www.siglent.com SDG5000 Quick Start 15...
