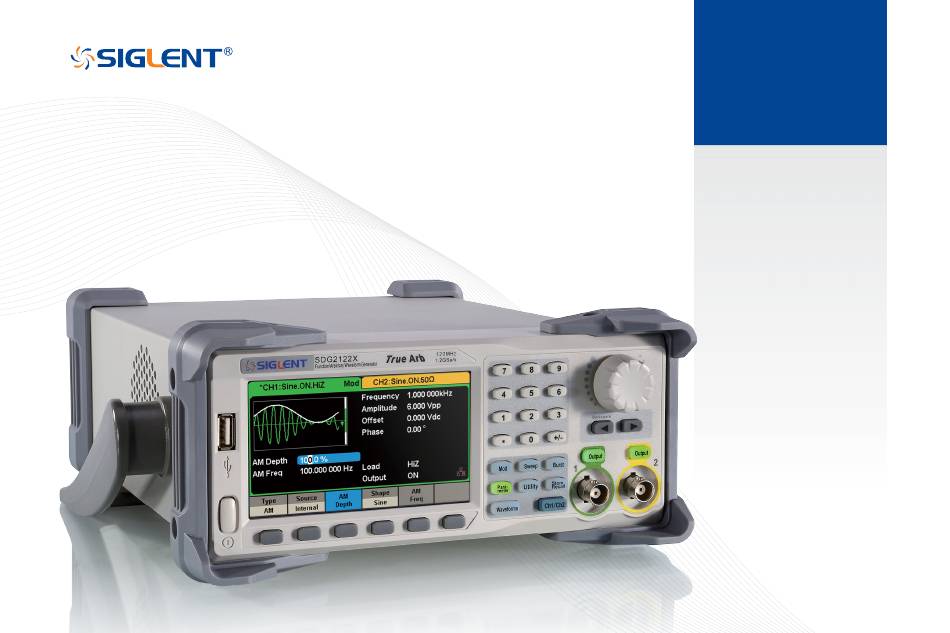

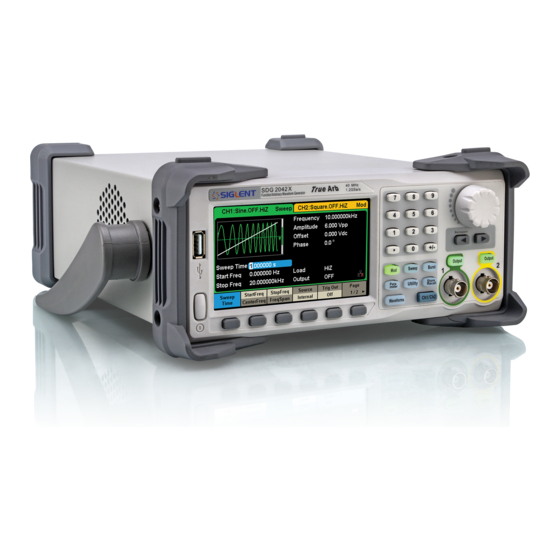

- Page 1 SDG2000X Series Function/Arbitrary Waveform Generator Quick Start...
-
Page 2: Copyright
SIGLENT TECHNOLOGIES CO., LTD. All rights reserved. Information in this publication replaces all previous corresponding material. SIGLENT reserves the rights to change the specifications and the price. Without permission, contents in this manual are not allowed to be copied, extracted or translated. - Page 3 General Safety Summary Carefully read the following safety precautions to avoid any personal injuries or damages to the instrument and any product connected to it. To avoid potential hazards, please use the instrument as specified. Only the qualified technician can service the instrument. Avoid fire or personal Injure.
-
Page 4: Table Of Contents
Content Copyright.............. General Safety Summary........Adjust the Handle..........The Front Panel............ The Rear Panel............ Touch Screen Display........... Use Built-In Help System........Introduction of EasyWaveX........Contact SIGLENT..........1-SDG2000X Quick Start... -
Page 5: Adjust The Handle
Adjust the Handle When using the instrument, users can adjust the handle to a needed position which makes it easier to operate and observe. Carrying Position Horizontal Position Figure 1 Adjust the Handle SDG2000X Quick Start-2... -
Page 6: The Front Panel
The Front Panel 1. Power Key 2. USB Host 3. Touch Screen Display 4. Numeric Keyboard 5. Knob 6. Arrow Keys 7. CH1/CH2 Control/ Output Port 8. Channel Select Key 9. Function Keys 10. Waveform Option 11. Menu Keys Figure 2 SDG2000X Front Panel 3-SDG2000X Quick Start... - Page 7 1.Power Key This key is used to turn on/off the SDG2000X. When the power key is off, SDG2000X is in the power off state. 2.USB Host SDG2000X supports U-Disk using FAT format. It’s used to read waveforms or state files from a U-Disk or store the current state of the instrument to the U-Disk. Users can update the firmware through U-Disk.
- Page 8 7.Channel Control Area CH1 Control/Output Key The Output key on the left is used to turn on/off CH1 output. The nominal output impedance of the BNC connector is 50Ω. When pressing Output (the key backlight turns on), the connector outputs waveform according to the current configuration of CH1. CH2 Control/Output Key The Output key on the right is used to turn on/off CH2 output.
- Page 9 9.Function Keys Mod ----Modulation This key is used to enable the modulation screen and allow for several types of modulation. It generates AM, DSB-AM, FM, PM, ASK, FSK and PWM modulated signals. •It supports “Internal” and “External” modulation sources. •The corresponding key backlight will turn on when this function is selected. Sweep ----Sweep This key is used to generate sweeping frequency signals of Sine, Square, Ramp and Arbitrary.
- Page 10 Utility ----Utility Functions and System Settings This key is used to set system parameters and check version information. •Press this key and then press the help softkey to obtain built-in help information about the product. •The corresponding key backlight will turn on when this function is selected. Store/Recall ----Store and Recall Through this key, users can store/recall the instrument’s state or arbitrary waveform data edited by users.
- Page 11 Waveforms ---- Ramp Provide ramp waveform output which ranges from 1μHz to 1MHz. •The backlight of Waveforms will turn on when this function is selected. •“Frequency/Period”, “Amplitude/High level”, “Offset/Low level”, “Phase” and “Symmetry” of the ramp waveform can be adjusted. Waveforms ---- Pulse Provide pulse waveform output which ranges from 1μHz to 25MHz.
-
Page 12: The Rear Panel
The Rear Panel Figure 3 SDG2000X Rear Panel 9-SDG2000X Quick Start... - Page 13 1.Counter BNC connector. The input impedance is 1MΩ. This connector is used to accept the signal measured by the frequency counter. 2.Aux In/Out BNC connector. The function of this connector is determined by the current work mode of the instrument. •Sweep/Burst trigger signal input port of external trigger.
- Page 14 5.AC Power Supply Input SDG2000X can accept two different types of AC input power. AC power: 100-240V, 50/60Hz or 100-120V, 400Hz Fuse: 1.25A, 250V 6.USB Device Used when connecting the instrument to an external computer to allow waveform editing (such as EasyWaveX) and remote control. 7.LAN Interface Through this interface, the generator can be connected to your computer or network for remote control.
-
Page 15: Touch Screen Display
Touch Screen Display SDG2000X can only display parameters and waveform of one channel at a time. The picture below shows the interface when CH1 chooses AM modulation of sine waveform. The information displayed may vary depending on the function selected. The entire screen of the SDG2000X is a touch screen. - Page 16 2.Channel Status Bar Indicates the selected status and output configuration of the channels. Touch this area of the screen to switch to the corresponding channel. If you touch again, the shortcut menus of function keys will be recalled: Mod、Sweep、Burst、Parameter、Utility and Store/Recall. 3.Basic Waveform Parameters Area Shows the current waveform’s parameters of each channel.
-
Page 17: Use Built-In Help System
Use Built-In Help System To obtain built-in help information of the product, please press Utility key first, then press Page 1/2 and Help, use the knob to choose the help item you want, finally press Select to obtain help information. The common help information is listed as the following: 1.System information. -
Page 18: Introduction Of Easywavex
Introduction of EasyWaveX The SDG2000X series includes arbitrary waveform editing software called EasyWaveX. This software is a platform for easily creating, editing, and transferring waveforms to the generator. It provides 11 standard waveforms such as Sine, Square, Ramp, Pulse, Noise and DC, which meets most engineers’ basic needs. In addition, it provides several ways of manual drawing, point-to-point line drawing and arbitrary point drawing. -
Page 19: Contact Siglent
Contact SIGLENT Headquarters: SIGLENT Technologies Co., Ltd Add: Bldg No.4 & No.5, Antongda Industrial Zone, 3rd Liuxian Road, Bao'an District, Shenzhen, 518101, China Tel: + 86 755 3688 7876 Fax: + 86 755 3359 1582 Email: sales@siglent.com Website: int.siglent.com USA:... - Page 20 www.siglent.com...
