Adjustable Dough Roller
Models BE-IT-0337, 0400
Item 40639, 40640
Instruction Manual
Revised - 12/06/2019
Toll Free: 1-800-465-0234
Fax: 905-607-0234
Email: service@omcan.com
www.omcan.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BE-IT-0337 and is the answer not in the manual?

Questions and answers

Related Manuals for Omcan BE-IT-0337

Summary of Contents for Omcan BE-IT-0337

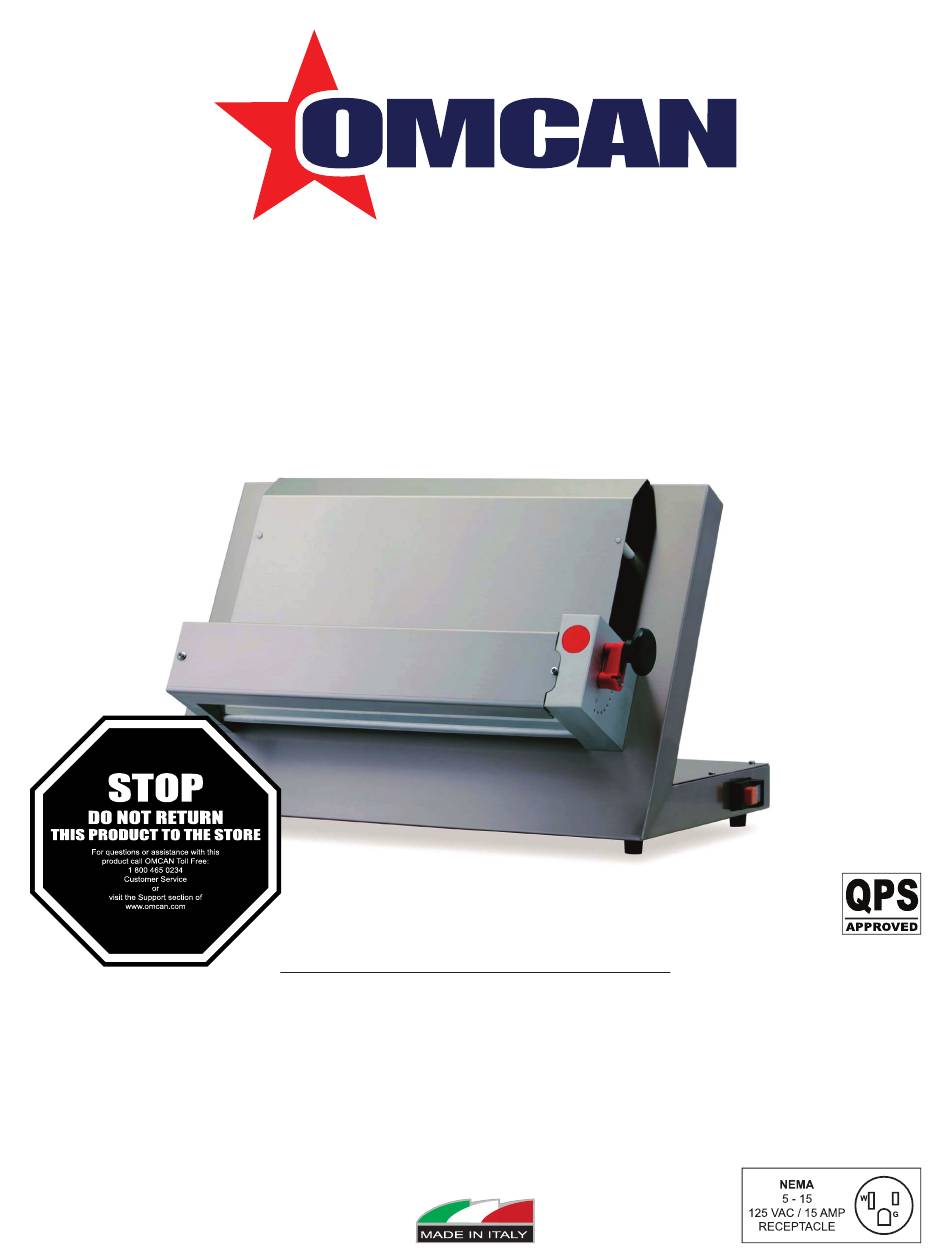

  • Page 1 Adjustable Dough Roller Models BE-IT-0337, 0400 Item 40639, 40640 Instruction Manual Revised - 12/06/2019 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...

  • Page 2: Table Of Contents

    Table of Contents Model BE-IT-0337 / Model BE-IT-0400 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 7 Technical Specifications -------------------------------------------------------------------------- 7 Operation ----------------------------------------------------------------------------------------- 7 - 9 Maintenance --------------------------------------------------------------------------------- 10 - 11 Parts Breakdown ---------------------------------------------------------------------------- 12 - 15...

  • Page 3: General Information

    If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents.

  • Page 4: Safety And Warranty

    Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia.
  • Page 5 Safety and Warranty Shipping and labour costs are not included in the warranty. In order to make use of the legal warranty the user must strictly observe the instructions contained in this manual, as outlined in Directive 1999/44/CE, and more specifically: •...
  • Page 6 1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. At 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.

  • Page 7: Technical Specifications

    Safety and Warranty DO NOT DISCARD ANY PACKAGING MATERIALS IN THE ENVIRONMENT! Technical Specifications MAIN TECHNICAL PARAMETERS Model BE-IT-0337 BE-IT-0400 Dough Weight 2.8 - 14.1 oz. / 80 - 400g 7.4 - 21.2 oz. / 210-600g Pizza Diameter 5.5” - 13.4” / 140 - 340mm 10.2”...

  • Page 8: Operation

    Operation OVEN INSTALLATION’S LOCATION The picture below shows the minimum distances that must be respected when positioning the machine in order to facilitate its use, cleaning and maintenance. The minimum distance between the machine and surrounding walls or other devices must be of approximately 50 cm.
  • Page 9 Operation MACHINE START UP AND USE CONTROL BOARD DESCRIPTION Our rolling machines are provided with an electronic start/stop circuit board with control treadle (except for RM32AE, RM42AE, RM42TAE and M35 models, which do not have a treadle). The picture below shows the board’s control buttons. A) START –...

  • Page 10: Maintenance

    Maintenance MAINTENANCE AND CLEANING SAFETY PRECAUTIONS • Before performing any maintenance operations take the following precautions: • Ensure that the machine is not working and that it has completely cooled down. • Ensure that the machine is disconnected from electricity supply. •...
  • Page 11 For further information about the disposal centres, please contact your local waste management office or your Dealer. REFERENCE Item Number Model Number Description Manufacturer Model Number Dough Roller Adjustable 13.3” Max Roller 40639 BE-IT-0337 M35A Width 110/60/1 M35A cQPSus Dough Roller Adjustable 15.75” Max Roller 40640 BE-IT-0400 M42A Width 110/60/1 M42A cQPSus...

  • Page 12: Parts Breakdown

    Parts Breakdown Model BE-IT-0337 Complete Unit 40639 Model BE-IT-0400 40640...
  • Page 13 Parts Breakdown Model BE-IT-0337 Lower Rolling Unit 40639 Model BE-IT-0400 40640...
  • Page 14 Parts Breakdown Model BE-IT-0337 Complete Unit 40639 Item No. Description Position Item No. Description Position Item No. Description Position Motor 110V-60HZ 0, 25kW-0, 33HP B5 63576 Rear Guard for M35A 63580 63581 Motor Casing Assembly for M35A for M35A KLD-28A Start/Stop Green/Red Button...
  • Page 15 Parts Breakdown Model BE-IT-0400 Complete Unit 40640 Item No. Description Position Item No. Description Position Item No. Description Position RM 42 A Release 2012 Rear Guard Motor 110V-60HZ 0, 37kW-0, 5HP B5 63551 63556 63561 Motor Casing Assembly for M42A for M42A for M42A KLD-28A Start/Stop Green/Red Button...

  • Page 16: Electrical Schematic

    Electrical Schematics Model BE-IT-0337 40639 Model BE-IT-0400 40640...

  • Page 17: Notes

    Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...
  • Page 18 Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________...

  • Page 19: Warranty Registration

    Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté...
  • Page 20 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
