Getting to know your ZOTAC ZBOX nano

Front view

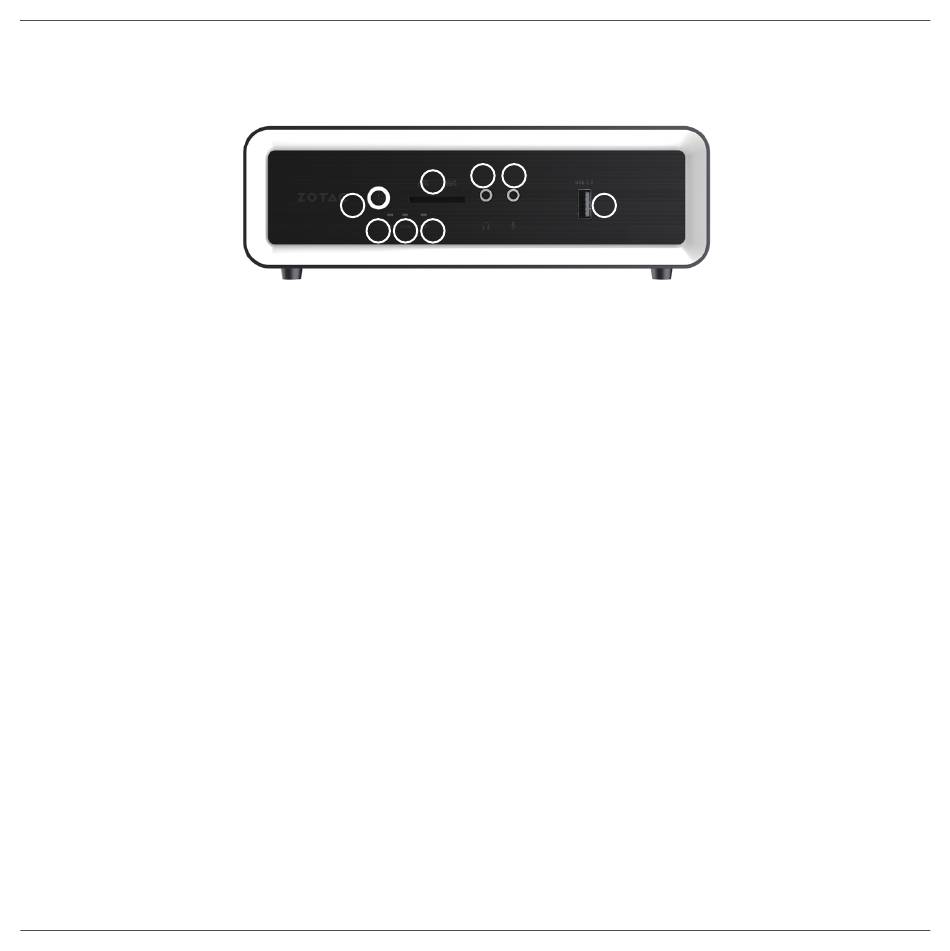

Refer to the diagram below to identify the components on the front of the ZBOX nano
1. Power button
The power button turns the system ON and OFF.
2. Power LED
The Power LED is always ON when power is on.
3. SATA status LED
The SATA LED blinks when data is being written onto or read from the SATA.
4. Wi-Fi status indicator
The Wi-Fi LED is always ON when data is being transfered over Wi-Fi.
5. Memory card reader
The built-in memory card reader reads SD/SDHC/SDXC cards used in devices such as digital
cameras, MP3 players, mobile phones and PDAs.
6. Headphone/Audio Out jack
The stereo headphone jack (3.5mm) is used to connect the system's audio out signal to
amplified speakers or headphones.
7. Microphone jack
The microphone jack is designed to connect a microphone for video conferencing, voice
narrations or simple audio recordings.
8. USB 3.0 port
The USB 3.0 port supports the SuperSpeed USB 3.0 devices and is backwards compatible
with USB 2.0/1.1 devices. Use this port for USB 3.0 devices for maximum performance with
USB 3.0 compatible devices.
6
6 7
5
1
2 3 4
8
