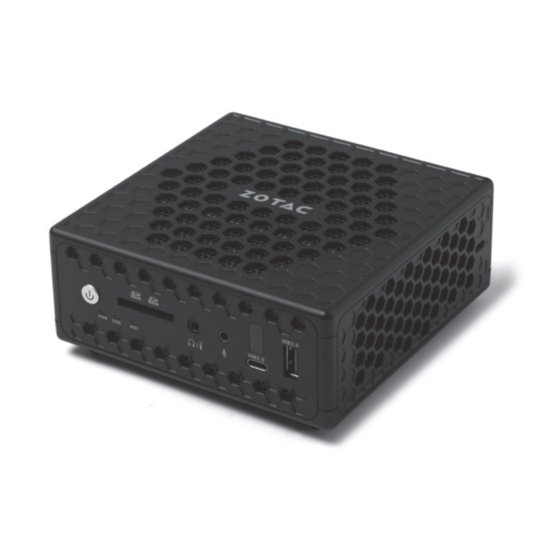

ZOTAC ZBOX nano
ZOTAC ZBOX nano
User's Manual
No part of this manual, including the products and software described in it,
may be reproduced, transmitted, transcribed, stored in a retrieval system,
or translated into any language in any form or by any means, except
documentation kept by the purchaser for backup purposes, without the
express written permission of ZOTAC.
Products and corporate names mentioned in this manual may not be
registered trademarks or copyrights of their respective companies, and are
used for identification purposes only. All trademarks are the property of their
respective owners.
Every effort has been made to ensure that the contents of this manual are
correct and up to date. However, the manufacturer makes no guarantee
regarding the accuracy of its contents, and reserves the right to make
changes without prior notice.
CAUTION:
Risk of explosion if the battery is replaced with an incorrect type. Batteries
should be recycled where possible. Disposal of used batteries must be in
accordance with local environmental regulations.
1

Advertisement

Table of Contents
loading

Related Manuals for Zotac ZBOX nano

Summary of Contents for Zotac ZBOX nano

  • Page 1 ZOTAC. Products and corporate names mentioned in this manual may not be registered trademarks or copyrights of their respective companies, and are used for identification purposes only.

  • Page 2: Table Of Contents

    Connecting a S/PDIF cable ------------------------------------------------------------------ 12 Setting up the ZOTAC ZBOX nano ---------------------------------------------------------- 13 Positioning the ZOTAC ZBOX nano --------------------------------------------------------- 15 Mounting the ZOTAC ZBOX nano to an LCD monitor -------------------------------- 15 Installing drivers and software --------------------------------------------------------------- 17 Installing an operating system -------------------------------------------------------------- 17...

  • Page 3: Product Specifications

    ZOTAC ZBOX nano Product specifications Processor • Intel Processor 2961Y (dual core, 1.1 GHz) Onboard graphics • Intel HD Graphics • HDMI 1.4a (max resolutions: 1920×1200 @60Hz) • DP 1.2 (max resolutions: 2560x1600 @60Hz) Memory support • 2 204-pin DDR3L-1600/1333 SO-DIMM slots •...

  • Page 4: Safety Information

    ZOTAC ZBOX nano Safety information Your ZOTAC ZBOX nano is designed and tested to meet the latest standards of safety for information technology equipment. However, to ensure your safety, it is important that you read the following safety instructions. Setting up your system Read and follow all instructions in the documentation before you operate your system.

  • Page 5: Welcome

    Welcome Congratulations on your purchase of the ZOTAC ZBOX nano mini-PC. The following illustration displays the package contents of your new ZOTAC ZBOX nano. Please contact your retailer If any of the below items are damaged or missed. Package contents •...

  • Page 6: Getting To Know Your Zotac Zbox Nano

    It also supports SPDIF output with the headphone/SPDIF adapter included in the package. The optical SPDIF output enables connecting the ZBOX nano to digital audio receivers and speakers for crystal clear digital audio and surround sound from compatible soundtracks.

  • Page 7: Rear View

    ZOTAC ZBOX nano Rear view Refer to the diagram below to identify the components on this side of the system. 1. Power input (DC19V) The supplied power adapter converts AC power to DC power for use with this jack. Power supplied through this jack supplies power to the mini-PC. To prevent damage to the mini-PC, always use the supplied power adapter.

  • Page 8: Customizing The Zotac Zbox Nano

    ZOTAC ZBOX nano Customizing the ZOTAC ZBOX nano Before installing hardware, please follow the instructions below to remove the cover of your ZOTAC ZBOX nano. 1. Remove the four screws securing the bottom cover into place. 2. Remove the bottom cover.

  • Page 9: Installing A Memory Module

    ZOTAC ZBOX nano Installing a memory module 1. Locate the SO-DIMM memory slot and insert a SO-DIMM memory module into the slot at a 45 degree angle. 2. Gently press down on the memory module until it locks into place by the arms...

  • Page 10: Installing A Hard Disk

    ZOTAC ZBOX nano Installing a hard disk 1. Locate the hard disk bracket, remove the 2 screws, and remove the hard disk bracket as shown in the image below. 2. Install the hard disk bracket onto a 2.5-inch SATA hard disk with 2 screws.
  • Page 11 ZOTAC ZBOX nano 3. Insert the hard disk into the socket and gently slide into the connector. 4. Reinstall the screws for the hard disk bracket.

  • Page 12: Connecting A S/Pdif Cable

    ZOTAC ZBOX nano Connecting a S/PDIF cable 1. Connect the S/PDIF cable to the mini-Optical S/PDIF adapter. 2. Locate the front panel and connect the mini-Optical S/PDIF adapter to the headphone / mini-Optical S/PDIF jack.

  • Page 13: Setting Up The Zotac Zbox Nano

    ZOTAC ZBOX nano Setting up the ZOTAC ZBOX nano Please connect your peripherals before using your ZOTAC ZBOX nano. 1. Connecting to an HDMI display Connect one end of an HDMI cable to the HDMI port on the system rear panel and the other end to a HDMI-compatible display such as an HDTV or monitor.
  • Page 14 Connect the supplied AC adapter to the DC IN jack on the system rear panel and then press the power switch on the front panel to turn on the system. Note: When your ZOTAC ZBOX nano is not in use, unplug the power adapter or switch off the AC outlet to conserve power.

  • Page 15: Positioning The Zotac Zbox Nano

    ZOTAC ZBOX nano Positioning the ZOTAC ZBOX nano • Do not position the ZOTAC ZBOX nano where the ventilation holes are covered. To guarantee proper use, leave 4 inches (10 cm) of spacing in front of the ventilation holes. • ZOTAC ZBOX nano mini-PC systems provide ample connectivity in a tiny form factor, please choose connectors and cables in appropriate sizes to avoid interference.
  • Page 16 ZOTAC ZBOX nano Connect the ZOTAC ZBOX nano to your LCD monitor with an HDMI/DP cable.

  • Page 17: Installing Drivers And Software

    Install system drivers to gain full functionality of the ZOTAC ZBOX nano hardware and features. Installing system drivers Before you can use the full features of the ZOTAC ZBOX nano, the system drivers must be installed. The following types of operating systems are supported by the ZOTAC ZBOX nano driver DVD: •...

  • Page 18: Using Your Zotac Zbox Nano

    Select the driver you want to install. The driver installer should launch. Follow the onscreen instructions to install the drivers. Restart the system. Using your ZOTAC ZBOX nano Configuring wireless connection Please follow the instructions below to connect to a wireless network: Double-click the crossed wireless network icon (pic) in the notification area.

  • Page 19: Using A Dynamic Ip (Pppoe Connection)

    Note: Contact your internet Service Provider (ISP) if you have problems connecting to the network. Configuring audio output via an HDMI device Follow the steps below to enable audio output via HDMI when connecting the ZOTAC ZBOX nano to a TV or receiver via HDMI. Access the Sound settings via the system Control Panel.
  • Page 20 ZOTAC ZBOX nano 291-MB246-03...
