Connecting the ASCII Terminal to the Campus Unit

To connect the Campus-REX RS Interface Card to an ASCII terminal:
1 Plug the console adapter into the standard 9-pin COM port on the ASCII
terminal and tighten the attached screws until they are snug. Skip this
step if the ASCII terminal provides an RJ-48 jack.

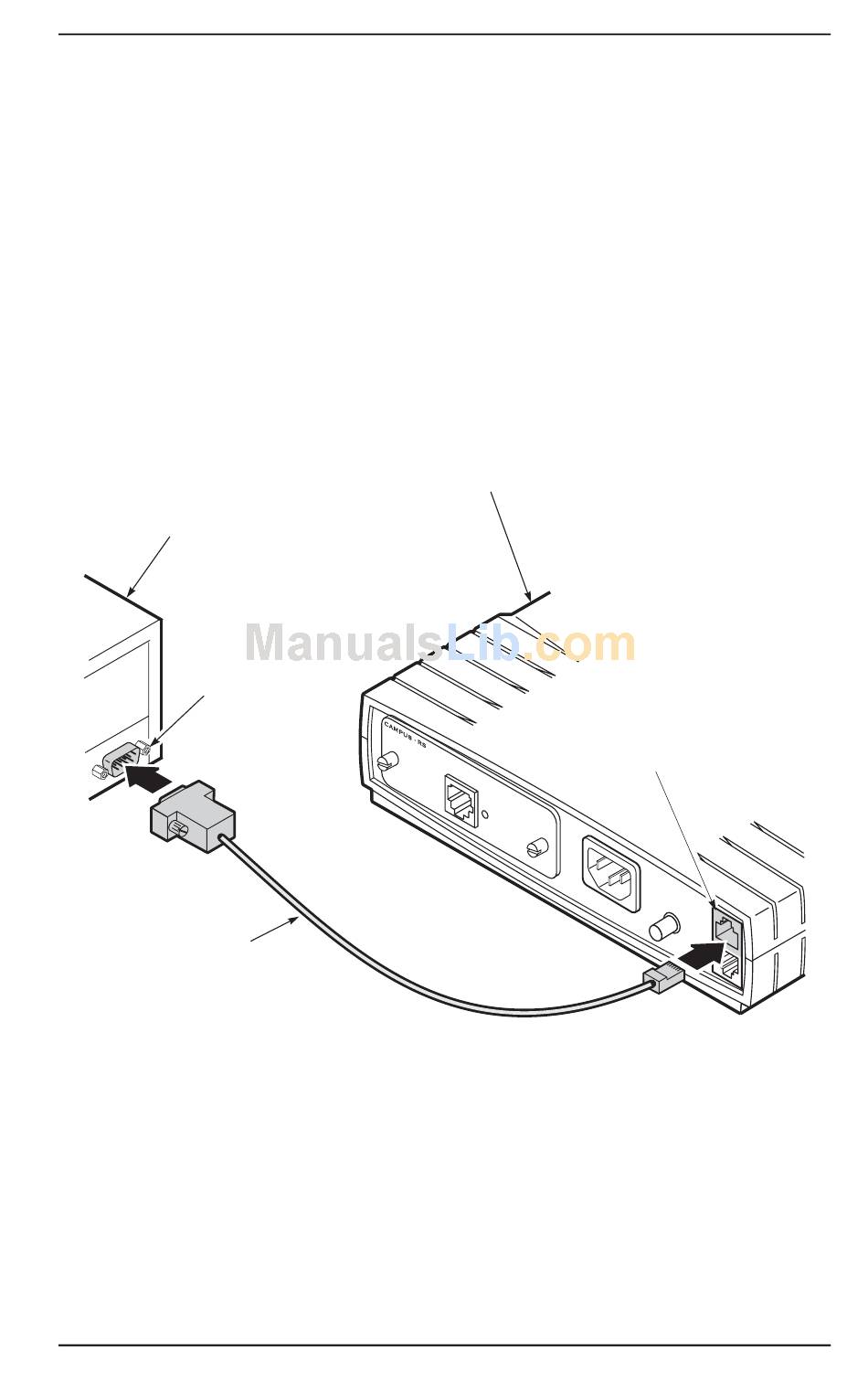

2 Plug one end of the console cable into the console adapter, then do one
of the following:
•
Plug the other end of the console cable into the console port on the

Desktop Unit.

ASCII terminal
9-pin COM
port
Cable
Campus-REX RS Interface Card User Manual
Campus desktop chassis
E T
H E
1 0
Set Up the Campus-REX System
Console port
R N
E T
B R
B a
I D
s e G E
T
L I N
K
1 2
0 V
o r
A C
2 2
0 V @
6 0
A C
. 2 A
H z
@
5 0
M a
x
H z
3-3
