HoldPeak 6205 Operation Manual

6000 COUNTS DOUBLE OPEN JAW
DC/AC TRUE-RMS CLAMP MULTIMETER
OPERATION MANUAL
1. Overview
The auto range & auto power off clamp multimeter is characterized at double
open jaw, portable and stable performance. Using 6000 counts digit LCD monitor
with character 12.5mm high. With overall circuitry design centering on large-scale
IC A/D converters in conjunction and over-load protection circuit, the meters give
excellent performance and exquisite making as a handy utility instrument.
The meters can be used to measure DC & AC voltage, DC & AC current,
resistance, capacitor, frequency, temperature, positive diode voltage fall and
audible continuity.

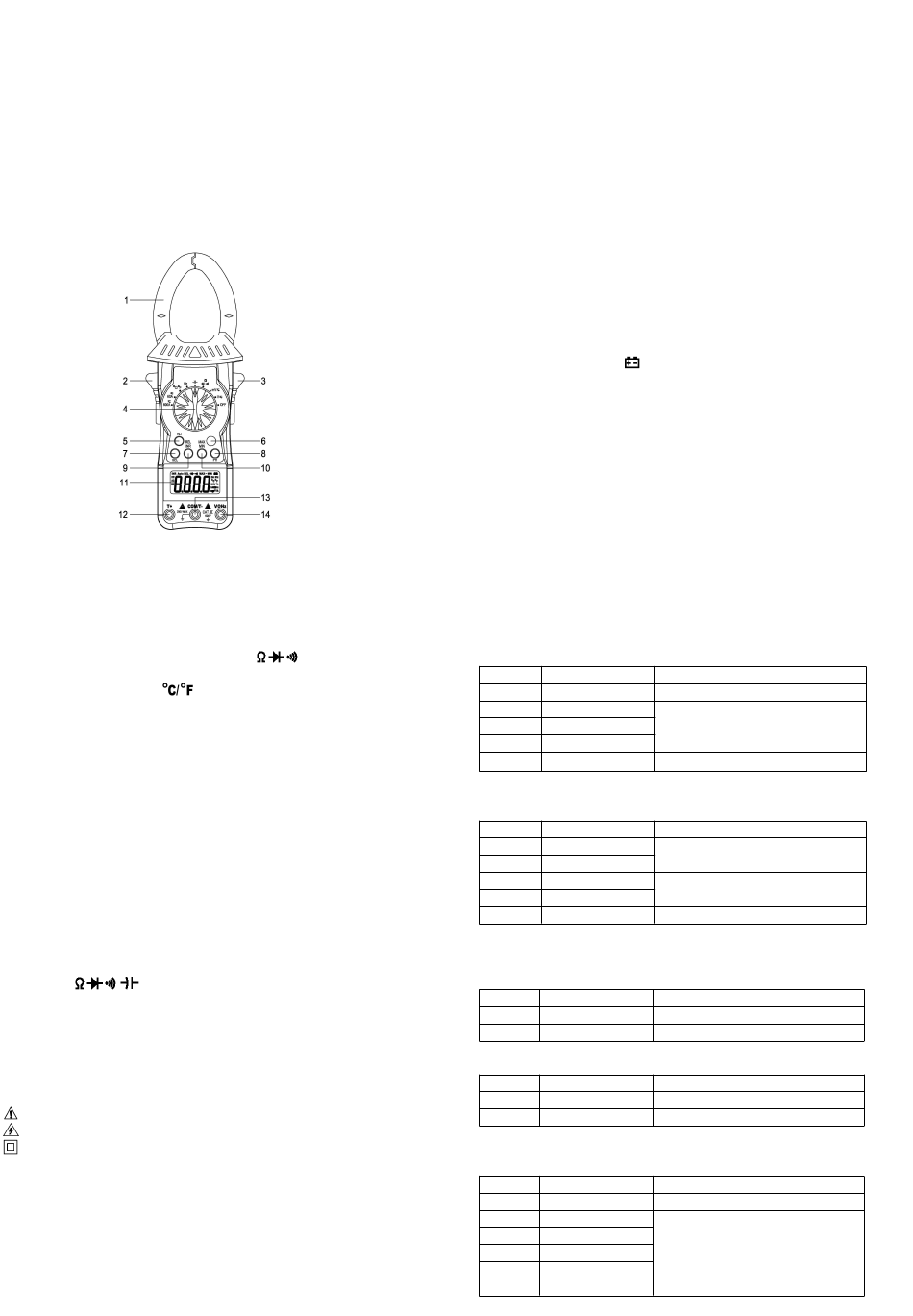

2. Panel Layout
1. Clamp jaws: Opens 38mm to enclose conductor.
2, 3. Jaw-opening handle: Opens and closes the jaws.
4. Rotary Switch: Use this switch to select functions and ranges.
5. DH (Data Hold) key: Press the "DH" key to lock display value, and the "DH"
sign will appear on the display, press it again to exit.
6. CDS sensor: The CDS sensor can reaction to the ambient brightness range,
then automatically control the LCD backlight to lighten or go out.
7. SEL (Select) key: This key work on the "
choose resistance, diode or continuity test, on the voltage or current range,
change to DC or AC, on the
hold SEL key to power on, "Auto Power Off " function will be disabled.
8. PH (Peak Hold) key: Press the "PH" key to lock PEAK MAX, PEAK MIN or
PEAK MAX-MIN value, and the "PH MAX" or "PH MIN" or "PH MAX-MIN" sign
will appear on the display, press it over 2 seconds to exit.
9. REL/INR (Relative/Inrush) key: Press the "REL/INR" key, the meter enters
relative measuring mode, "REL" will display on the LCD and the present reading
becomes the reference value and displayed on the display. Relative
measurement REL△=measurement value-Reference value. Press the key for
more than 2 seconds to measure inrush current at AC Current range, and the
"INR" sign will appear on the display, press it can measure inrush current
repeatedly, press it over 2 seconds to exit.
10. MAX/MIN key: Press the "MAX/MIN" key to lock MAX, MIN or MAX-MIN
value, and the "MAX", "MIN" or "MAX-MIN" sign will appear on the display, press
it over 2 seconds to exit.
11. LCD display: 6000 counts digit, full function symbol display.
12. T+: Temperature "+" Input Jack
13. COM/T-: COM and Temperature "-" Input Jack
14. VΩHz: V/ / /Hz Input Jack
3. Safety Information
3-1 The meter is designed according to IEC-1010 concerning electronic
measuring instruments with an over-voltage category 600V (CAT Ⅱ) and
pollution 2.
3-2 Follow all safety and operating instructions to ensure that the meter is used
safely and is kept in good operating condition.
3-3 safety symbols:
Important safety information, refer to the operating manual.
Dangerous voltage may be presence.
Double insulation (protection Class II)
4. Special Cautions for Operation
4-1 The meters can be safe only according to standard procedures when used in
conjunctions with the supplied test leads. To replace damaged test leads with only
the same model or same electric specifications.
4-2 To avid risk of electric shock, do not use the meters before the cover is in
place.
4-3 The range switch should be right position for the testing.
4-4 To avoid electric shock and damaging the instruments, the input signals are
forbidden to exceed the specified limits.
6205
" range, press the key to
range, change to ℃ or ℉ test; If press and
4-5 When measuring TV set or switched power, attention should be paid to the
possible pulses that may bring destruction to the circuit.
4-6 Range switch position is forbidden to be changed at random during
measurement.
4-7 Take caution against shock in the course of measuring voltage higher than
DC 60V & AC 30V.
4-8 Before opening the cover of the battery cabinet to replace batteries.
disconnect the test leads from any external circuit, set the selector switch to
"OFF" position.
4-9 Keep the fingers after the protection ring when measuring through the
instrument lead.
4-10 Keep the fingers after the protection ring when measuring through the
clamp.
4-11 After operation is finished, set function switch at OFF to save battery power.
4-12 If the meter is without usage for long time, take out battery to avoid damage
by battery leakage.
5. GENERAL SPECIFICATIONS
5-1 Max Voltage between input terminal and Earth Ground: CAT Ⅱ 600V
5-2 Over-range Indication: display "OL" for the significant digit.
5-3 Automatic display of negative polarity "-" .
5-4 Low Battery Indication: " " displayed.
5-5 Max LCD display: 6000 counts digit.
5-6 Auto range & Manual range control
5-7Auto Power Off: When measurement exceeds 15 minutes without switching
mode and pressing key, the meter will switch to standby mode. Press any key
to exit standby mode. When restart the system, press and hold SEL key to
disable auto power off.
5-8 Auto LCD backlight
5-9 Clamp opening size: 38mm.
5-10 Power supply: 1.5V×3 "AAA" R03P battery
5-11 Operating Temp.: 0℃ to 40℃ (relative humidity <85%)
5-12 Storage Temp.:-10℃ to 50℃ ((relative humidity <85%)
5-13 Guaranteed precision Temp.: 23±5℃ (relative humidity <70%)
5-14 Dimension: 193(H)×73(W)×26(D)mm.
5-15 Weight: Approx. 325g (including battery).
6. Testing Specifications
Accuracy is specified for a period of year after calibration and at 18℃ to 28℃
(64℉ to 82℉) with relative humidity to 70%.
6-1 DC Voltage
Range Resolution
60mV 0.01mV
600mV 0.1mV
6V 1mV
60V 10mV
600V 100mV
-- Impedance: 10MΩ, More than 100MΩ on 60mV/600mV range
-- Overload protection: 600V DC or AC rms
6-2 AC Voltage (True RMS)
Range Resolution
60mV 0.01mV
600mV 0.1mV
6V 1mV
60V 10mV
600V 100mV
-- Impedance: 10MΩ, More than 100MΩ on 60mV/600mV range
-- Overload protection: 600V DC or AC rms
-- Frequency Range: 40 to 400Hz
6-3 DC Current
Range Resolution
60A 0.01A
600A 0.1A
-- Overload protection: 600A DC or AC rms
6-4 AC Current (True RMS)
Range Resolution
60A 0.01A
600A 0.1A
-- Overload protection: 600A DC or AC rms
-- Frequency Range: 40 to 100Hz
6-5 Resistance
Range Resolution
600Ω 0.1Ω
6kΩ 1Ω
60kΩ 10Ω
600kΩ 100Ω
6MΩ 1kΩ
60MΩ 10kΩ
-- Overload protection: 250V DC or AC rms
Accuracy
±(0.8% of rdg + 2 digits)
±(0.5% of rdg + 2 digits)
±(0.8% of rdg + 2 digits)
Accuracy
±(1.5% of rdg + 3 digits)
±(1.0% of rdg + 3 digits)
±(1.5% of rdg + 3 digits)
Accuracy
±(2.5% of rdg + 10 digits)
±(3.0% of rdg + 10 digits)
Accuracy
±(2.5% of rdg + 10 digits)
±(3.0% of rdg + 10 digits)
Accuracy
±(1.0% of rdg + 3 digits)
±(1.0% of rdg + 2 digits)
±(1.5% of rdg + 3 digits)
