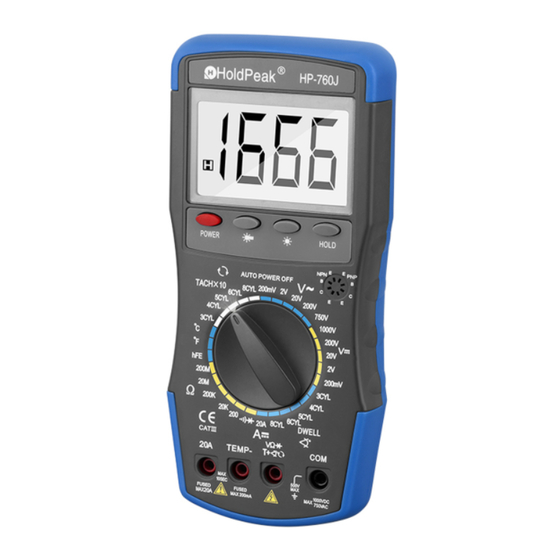

HoldPeak 760J Operation Manuals

3 1/2 DIGITAL AUTOMATIVE ENGING
ANALYZER MULTIMETER OPERATION
This instrument is a compact , rugged , battery operative,
handhold 3 1/2 digits automotive engine analyzer multimeter for
measuring RPM,DWELL ANGLE, DCV, ACV, OHMS, DIODE,
CONTINUITY, DCA TEMPERATURE .It is an ideal instrument for
all drivers.

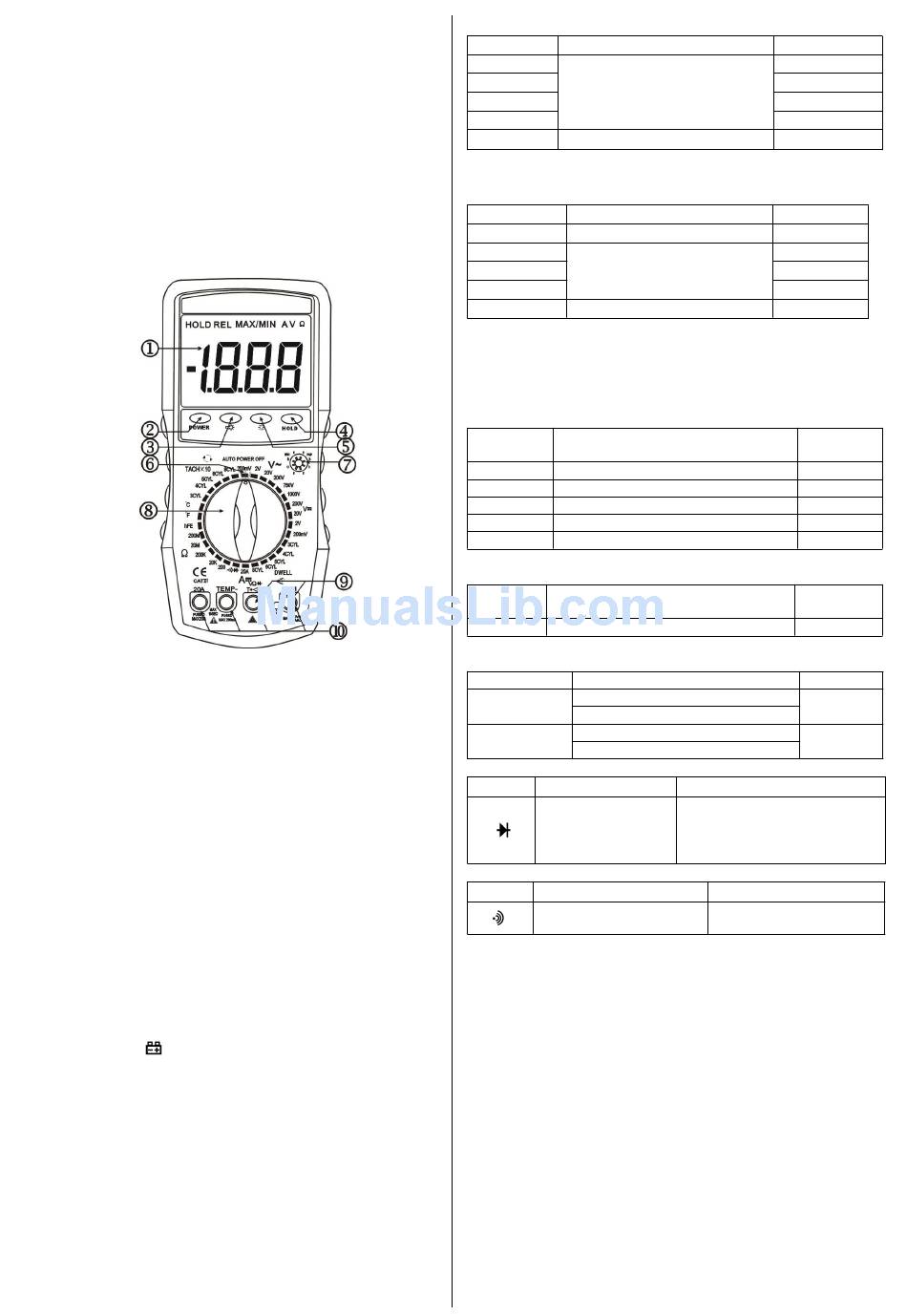

1. Panel Layout
1）LCD Display
2）POWER Switch：Boot Up / Shutdown
3）Function switch indicator lamp key: Pressing the button turns
the f unction switch indicator lamp on， pressing it again turns it off.
4）Data-hold Switch (HOLD)：Pressing this button, the meter enters the
auto data hold mode and "HOLD" is displayed on the LCD.
5 ） Back Light Button Switch: Pressing the button turns the
backlight on，pressing it again turns it off.
6）Function switch indicator lamp
7）hFE Input Jack
8）Rotary Switch: use this switch to select functions and ranges
system.
9) mechanical blocking
10）V Ω/T+ Input Jack、20A Input Jack、T- Input Jack 、COM
Input Jack
2. SPECIFICATIONS
2.1 GENERAL SPECIFICATIONS
Display : 3 1/2 digits LCD with a max . reading of 1999
Polarity : Automatic negative polarity indication..
Zero adjustment : Automatic.
Overrange indication : only the "1" display.
Lowbattery : The " " is display .
Safety standards : CE EMC/LVD. The meter is up to the
standards of IEC1010 Pollution Degree 2, Overvoltage
CategoryⅡor double insulation Ⅲ.
Operating environment : Temperature 32 to 104℉(0℃ to 40℃),
humidity<85% RH.
Storage environment :
60℃),humidity<95% RH.
Power : Single, standard 9-volt battery, NEDA 1604IEC 6F 22.
Dimension : 190mm×88.5mm×27.5mm
Weight :Approx. 320g(including battery and holster).
2.2ELECTRICAL SPECIFICATIONS
Accuracy is ±(% of reading ＋ number in last digit) at
23±5℃, <75% RH.
760J
MANUAL
Temperature –4 to 140℉(-20℃ to
2.2.1 DC Voltage
Range Accuracy
200mV
2V
±(0.5% of rdg + 8digits)
20V
200V
1000V ±(1.5% of rdg + 8 digits)
Impedance : 10MΩ
Overload protection: 1000V DC/AC RMS.
2.2.2 AC Voltage
Range
200mV ±(2.0% of rdg + 10 digits)
2V
20V ±(1.5% of rdg + 10 digits)
200V
750V ±(2.5% of rdg + 10 digits)
Impedance: 10MΩ
Frequency response:
200V: 40Hz------400Hz
750V: 40Hz------200Hz
Overload protection: 500V DC/AC RMS.
2.2.3 Resistance:
Range
200Ω ±(1.2% of rdg +15 digits)
20kΩ ±(0.8% of rdg +8 digits)
200kΩ
20MΩ ±(2.5% of rdg + 15 digits)
200MΩ ±【5.0% of （rdg-10）+30 digits】
Overload protection:
2.2.4 DC Current
Range
20A ±(2.0% of rdg + 10 digits)
Overload protection:20A/250V fuse 20A up to 10 seconds
1.2.5 Temperature (Using K type thermocouples probe)
Scale
±(3%of rdg +2 digits)＜400℃
(-20～1000)℃
±(3.5%of rdg +5 digits)≥400℃
±(3%of rdg+2 digits)＜750℉
(-4～1800)℉
±(3.5%of rdg +5 digits)≥750℉
2.2.6 Diode test:
Range Description
Display read
approx.
"
Forward voltage of
diode.
2.2.7 Continuity Test
Range Description
Audible indication: Less
"
than 80Ω Approx
2.2.8 Tachometer
500-10000RPM:
Overload protection: 250V DC/AC RMS
2.2.9 Dwell :
3 CYL
4 CYL
5CYL
6CYL
8CYL
2.2.10 Transistor hFE Test
(1) Set the FUNCTION switch the "hFE" range.
(2) Determine whether the transistor is NPN or PNP and locate
the Emitter. Base and collector leads. Insert the leads into the
proper holes in the socket on the front panel.
(3) The display will read the approximated hFE value at the
test condition Base current 10uA, Vce 3V.
2.2.11 back light
Press button "LIGHT" backlight illume, Again press once
backlight breath go out.
2.2.12 Function switch indicator lamp:
Resolution
100μV
10mV
100mV
Accuracy Resolution
100μV
1mV
10mV
100mV
Accuracy Resolutio
250VDC/AC RMS.
Accuracy Resolutio
Accuracy Resolution
Test condition
Test current : 1±0.6mA
Test voltage : Approx. 1.5V
Overload protection: 250V
DC/AC RMS
Test condition
Overload protection:
250V DC/AC RMS
±(1.5%of rdg＋8 digits)
±(1.5%of rdg＋8 digits)
0 - 120.0°
0 - 90.0°
0 - 72.0°
0 - 60.0°
0 - 45.0°
New style patent of
1mV
1V
1V
n
100mΩ
10Ω
100Ω
10kΩ
1 kΩ
n
10mA
1℃
℉
