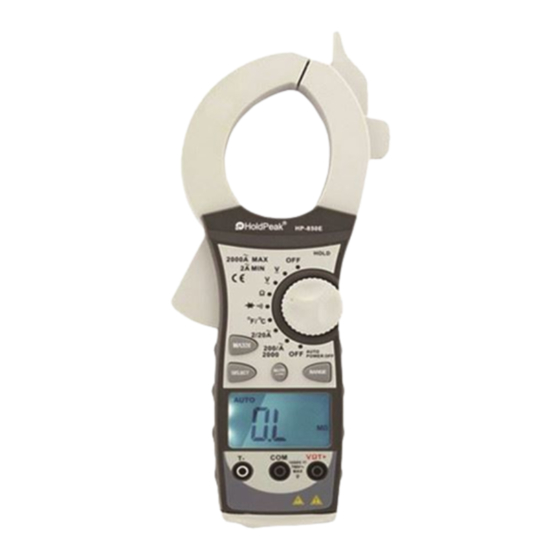

HoldPeak 850E Operation Manual

DIGITAL DUAL DISPLAY AC CLAMP MULTIMETER
OPERATION MANUAL
This LCD Auto Range & Auto Power off Digital AC clamp multi
meter is a portable, 3 1/2-digit multi meter. It is ideally suited for
field, laboratory, shop and home applications.

1. SAFETY INFORMATION

The following safety information must be observed to in sure
maximum personal safety during the operation at this meter.
1) When measuring voltage ensure that instrument is not switched
to the current range, resistance range, diode and continuity range,
temperature range.
2) Use extreme care when measuring voltage above 50V.
especially from sources where high energy is existed.
3) Avoid making connections to "live" circuits whenever possible.
4) Before making resistance measurements, diode or continuity
test, temperature test, ensure that the circuit under test is
de-energized.
5) Always ensure that the correct function and range is selected.
6) Extreme care should be taken when using the instrument to
conjunction with a current transformer connected to the terminals if
an open circuit occurs.
7) Ensure that the test leads and probes are in good condition with
no damage to the insulation.
8) Take care not to exceed the over-load limits as given in the

specifications.

9) Before opening the cover of the battery cabinet to replace
batteries. disconnect the test leads from any external circuit, set
the selector switch to "OFF" position.
10) Keep the fingers after the protection ring when measuring
through the instrument lead.
11) Change the battery when the symbol "
incorrect data.

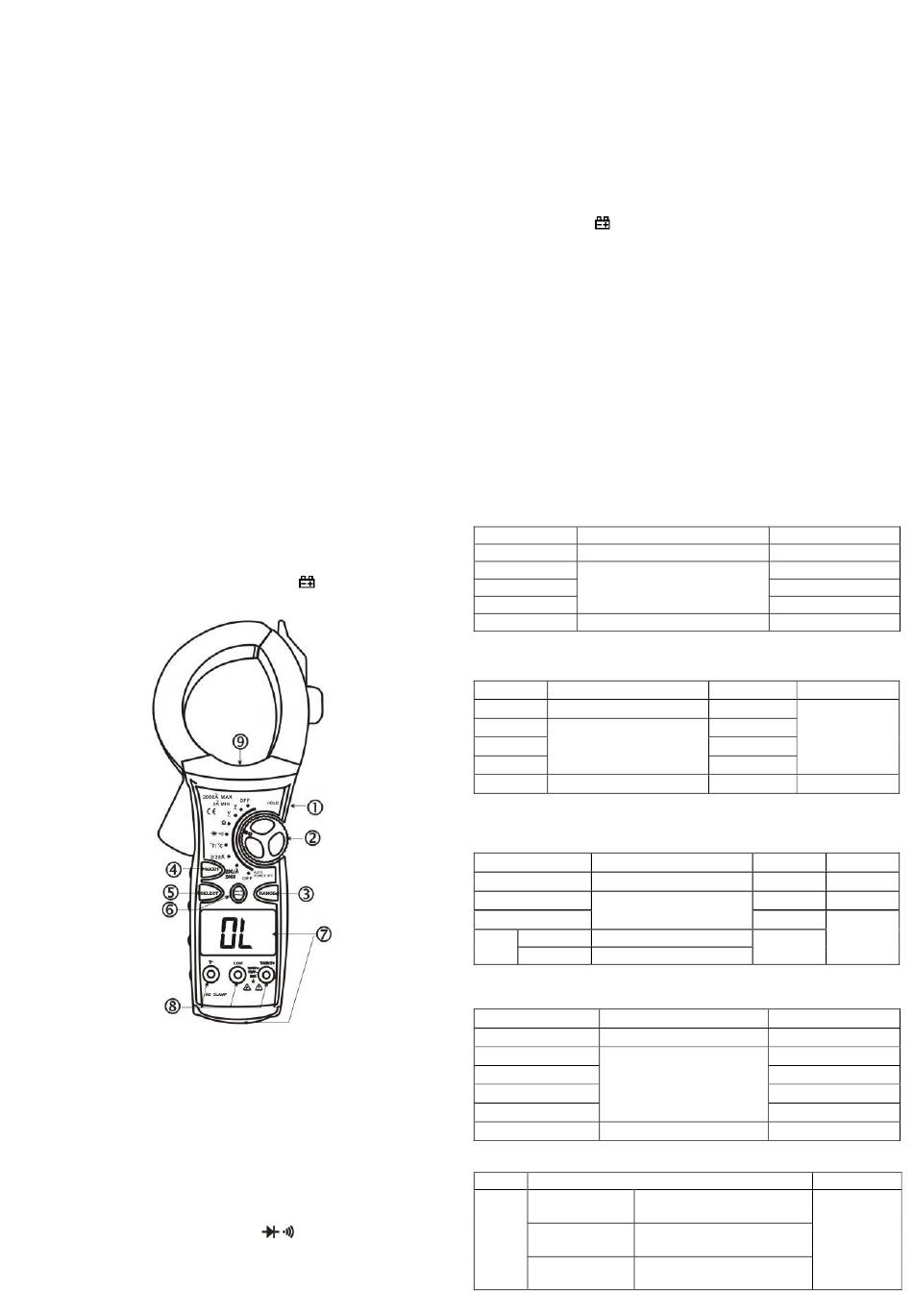

2. Panel Layout

1） HOLD key： In any range, push the key, the present display value
will be locked and the " H D " symbol will appear, push it again to
exit HOL and the " H D " symbol disappear.
2）Rotary Switch: use this switch to select functions and ranges
3） RANGE key： Push the key to select manual mode, push it again
to change the range, press the key for more than 2 seconds to go
back auto range mode.
4）MAXH key: Push MAXH key, will test max value for AC/DC
voltage or AC/DC current(not a peak value).Push again, cancel
this function.
5） SELECT key： This key work on the "
to choose diode or continuity test.. Press "SELECT" in ＂℃/℉
0
rang , press direct for ℃/
F select.
6） Back Light key: Press "BLCTR" button more than 2 seconds, the
850E
" appears to avoid
" range. Push the key
back light will light, press it more than 2 seconds again, the back
light will light off.
7）LCD Display：LCD Dual Display, facilitates reads the data.
8）T+V ΩInput Jack 、COM Input Jack、T-Input Jack
9) Clamp Light easy for test the electric current in hidden place.
2. SPECIFICATIONS

2.1 GENERAL SPECIFICATIONS

Display: 3 1/2 digit LCD with a max. reading of 1999.
Range control: Auto range or manual range control.
Polarity: Automatic negative polarity indication.
Zero adjustment: Auto malic.
Over range indication: Only the "OL" display.
Low battery: The "
2.4V.
Auto Power Off: 15 minutes after stopping the switch or no push
button, the meter automatically enter to power off mode. Push
button or run switch, auto power off disable.
Safety Standards: The meter is up to the standards of IEC1010
Double Insulation, Pollution Degree 2, Overvoltage Category Ⅲ.
Clamp opening size: 45mm.
Operating Environment: Temperature 32～104°F(0～40℃),
humidity＜80%RH.
Storage Environment: Temperature -4～140°F(-20～
60℃),humidity＜90%RH.
Power supply: 9V Zinc-carbon battery.
Dimension: 275(H)× 120(W)× 33(D)mm.
Weight: Approx. 580g (including batteries).

2.2 ELECTRICAL SPECIFICATIONS

Accuracies are ±(% of reading +number in last digit)
at 23±5℃,≤75%RH.
2.2.1 DC Voltage
Range
200mV
2V
20V
200V
1000V
Overload protection: 1000V DC/750Vrms AC
Impedance: 10MΩ，More than100MΩ on 200mV scale
2.2.2 AC Voltage
Range
200mV 2.0% of rdg+15 digits
2V
20V 1.0% of rdg+15 digits
200V
750V 1.5% of rdg+15 digits
Average sensing, calibrated to rms of sine wave
Overload protection: 1000V DC/750Vrms AC
Impedance: 10MΩ，More than 100MΩ on 400mV scale
2.2.3 AC Current
Range
2A
20A
200A
0～1000
2000A
1000～2000
Average sensing, calibrated to rms of sine wave
Overload protection: 1000Arms within 60 seconds
2.2.4 Resistance
Range
200Ω
2kΩ
20kΩ
200kΩ
2MΩ
20MΩ
Overload protection: 250V DC/250Vrms AC
2.2.5 Temperature(NiCr-NiSi sensor)
Range
-20~150℃
-4~302℉
150~300℃
℃/℉
302~572℉
＂
300~1000℃
572~1800℉
Overload protection: 36V DC/36Vrms AC
" is display when the battery voltage is below
Accuracy
1.0% of rdg+15digits
1.0% of rdg+8digits
1.0% of rdg+10 digits
Accuracy Resolution
0.1mV
1mV
10mV
100mV
1V
Accuracy Resolution Frequency
4.0% of rdg+20 digits
0.01A
3.0% of rdg+20 digits
3.5% of rdg+20 digits
6.5% of rdg+15 digits
Accuracy
1.0% of rdg+25 digits
1.0% of rdg+15 digits
2.0% of rdg+20 digits
Accuracy
± (3℃+2)
± (3% of rdg+2digits)
± (3.5% of rdg+10digits)
Resolution
0.1mV
1mV
10mV
100mV
1V
Frequency
50～400Hz
50～100Hz
1mA 50～60Hz
50～60Hz
0.1A
50～60Hz
1A
Resolution
0.1Ω
1Ω
10Ω
100Ω
1kΩ
10kΩ
Resolution
1℃/1℉
