Materials Included:

1/8" balsa wood sheets

1/16" balsa wood sheets

1" polystyrene foam

Sandpaper

HD Bond II

Modeling clay

Plane Art Decals

Template material

Graph paper

Equipment Needed:

Foam Wing Cutter (17080)

Foam Wing Glider Instructions:

Using the Linder wing pattern, make a template to use with the Foam Wing Cutter. Refer to your Foam

Wing Cutter User Guide for cutting a wing.

You will need to cut two wings approximately 9" long.

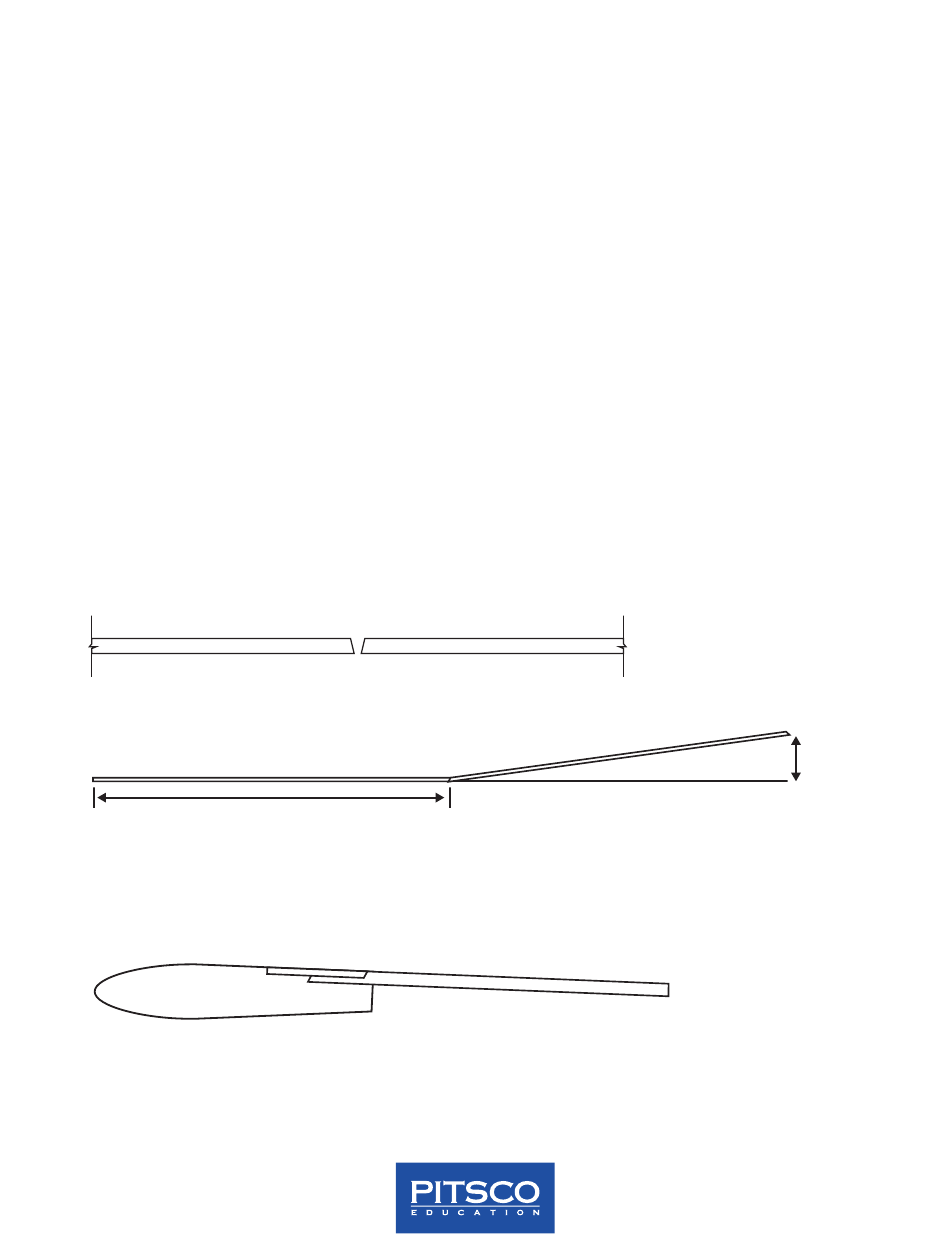

Sand or cut the ends of both wings (make sure you cut opposite ends) to form a dihedral angle for the

wings. With one wing flat, the other wing should be elevated approximately 2-1/4".

When you are satisfied with the angles, glue the two wing sections together.

Using the patterns provided, mark and cut the fuselage, tailpiece, horizontal stabilizer, and wing

support from the 1/8" balsa wood sheet.

Glue the tailpiece to the fuselage. Glue the wing supports to the fuselage and tailpiece as shown in the

following figure.

Using the pattern provided, mark and cut the vertical stabilizer from the 1/16" balsa wood sheet.

Foam Wing Glider Pack

9''

2-1/4''

Page 1 Foam Wing Glider Pack Materials Included: 1/8" balsa wood sheets 1/16" balsa wood sheets 1" polystyrene foam Sandpaper HD Bond II Modeling clay Plane Art Decals Template material Graph paper Equipment Needed: Foam Wing Cutter (17080) Foam Wing Glider Instructions: Using the Linder wing pattern, make a template to use with the Foam Wing Cutter.
Page 2 Attach horizontal and vertical stabilizers to the tailpiece as shown in the following figure. Attach the wings to the fuselage with the wing centered over the wing support as shown in the previous figure. 10. When the glued areas have dried, experiment with different amounts of clay on the nose cone to balance the weight of your glider.
