Configuration

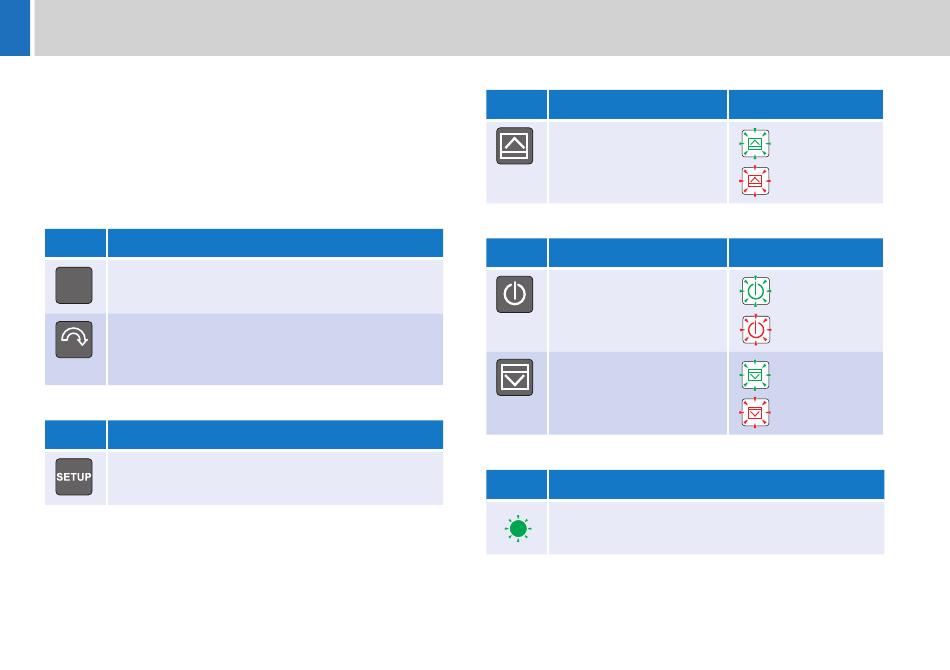

Control Panel Buttons

The buttons on the control panel are used to configure the setup of the
prompter monitor screen. The buttons have legends to indicate their
function, and are back-illuminated.
The control panel buttons are clustered in four distinct groups.
Direct Access Buttons
These two buttons provide quick access to common functions.
Button
INPUT SELECTION button steps to the next available
I/P
video input.
PICTURE ROTATION button steps through all four
combinations of horizontal and vertical scanning
directions, allowing the correct picture orientation for
direct or mirror viewing to be set.
Setup Button
.
Button
SETUP button to activate the on-screen engineering
setup menu.
30
Button Function
Button Function
Prompter Button
.
Button Button Function
PROMPTER button allows
the script or vanity image to
be displayed on the
prompter monitor.
On-Air Monitor Buttons
.
Button Button Function
The power button provides a
supply to the vanity monitor.
The vanity monition must be
unlocked to become active.
ON-AIR MONITOR button
allows the script or vanity
image to be displayed on
the vanity monitor.
Power Status LED
.
Button
POWER STATUS button illuminates green when a valid
power supply is detected.
Colour Status
When display
active.
When display
inactive.
Colour Status
When power
active.
When power
inactive.
When display
active.
When display
inactive.
Button Function
