Assembling And Fitting The Hoods - Autoscript E.P.I.C. 17 Inch TFT User Manual

Installation
6.

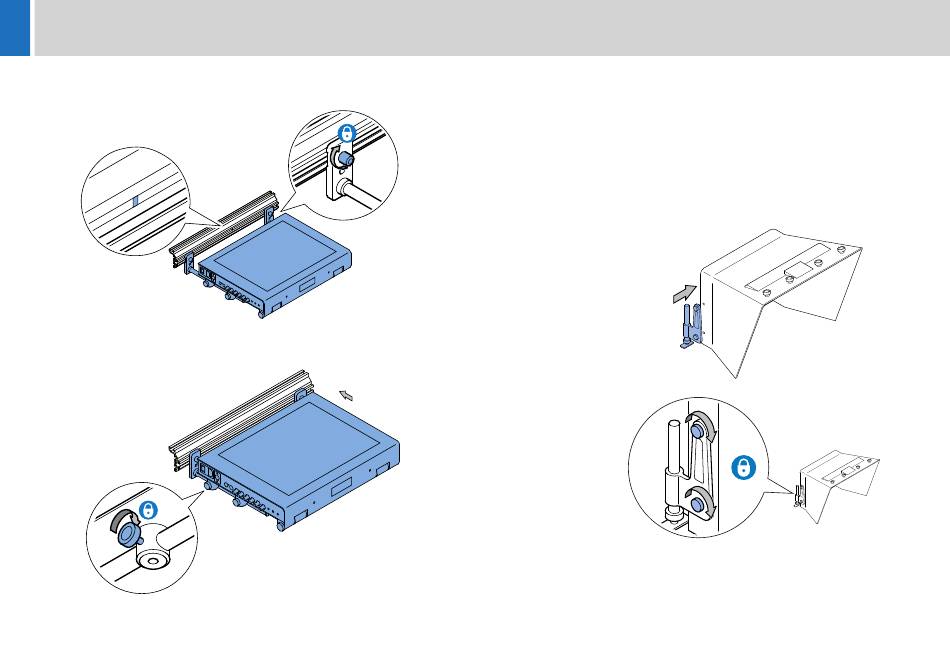

Centralise the prompter monitor with the marker on the extrusion.
Secure the monitor in position by tightening the clamping screw.
7.
Slide the prompter monitor back and tighten the rod mounting
screws on the base.
14

Assembling and Fitting the Hoods

A range of hoods are available for use with the E.P.I.C. on-camera
prompter. The hoods are available in solid moulded or folding versions,
in various sizes, to suit the camera and monitor being used in the
installation. Fixing brackets are supplied for use with the hood variant
being installed.
For more information on the hoods available see the section Hood
Components on page 6.Assembling the Moulded Hoods - Both Sizes
1.
Align the hood bracket
and two fixing screws
with the holes in the
side of the hood.
2.
Tighten the fixing
screws to secure
the hood bracket
in position.
3.
Repeat steps 1 and 2 for the opposite hood bracket.
