P C 9 / P 9 F l o p p y D r i v e R e p l a c e m e n t

Introduction

These instructions explain how to replace the floppy disk drive in the PC9
Industrial PC or the P9 PowerStation. They include steps for disassem-
bling the unit, removing the previously installed floppy drive, installing a
new floppy drive, and reassembling the unit.
Warning
Warning
To complete this procedure, you will need the following items:
•
•

Disassembling the Unit

To disassemble the unit, follow these steps:
1. Turn off the unit.
2. Disconnect the unit from the power source.
3. Disconnect all cables attached to the unit.

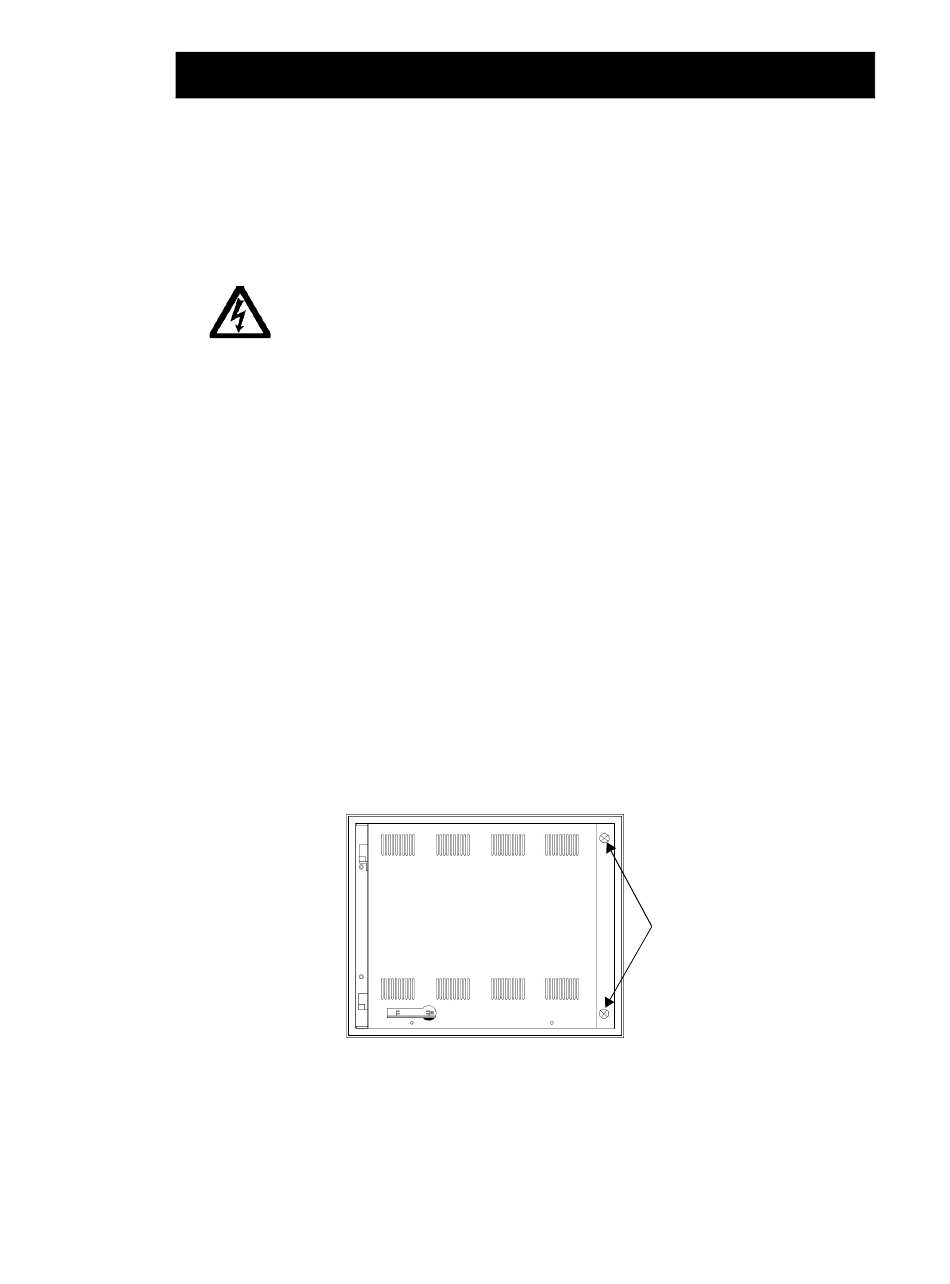

4. Remove the two screws securing the backshell to the faceplate as-
sembly, as shown below.
CTC Parker Automation
For safety reasons, the unit should be opened only by qualified
service personnel.
Be sure to observe electrostatic discharge (ESD) precautions
while working inside the unit.
Floppy Drive Replacement Kit for PC9/P9 (FLP-9000)
Phillips-head screwdriver
Remove
these screws
A3-06022-100

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PC9 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for CTC Parker Automation PC9

Summary of Contents for CTC Parker Automation PC9

  • Page 1 P C 9 / P 9 F l o p p y D r i v e R e p l a c e m e n t Introduction These instructions explain how to replace the floppy disk drive in the PC9 Industrial PC or the P9 PowerStation. They include steps for disassem- bling the unit, removing the previously installed floppy drive, installing a new floppy drive, and reassembling the unit.
  • Page 2 PC9/P9 Floppy Drive Replacement 5. Swing the backshell away from the faceplate. 6. Detach the three cables connecting the faceplate assembly and backshell. These cables are shown below. Detach the Monitor card Detach the monitor cable backlight cable here here...

  • Page 3: Removing A Floppy Drive

    PC9/P9 Floppy Drive Replacement Remove this bracket 7. Lift the backshell off its hinges, and place it on a static dissipative mat in a location free from dirt and moisture and protected against static discharge. You may leave the faceplate mounted in the en- closure.
  • Page 4 PC9/P9 Floppy Drive Replacement Remove these screws Detach cables here Floppy drive Remove these screws Slide the floppy drive out of the unit to the left Installing a New Floppy Drive To install a new floppy drive, follow these steps: 1.
  • Page 5 PC9/P9 Floppy Drive Replacement 2. Re-attach the monitor data cable, touchscreen cable (if necessary), and backlight cable that you removed in step 6 on page 2. (Press the monitor cable into its socket until the locking clamps on either side of the socket snap into place).
  • Page 6 PC9/P9 Floppy Drive Replacement CTC Parker Automation...
