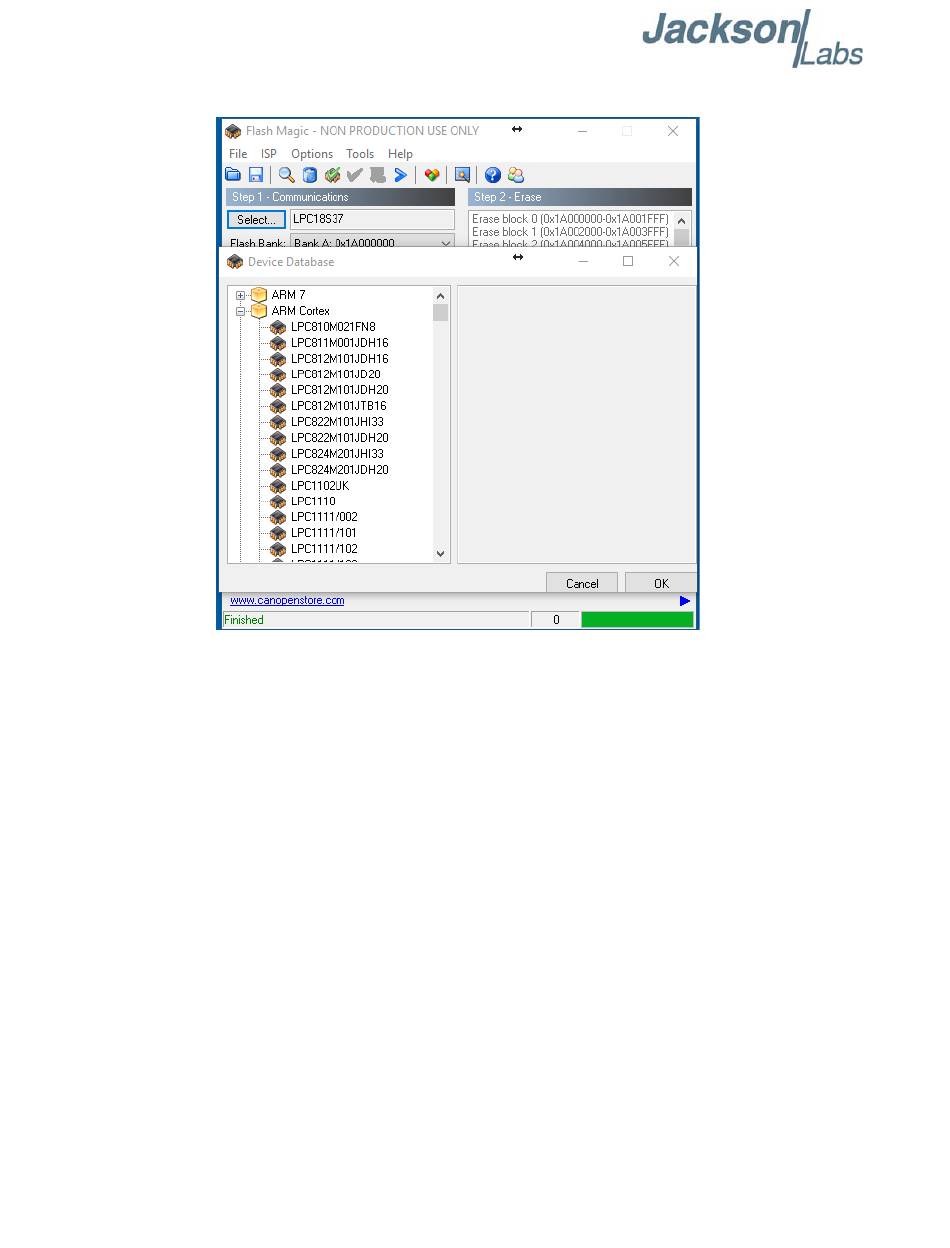

Figure 5.5 Expanded device selection window
D) Select the Baud Rate of the Flash Magic utility to be 115200. Slower baud rates will also work,
but will take longer to finish the programming cycle.
E) Set the Oscillator (MHz) to "10.0".
F) Check the box marked "Erase blocks used by Hex File".
Warning: Make sure NOT(!) to check the box marked "Erase all Flash" under any
circumstances, this will erase factory calibration data, and the unit will not
operate and will have to be returned to the factory. Checking this box on the
ISP utility will thus void the warranty.
G) Under "Step 3 - Hex File" browse for the hex file that you downloaded in step
H) Under "Step 4 - Options" check "Activate Flash Bank"
I) Go to Step 5 and press "Start". You will observe the firmware being downloaded to the processor.

5.5 Verifying Firmware Update

Power cycle the unit. The LEDs should light up.
During power on, the unit sends an ID string with the software version out of the USB serial port J2
at 115200 Baud by default. The firmware version can also be queried by sending the *IDN?
command. Verify that the firmware version is the version that was downloaded.
