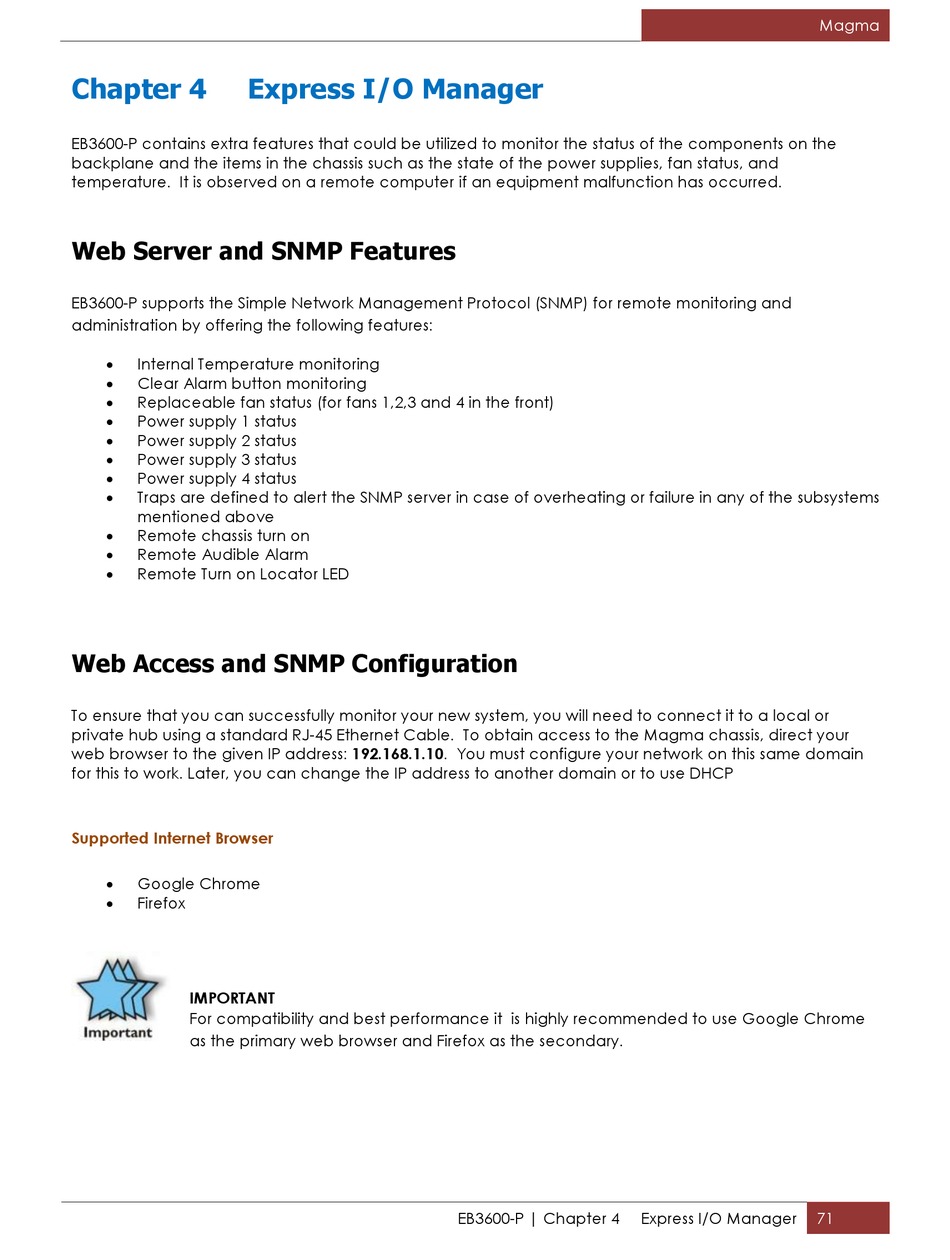

Chapter 4 Express I/O Manager
EB3600-P contains extra features that could be utilized to monitor the status of the components on the
backplane and the items in the chassis such as the state of the power supplies, fan status, and
temperature. It is observed on a remote computer if an equipment malfunction has occurred.

Web Server and SNMP Features

EB3600-P supports the Simple Network Management Protocol (SNMP) for remote monitoring and
administration by offering the following features:
 Internal Temperature monitoring
 Clear Alarm button monitoring
 Replaceable fan status (for fans 1,2,3 and 4 in the front)
 Power supply 1 status
 Power supply 2 status
 Power supply 3 status
 Power supply 4 status
 Traps are defined to alert the SNMP server in case of overheating or failure in any of the subsystems
mentioned above
 Remote chassis turn on
 Remote Audible Alarm
 Remote Turn on Locator LED

Web Access and SNMP Configuration

To ensure that you can successfully monitor your new system, you will need to connect it to a local or
private hub using a standard RJ-45 Ethernet Cable. To obtain access to the Magma chassis, direct your
web browser to the given IP address: 192.168.1.10. You must configure your network on this same domain
for this to work. Later, you can change the IP address to another domain or to use DHCP

Supported Internet Browser

 Google Chrome
 Firefox
IMPORTANT
For compatibility and best performance it is highly recommended to use Google Chrome
as the primary web browser and Firefox as the secondary.
