Placement of GPUs on the backplane

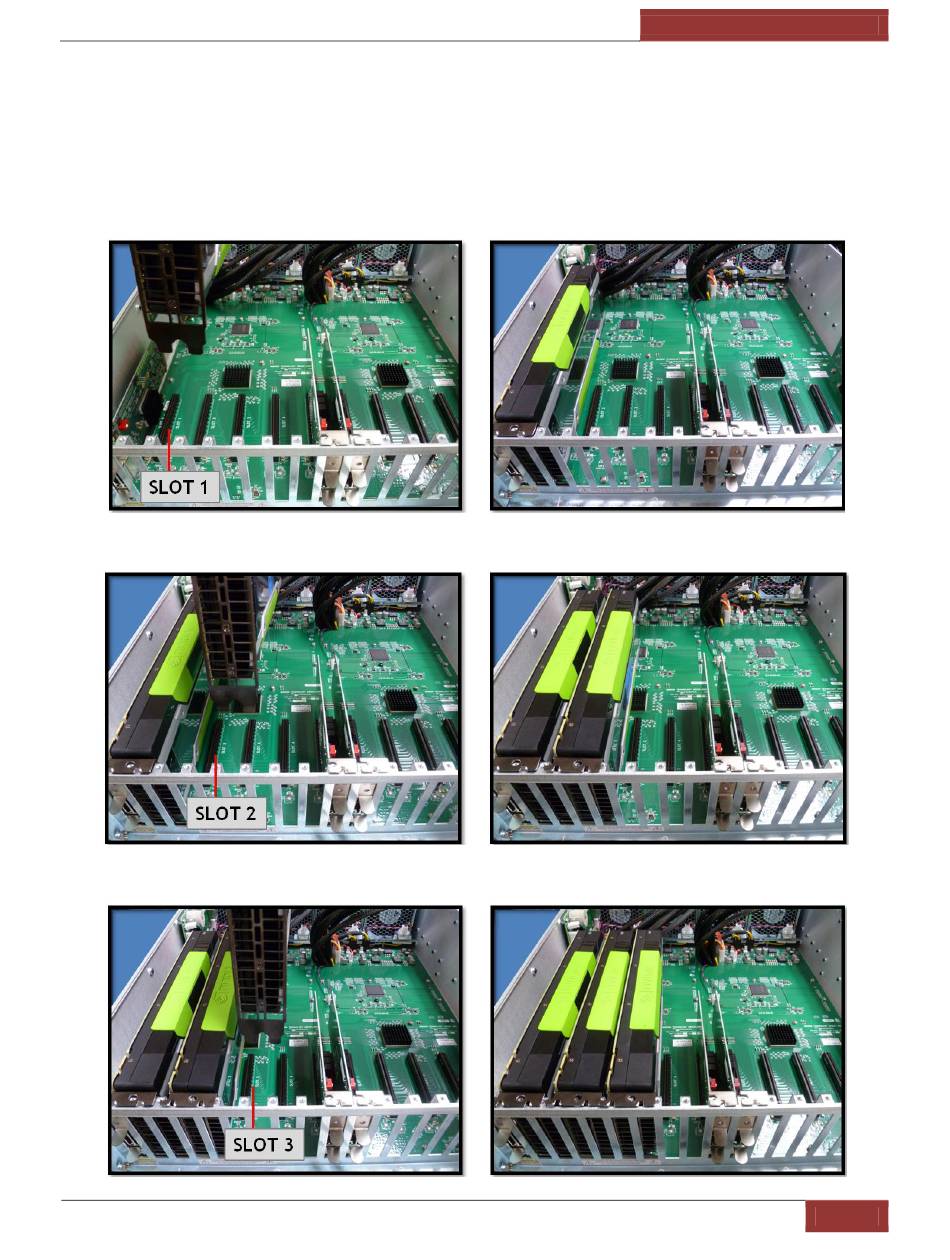

Proper placement of doublewide GPUs across the two backplane or how to populate all PCIE slots with
series of doublewide GPUs, see pictures below.
When installing a doublewide GPU, start with the PCIe slot from the far- end left. There are two backplanes
in the expansion chassis. Backplane A & B both can accommodate 4 doublewide GPUs.
EB3600-P | Chapter 2 Hardware Installation 31
