Magma P13RR-RAS Quick Installation Manual

Advertisement

Quick Links

9918 Via Pasar, San Diego, CA 92126, USA
Phone (800) 285-8990 US, (858) 530-2511 • Fax (858) 530-2733
www.magma.com
© 2007 Mission Technology Group, Incorporated, DBA Magma
This publication is protected by Federal Copyright Law, with all rights reserved. No part of this publication may be copied, photocopied,
reproduced, stored in a retrieval system, translated, transmitted or transcribed, in any form or by any means manual, electric, electronic,
electro-magnetic, mechanical, optical or otherwise, in whole or in part without prior written consent from Mission Technology Group, Inc..
Limitation of Liability
Information presented by Magma in this manual is believed to be accurate and reliable. However, Magma assumes no responsibility for its use.
No license is granted by implication or otherwise to any rights of Magma.
Trademark References
Trademarks and registered trademarks are proprietary to their respective manufacturers.
Product specifications and prices are subject to change without notice.

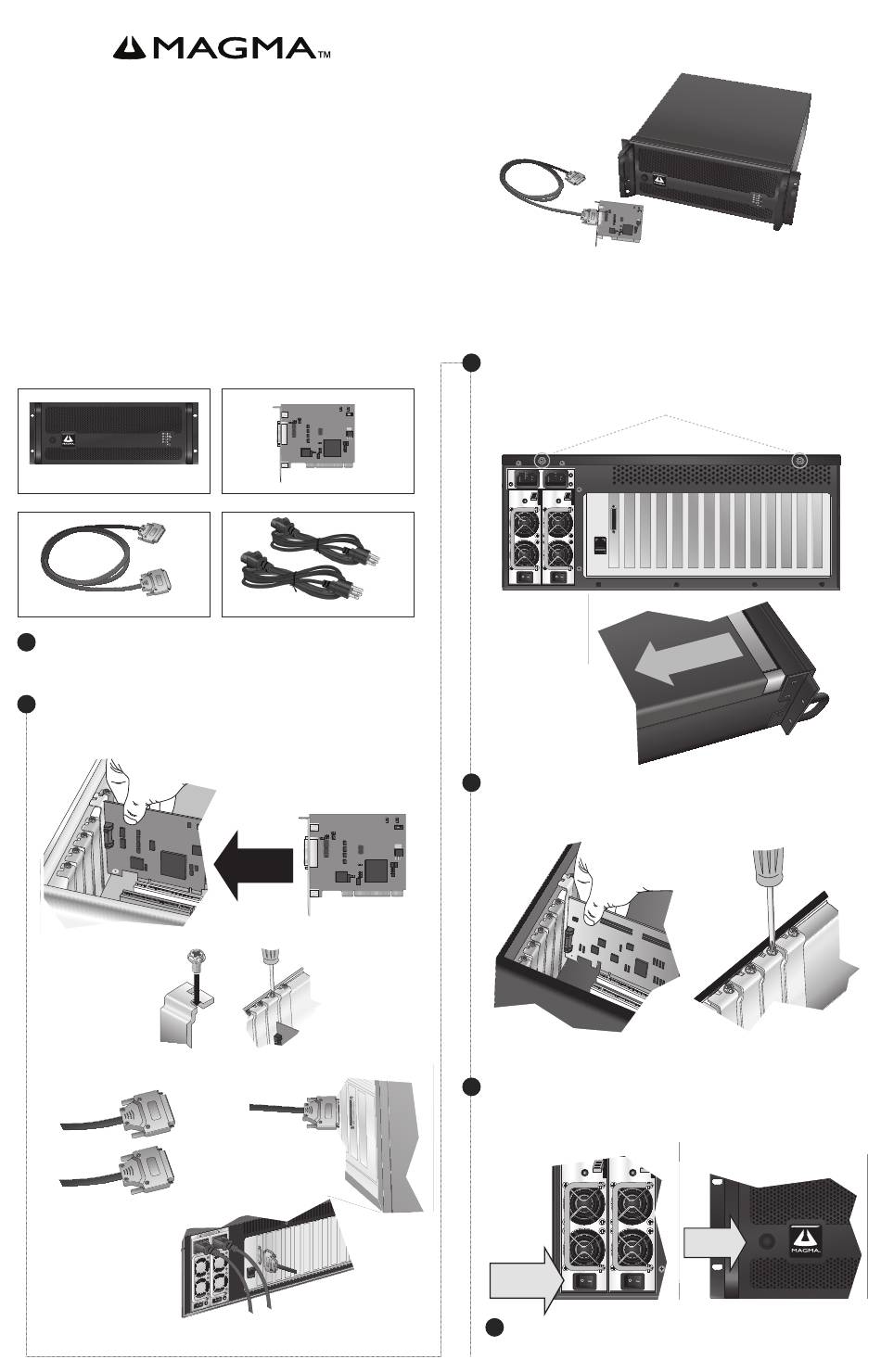

Package Contents

1
2
3
4
(1) Magma P13RR-RAS chassis
(1) MAgma PCI Expansion Cable
!
IMPORTANT
Important safety information and other information on how to use Magma P13RR-RAS are provided in the User
Guide. This manual is available online for a download at www.magma.com/support/manuals.
1

Install PCI Host card and connect cables

Install the Magma PCI Host Card into an available PCI slot in your computer.
Secure it with retaining screw.
Connect one side of the PCI expansion cable to the host card.
Connect the other side of the
PCI expansion cable to the
back of the P 13 RR-R A S
chassis. Ensure that the
system's redundant Power
Supply Units are switched
off and connect the chassis
power cords.
Magma
(1) Magma PCI Host Card
(2) Power Cords
HOST COMPUTER
HOST COMPUTER
PCIConnector
P13RR-RAS
PCI Connector
09-09977-00-A1
2

Open Enclosure

Remove the 2 thumbscrews that retain the top cover of the expansion chassis.
Slide the cover
backwards and upwards.
3

Install PCI cards

Remove PCI filler bracket for the expansion slot you wish to use in the
chassis. Install peripheral PCI card into the slot connector and secure with
retaining screw.
Repeat the process for all other PCI peripherals you wish to install in the chassis.
4

Power on P13RR-RAS

E a c h o f t h e r e d u n d a n t p o w e r s u p p l i e s h a s i t s o w n p o w e r s w i t c h a n d l e d .
Tu r n o n e a c h o f t h e i n d i v i d u a l p o w e r s w i t c h e s o n t h e r e a r o f t h e c h a s -
s i s , verify t h a t t h e g re e n L E D a b ove t h e p owe r s w i t c h i s o n , t h e n p u s h t h e
m a i n p o w e r b u t t o n o n t h e f r o n t o f t h e c h a s s i s .
!
IMPORTANT:
s i s b e f o r e y o u p o w e r u p t h e h o s t c o m p u t e r.
Quick Installation Guide
Magma
P13RR-RAS
(2 locations)
Yo u m u s t a p p l y p o w e r t o t h e P 1 3 R R - R A S e x p a n s i o n c h a s -
