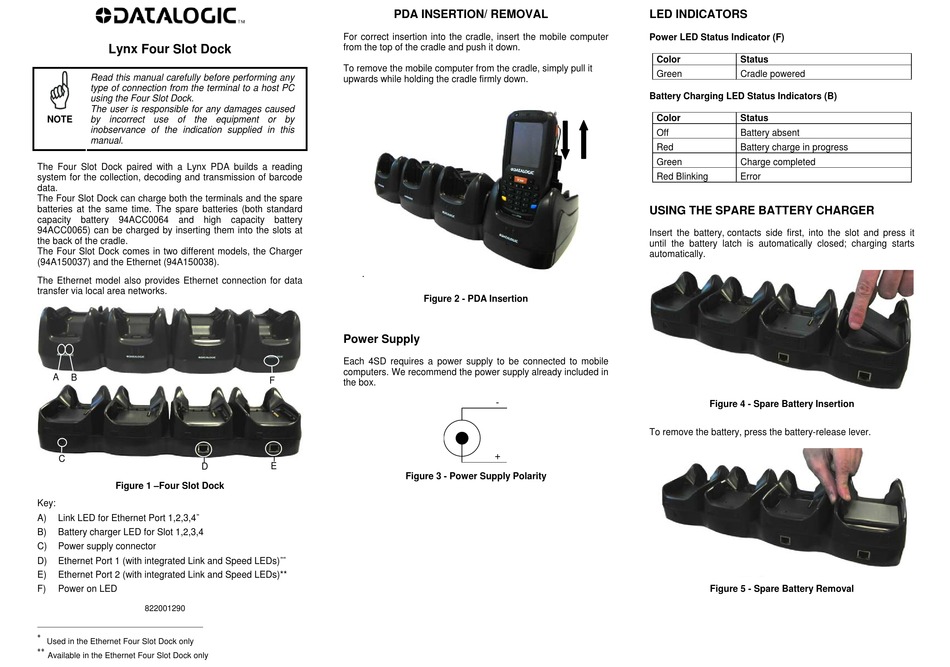

Datalogic Lynx Four Slot Dock Quick Start Manual

Lynx Four Slot Dock
Read this manual carefully before performing any
type of connection from the terminal to a host PC
using the Four Slot Dock.
The user is responsible for any damages caused
NOTE by incorrect use of the equipment or by
inobservance of the indication supplied in this
manual.
The Four Slot Dock paired with a Lynx PDA builds a reading
system for the collection, decoding and transmission of barcode
data.
The Four Slot Dock can charge both the terminals and the spare
batteries at the same time. The spare batteries (both standard
capacity battery 94ACC0064 and high
94ACC0065) can be charged by inserting them into the slots at
the back of the cradle.
The Four Slot Dock comes in two different models, the Charger
(94A150037) and the Ethernet (94A150038).
The Ethernet model also provides Ethernet connection for data
transfer via local area networks.
A B
C
D
Figure 1 –Four Slot Dock
Key:

A) Link LED for Ethernet Port 1,2,3,4
B) Battery charger LED for Slot 1,2,3,4
C) Power supply connector
D) Ethernet Port 1 (with integrated Link and Speed LEDs)
E) Ethernet Port 2 (with integrated Link and Speed LEDs)**
F) Power on LED
822001290

Used in the Ethernet Four Slot Dock only

Available in the Ethernet Four Slot Dock only
PDA INSERTION/ REMOVAL
For correct insertion into the cradle, insert the mobile computer
from the top of the cradle and push it down.
To remove the mobile computer from the cradle, simply pull it
upwards while holding the cradle firmly down.
capacity battery
.
Power Supply
Each 4SD requires a power supply to be connected to mobile
computers. We recommend the power supply already included in
F
the box.
E
Figure 3 - Power Supply Polarity

Figure 2 - PDA Insertion
-
+
LED INDICATORS
Power LED Status Indicator (F)
Color Status
Green Cradle powered
Battery Charging LED Status Indicators (B)
Color Status
Off Battery absent
Red Battery charge in progress
Green Charge completed
Red Blinking Error
USING THE SPARE BATTERY CHARGER
Insert the battery, contacts side first, into the slot and press it
until the battery latch is automatically closed; charging starts
automatically.
Figure 4 - Spare Battery Insertion
To remove the battery, press the battery-release lever.
Figure 5 - Spare Battery Removal
