Datalogic Kyman-NET Single Cradle Desk Manual

TECHNICAL FEATURES
Kyman-NET™ Single Cradle Desk
Electrical Features
Power Supply* from 12 to 14 VDC± 5%
Consumption Max. 2.5 A
Power on LED (green)
Indicators
Spare battery charge LED (bi-colored)
Charge Time Li-Ion Battery: max. 2.5 hours
Communication Features
Interface RS232, USB 1.1 version
Baud Rate RS232 = up to 115200 b/sec; USB = up to 12 Mb/sec
Environmental Features
Working Temperature** 0° to +40 °C (+32° to +104 °F)
Storage Temperature -20° to +70 °C (-4° to +158 °F)
Humidity 90% non condensing
Degree of Protection IP30
Mechanical Features
Dimensions 188 x 120 x 135 mm (7.40 x 4.72 x 5.31 in)
Weight 690 g (24.33 oz)
* Recommended power supply: 94ACC4595 FPS18 W/O POWER CORD.
FCC COMPLIANCE
Modifications or changes to this equipment without the expressed written approval of Datalogic could void
the authority to use the equipment.
This device complies with PART 15 of the FCC Rules. Operation is subject to the following two conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any interference
received, including interference which may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant
to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment. This equipment generates,
uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instruction manual, may cause harmful interference to radio communications. Operation of this equipment
in a residential area is likely to cause harmful interference in which case the user will be required to
correct the interference at his own expense.
822000632 (Rev. C)

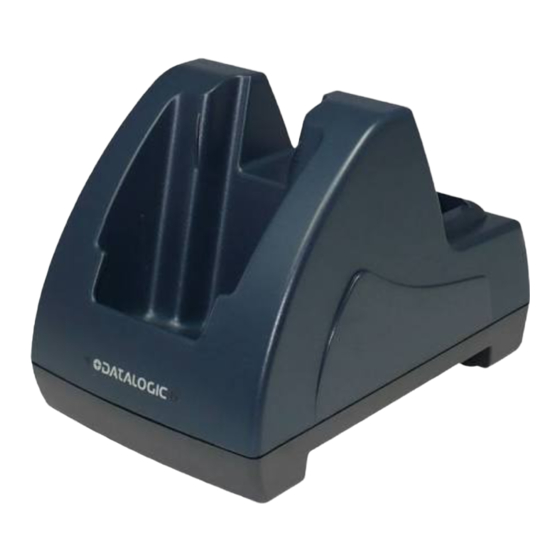

Kyman-NET™ Single Cradle Desk
The Kyman-NET™ Single Cradle Desk paired with one Kyman-NET™ mobile computer builds a reading
system for the collection, decoding and transmission of barcoded data.
The communication between the mobile computer and host PC through the Kyman-NET™ Single Cradle
Desk may occur also by using the standard ActiveSync® connection.
A

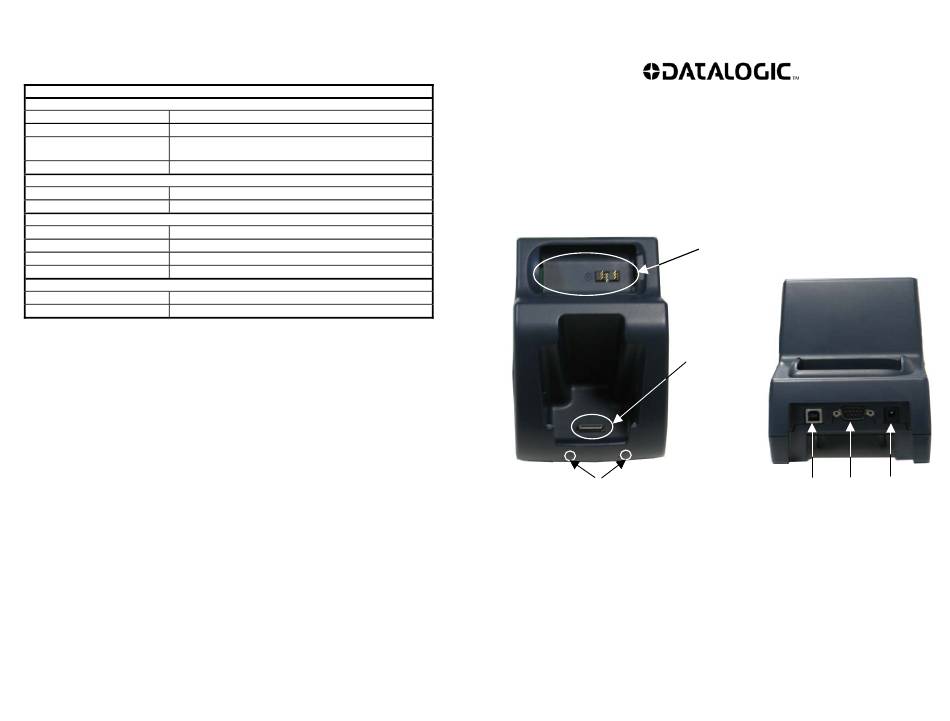

Figure 1 – Kyman-NET™ Single Cradle Desk
A) LED Indicators
B) Mobile Computer Contacts
C) Spare Battery Slot
The Kyman-NET™ Single Cradle Desk is a serial communication adapter between the host computer and
the Kyman-NET™ mobile computer, and as such, no power supply is required to be connected to the
Cradle for communications.
Since the Kyman-NET™ Single Cradle Desk also functions as a battery charger, a power supply is
required for battery recharging operations, both for the mobile computer and spare battery pack
recharging.
C
B
D E
D) USB Type B Connector
E) RS232 Connector
F) Power Jack
F
