The Original ScrapBox Ultimate Sewing Box Assembly Instructions Manual page 35

CR O W N INS TA LLA T I ON

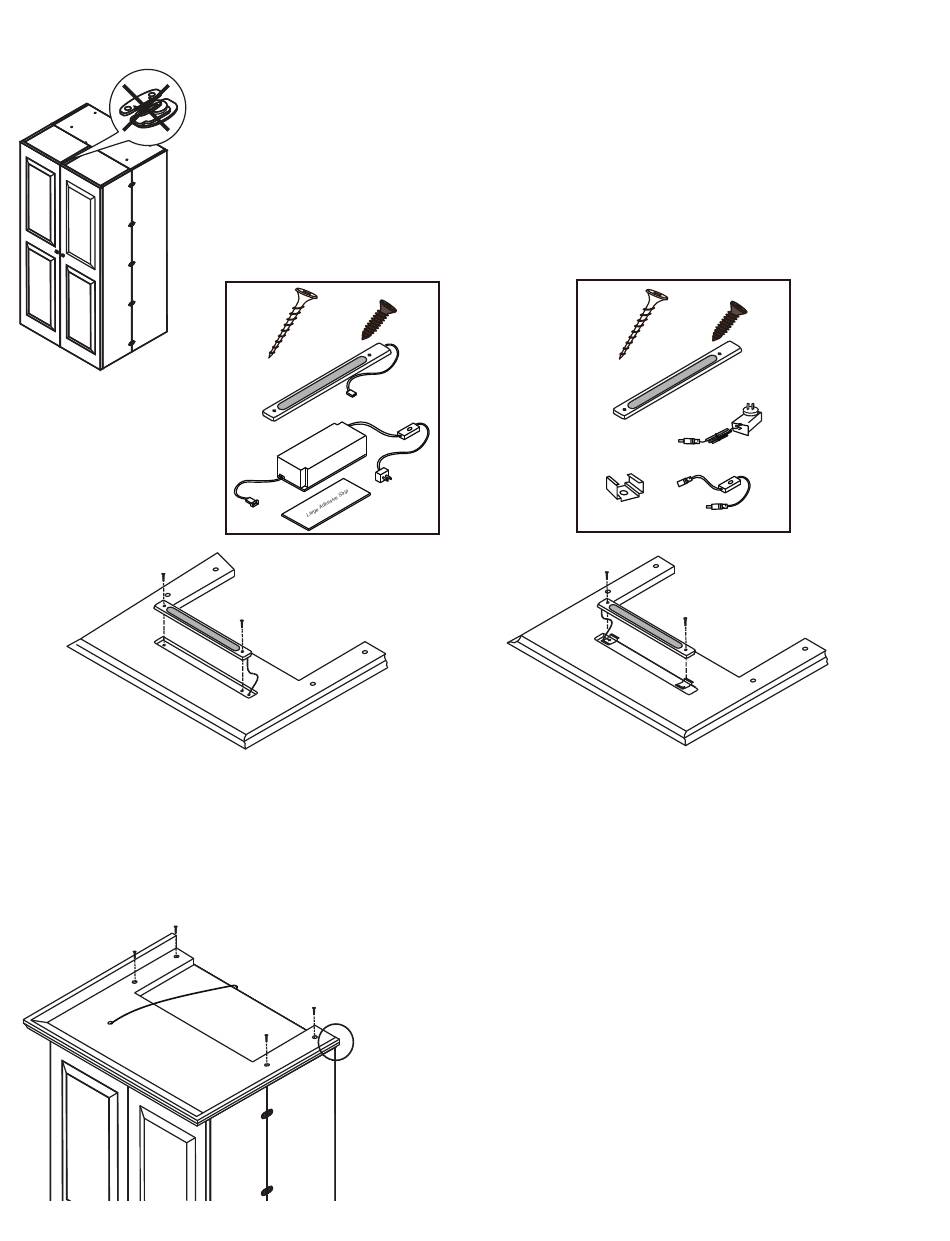

(A) 3. Remove 2 rubber plugs from light. Attach
the light into the crown with 2 included screws.
Make sure to leave plenty of room for the cord to
go through the opening. Also be careful not to
screw into the cord.
Proprietary, patented product and assembly instructions. Do not copy or distribute.
1. Remove sash lock from the top of box.
2. Make sure both Left and Right Boxes are level with the Center Box. If not level, you
may need to adust some of the hinges.
*It is critical that Left, Right and Center box be level with one another to avoid
scraping the crown when opening and closing the box.
(A) Light Kit
14mm Screw
1 1/2" Screw
2
x
4
x
Custom Fit
1
x
LED Light
Transformer
1
x
4. Set the crown on top of the Center Box matching the back ends as
shown in the left picture (Use two people: one to hold the crown in
palce and one to screw in (4) 1.5 inch screws).
5. Attach crown to top of box by screwing (4) self-tapping screws
through the (4) pilot holes in the top of crown. While your box may
have predrilled holes for the crown, they are not needed. Align the
crown to the back edge of the box.
(B) Light Kit
1 1/2" Screw
4
x
Custom Fit
LED Light
Plug & Cord
Bracket
On/Off Switch
2
x
(B) 3. Attach 2 brackets to crown using 2
included screws. Make sure you leave plenty of
room to feed cord through the opening. Also
take care not to screw into cord. Clip the light
bar into the installed brackets.
14mm Screw
2
x
1
x
1
x
1
x
35
