H3C SecPath M9000-S NSQM2MPUD0 Manual

Manual version: APW100-20171225
H3C SecPath M9000-S NSQM2MPUD0 main
1 Identifier
The module identifier NSQM2MPUD0 is at the upper right corner of the front panel.

2 Specifications

The NSQM2MPUD0 MPU has a console port, a USB port, a Mini USB console port, two
10/100/1000Base-T copper ports, and two GE SFP fiber ports.

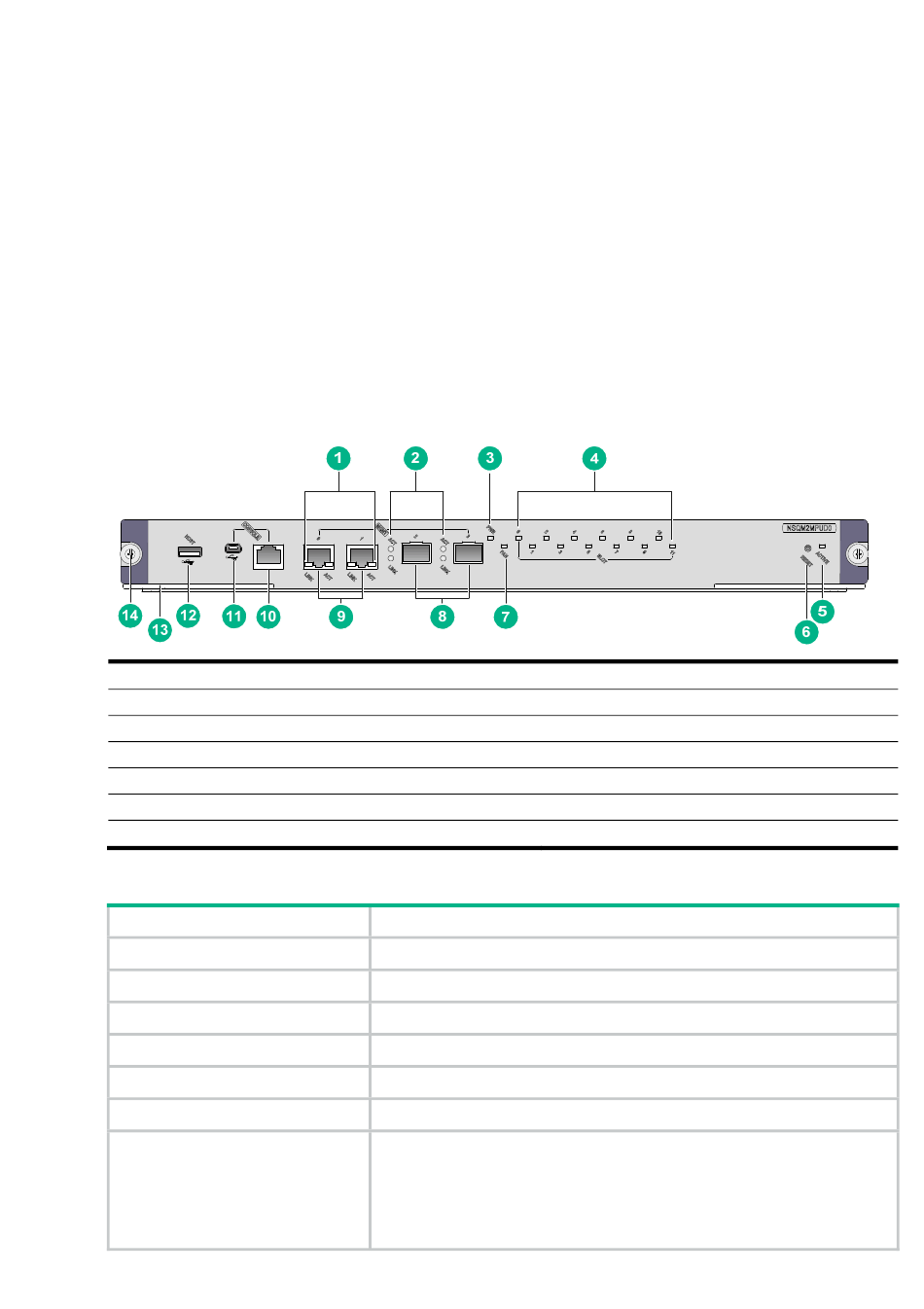

Figure 1 Front panel
(1) 10/100/1000Base-T copper port LEDs (LINK and ACT)
(3) Power module status LED (PWR)
(5) Active/standby state LED (ACTIVE)
(7) Fan tray status LED (FAN)
(9) 10/100/1000Base-T copper port
(11) USB console port
(13) Ejector lever
Table 1 Module specifications
Item
Flash
SDRAM (DDR3)
Dimensions (H × W × D)
Power consumption
Weight
Hot swapping
Port
processing unit
Specifications
1 GB
4 GB
45 × 399 × 355 mm (1.77 × 15.71 × 13.98 in)
45 to 86 W
4 kg (8.82 lb)
Supported
•
1 × console port
•
1 × USB console port
•
1 × USB 2.0 port
•
4 × network management ports, including two 10/100/1000Base-T
ports and two SFP ports
i
(2) SFP port LEDs (LINK and ACT)
(4) Module status LEDs
(6) Reset button (RESET)
(8) GE SFP fiber port
(10) Console port (CONSOLE)
(12) USB port
(14) Captive screw
BOM: 3123A1Q1
