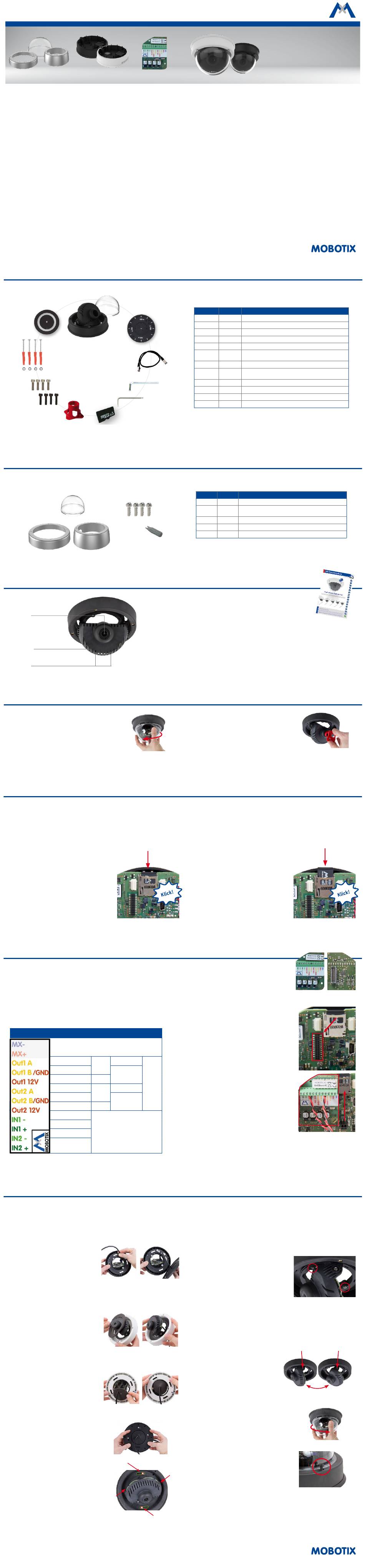

Mobotix v26 Quick Install

Accessories
v26 Indoor Camera
Vandalism Set / Vandalism Set for
On-Wall Set with Audio
Mx-M-OWA-AU / Mx-M-OWA-AU-b
MX-MT-v25-V / MX-MT- -V-XL
• Mx6 system platform with H.264 and ONVIF compatibility
• Includes MxAnalytics video analysis tools out-of-the-box
• Recording on internal SD card (SDXC, SDHC pre-installed)
• Microphone and speaker using optional accessory (On-Wall set with
audio)
• Lens tilt angle manually adjustable from 0° to 90°
• Enhanced tamper protection with optional vandalism set
• Sensor for temperature
• Simple installation on ceilings, optional On-Wall set
Delivered Parts
1.12
1.1
1.11
1.10
1.9
1.8
Delivered Parts Vandalism Set/Vandalism Set for On-Wall Set with Audio
Except for the vandalism ring, the delivery of both sets is identical (items 2.1 and 2.1 a).
2.1
Connecting the v26
Lens
Key
LEDs
Installing the Lens
1. Remove the dome
Unscrew the dome by turning it counterclock-
wise).
After initial operation of the camera, remember to adjust the focus of the lens (see «Initial Operation of the v26» ).
Inserting /Exchanging the SD Card
All camera models can use the integrated microSD card (SDXC) to record video data. In order to exchange the microSD card, please proceed as outlined
in the following instruction. For information on reliable SD cards, please see the MOBOTIX website www.mobotix.com > Support > MX Mediathek >
Planung in the document MicroSD Card Whitelist for MOBOTIX Cameras .
When replacing the SD card, make sure that recording has been deactivated in the browser ( Admin Menu > Storage > Storage on External File Ser-
ver / Flash Device ; activate recording again in the same dialog). To get to the back of the main board, you may have to loosen the screws at the left
and right side of the main board support, and tilt the main board support slightly forward (see «Installing the v26», Step 7).
1. Remove the SD card
If a microSD card has been installed, gently press
with your finger as indicated by the arrow until
you hear a click. Then release the SD card. The
card is protruding slightly and can be easily
removed.
Installing the MxIOBoard-IC
For the v26, you can use the optionally available MxIOBoard-IC to attach external sensors using the signal inputs and to
switch other devices via the signal outputs. To attach the MxIOBoard-IC Module, you need to remove the dome, You may
also have to loosen the screws at the left and right side of the main board support, and tilt the main board slightly forward
(see «Installing the v26», step 7 ).
1. Attach the connection cables
Attach the connection cables as shown in the terminal connector overview.
Klemmenbelegung
The MxBus functionality can only be used with a later
hardware version of the camera.
Output 1 A
Output 1 B/GND
Output 1 12 V
Output 2 A
Output 2 B/GND
Output 2 12 V
Input 1 –
Input 1 +
Input 2 –
Input 2 +
Installig the v26
Use the drilling template on the back for this step. Mark the holes for dowels or screws If required, drill the holes for the dowels, push them in and
attach the v26 with dowels and screws.
1. Connect the cables
Guide the cables (network cable, USB
cable and signal input/output wires)
through the cut-out in the sealing. When
doing this, make sure that you do not
damage the cables/wires. Connect the
cables/wires to the v26.
2. Mount the reflection protection
To avoid reflections within the interior
of the white housing, you should apply
the supplied reflection protection (two
pieces, item 1.12). In the black housing,
the protection also covers the silver-col-
ored screws. Place the ring around the
main board support. Press the ring into the recess of the housing. Turn the
housing on its back.
Now take the disc and pull it gently
apart at the cut. Place the disc around
the cables where the sealing and the
housing meet. Push the disc down on
the opening in the housing.
3. Place sealing on v26
Place the sealing on the back of the v26
as shown.
4. Install the v26
Press the camera and the wall sealing
against the ceiling and align the holes
with the holes for the dowels/screws.
You may have to loosen the fastening
screws (see below) and rotate the main
MxIOBoard-IC
On-Wall Set with Audio
for signal inputs/outputs
Mx-A-IOA-IC
1.2
1.3
1.4
1.5
1.7
1.6
2.2
2.3
2.4
2.1 a
–
Relay,
iso-
lated
Output 1
12 V self-pow-
– ered
Out-
puts
Relay, –
iso-
lated
Output 2
12 V self-pow-
ered
–
Inputs
Quick Install

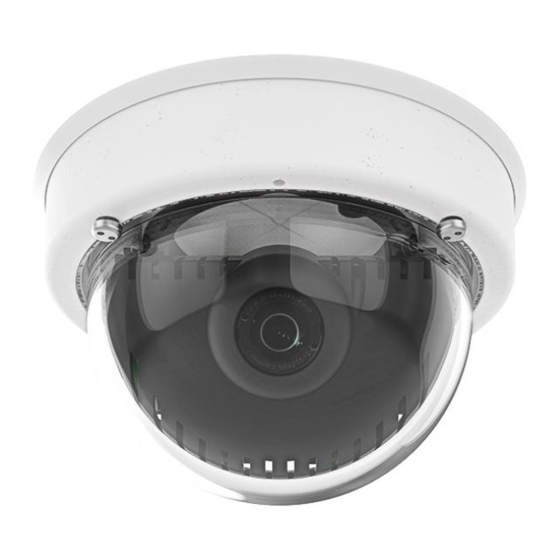

v26 Indoor Camera
Indoor Camera With Optional
Vandalism Set
MOBOTIX 6MP camera (day or nicht variants) for indoor
use, can be fitted with MX-B036 to MX-B237 lenses. With
optional Vandalism set for indoor applications in critical
environments (stainless steel ring and reinforced dome).
More information:
www.mobotix.com > Products > Indoor Cameras > v26
32.860-001_EN_06/2017
Item Count Part Name
1.1 1
v26 with standard dome
1.2 1
Sealing
1.3 1
Ethernet patch cable, 50 cm/19.7 in, black
1.4 1
Allen wrench 2.5 mm
1.5 1
Torx wrench TX20
1.6 1 MicroSD card pre-installed (SDHC montiert, SDXC sup-
ported)
1.7 1
Lens wrench, red
1.8 4 Allen screws M4x16 mm, black (for black housing)
Allen screws M4x16 mm, silver-colored (for white housing)
1.9 4
Stainless steel washers Ø 5.3 mm
1.10 4
Dowels 8 mm
1.11 4
Stainless steel wood screws with Torx head 4.5x60 mm
1.12 1
Reflection protection
Item Count Part Name
2.1 1 Vandalism ring
Vandalism ring
2.1a 1
(Vandalism set for On-Wall set with audio)
2.2 1 Vandalism dome, reinforced
2.3 4 Security screws
2.4 1 Screwdriver bit for security screws
For information on connecting the v26, please see
the D25 Camera Manual, Section 2.9, «Network and
Power Connection» .
Regarding the initial operation of the v26, please see
the D25 Camera Manual in Chapter 3, «Initial Operation» .
Use a suitable device for operating the camera key (e.g., a screw driver).
2. Install the lens
Using the red lens wrench, screw the lens into
the lens mount.
2. Insert the SD card
Insert the microSD card and gently press with
your finger as indicated by the arrow until you
hear another click .
Make sure that the SD card is fully inserted.
2. Insert the MxIOBoard-IC
Hold the MxIOBoard-IC over the receptacle
on the main board (red arrow in figure). Make
sure that the green terminal connector block is
pointing upward (towards the SD card, see red
arrow in figure).
Use one finger to carefully press the board of
the module onto the receptacle. Make sure that
the MxIOBoard-IC is fully inserted.
board support to get to these screws. Insert the screws with washers and
tighten them.
5. Adjust viewing direction
Release the fastening screws and rotate the
camera into the desired viewing direction.
Tighten the screws (torque 0,4 Nm) again once
you are finished.
6. Start the camera and focus the lens
For the first start of the camera and for adjusting the focus of the lens, see
«Initial Operation of the v26» .
7. Set the tilt angle of the lens
Make sure that the lens is tilted properly.
If this is not the case, loosen the screws
to the right and left of the mainboard
support and tilt the camera. Tighten
the screws again once you are finished.
8. Install the dome
Mount the dome. If you are using the vandalism
set, install the reinforced vandalism dome instead.
9. Close the screw holes
If you do not use the vandalism set, you should
close off the four holes using the supplied black
or silver screws, depending on the color of the
set.
