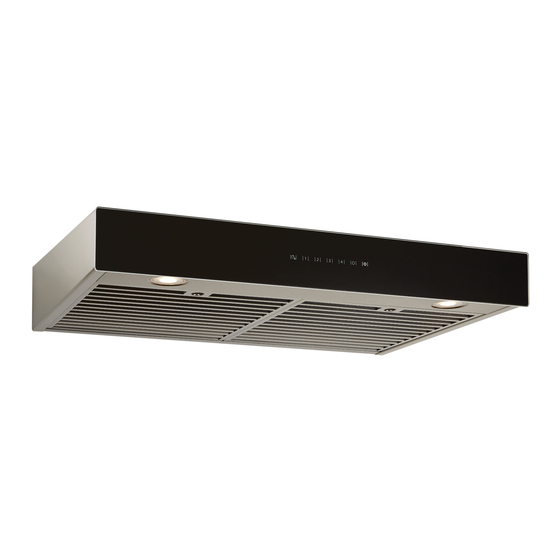

Best UCB3I Series Installation Instructions Manual

Hide thumbs Also See for UCB3I Series:
Table of Contents

Advertisement

Quick Links

Download this manual
INSTALLATION INSTRUCTIONS
HB0313
UCB3I SERIES
!
!
INTENDED FOR DOMESTIC COOKING ONLY
READ AND SAVE THESE INSTRUCTIONS
INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER.
HOMEOWNER: USE AND CARE INFORMATION ON PAGES 8 AND 9.
BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711
BEST; Drummondville, QC, Canada www.BestRangeHoods.ca 866-737-7770
23864 rev. 03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the UCB3I Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Best UCB3I Series

Summary of Contents for Best UCB3I Series

  • Page 1 INTENDED FOR DOMESTIC COOKING ONLY READ AND SAVE THESE INSTRUCTIONS INSTALLER: LEAVE THIS MANUAL WITH HOMEOWNER. HOMEOWNER: USE AND CARE INFORMATION ON PAGES 8 AND 9. BEST; Hartford, Wisconsin www.BestRangeHoods.com 800-558-1711 BEST; Drummondville, QC, Canada www.BestRangeHoods.ca 866-737-7770 23864 rev. 03...
  • Page 2 5. The minimum hood distance above cooktop must not be shards rather than the classic tiny piece pattern. less than 24". A maximum of 30" above cooktop is highly recommended for best capture of cooking impurities. For a 11. When applicable...

  • Page 3: Table Of Contents

    The ducting from this fan to the outside of the building has a strong effect on the air flow, noise and energy use of the fan. Use the shortest, straightest duct routing possible for best performance, and avoid installing the fan with smaller ducts than recommended. Insulation around the ducts can reduce energy loss and inhibit mold growth.

  • Page 4: Prepare The Installation

    2. PREPARE THE INSTALLATION WARNING When performing installation, servicing or cleaning the unit, it is recommended to wear safety glasses and gloves. NOTE: Before proceeding to the installation, check the contents of the box. If items are missing or damaged, contact the manufacturer. Make sure that the following items are included: - Hood - Accessories:...

  • Page 5: Install Glass Panel

    3. PREPARE THE HOOD ( CONT 3.2 F 30” WIDE HOODS Remove the 7 screws (A only) retaining the bottom panel, and set aside. 36” WIDE HOODS Remove the 8 screws (A and B) retaining the bottom panel and set aside. HO0246 Using both hands, gently pull on the blower wheel to remove.

  • Page 6: Install The Adapter/Damper

    5. INSTALL THE ADAPTER/DAMPER ( ALL MODELS The wall duct must be roughed-in to properly interface with the hood. Before performing the installation, make sure the adapter fits easily in the duct. If this hood replaces an existing hood, please note that location of the air exhaust can vary from one manufacturer to another. ORIZONTAL ISCHARGE CREW LOCATIONS...

  • Page 7: Install The Hood

    6. INSTALL THE HOOD Run power cable to installation location. Position the hood in its intended location. Using a pen, mark the position of the screws (as shown at right). Remove the hood. HD0554 Install the first four no. 8 x 1/2’’ screws, leaving a 1/8’’ gap (do not install screws nos. 5, 6, 7, 8 and 9 yet). Install the wire clamp and insert the power cable in the hood.

  • Page 8: Reinstall Hybrid Filters

    9. REINSTALL THE HYBRID FILTERS CAUTION Remove protective plastic film covering filters before reinstalling them. Rest rear filters edge on filter springs in the range hood. Tilt up the filters into position. Make sure filter tabs are securely engaged in range hood front edge slots after installation.

  • Page 9: Operation

    12. OPERATION Always turn your hood on before you begin cooking to establish an air flow in the kitchen. Let the blower run for a few minutes to clear the air after you turn off the range. CAUTION After a power failure or during the range hood power up, a 5-second booting sequence is executed. Wait for the control backlighting to turn off before use.

  • Page 10: Wiring Diagram

    13. WIRING DIAGRAM WARNING Risk of electric shock. Electrical wiring must be done by qualified personnel in accordance with all applicable codes and standards. Before connecting wires, switch power off at service panel and lock service disconnecting means to prevent power from being switched on accidentally. COLOR CODE BLACK BLUE...

  • Page 11: Service Parts

    14. SERVICE PARTS HL0448 IDTHS ART NO ESCRIPTION 30" 36" SV09953XX* G 30” LASS ANEL SV09954XX* G 36” LASS ANEL SV22427 LECTRONIC ONTROL 62612 MODULE SV01766E HEEL AND MOTOR SV62053 15.875” 14” x 0.5” YBRID FILTER SV21189 OWER SV07325 RANSFORMER 62248 DRIVER AND CONNECTION HARNESS SV02160...

  • Page 12: Warranty

    All illustrations and specifications in this catalog are based on the latest product information available at time of production. Broan-NuTone, LLC and BEST® reserves the right to make changes at any time, without notice, in prices, colors, materials, equipment, specifications and models, place of manufacture and to discontinue models or equipment.
