Helmer Scientific i.Series Instructions For Use And Operation Manual

Upright - undercounter, laboratory/blood bank/pharmacy
Hide thumbs Also See for i.Series:
Table of Contents

Advertisement

Quick Links

See also: Operating Manual
Laboratory
i.Series
iLR105-GX, iLR113-GX, iLR120-GX,
iLR125-GX, iLR245-GX, iLR256-GX
Horizon Series
HLR105-GX, HLR113-GX, HLR120-GX,
HLR125-GX, HLR245-GX, HLR256-GX
Blood Bank
i.Series
iBR105-GX, iBR113-GX, iBR120-GX,
iBR125-GX, iBR245-GX, iBR256-GX
Horizon Series
HBR105-GX, HBR113-GX, HBR120-GX,
HBR125-GX, HBR245-GX, HBR256-GX
Pharmacy
i.Series
iPR105-GX, iPR113-GX, iPR120-GX,
iPR125-GX, iPR245-GX, iPR256-GX
Horizon Series
HPR105-GX, HPR113-GX, HPR120-GX,
HPR125-GX, HPR245-GX, HPR256-GX

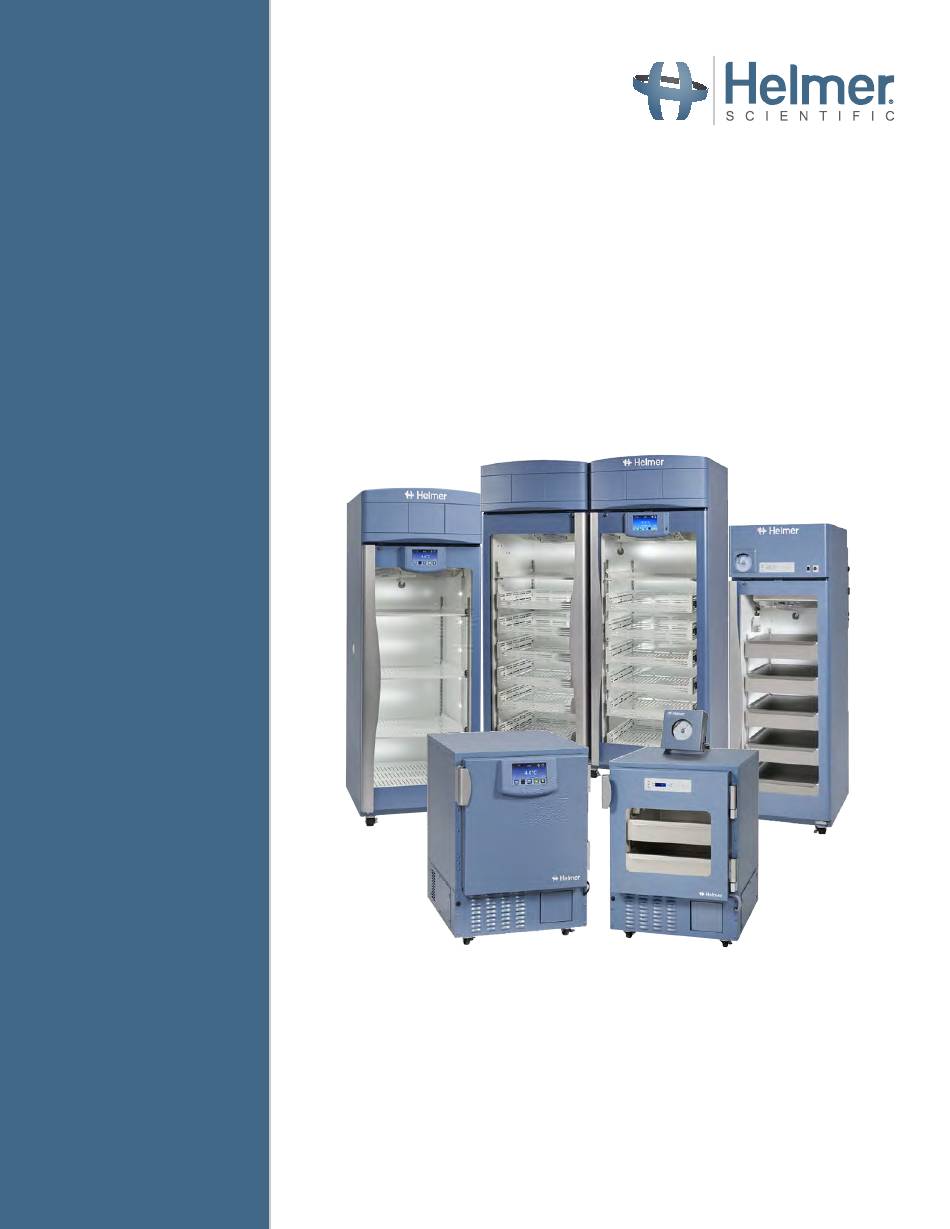

Refrigerator Instructions for Use
and Operation Manual
®
i.Series
· Horizon Series™
Upright - Undercounter
360414/A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the i.Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Helmer Scientific i.Series

Summary of Contents for Helmer Scientific i.Series

  • Page 1 Refrigerator Instructions for Use and Operation Manual ® i.Series · Horizon Series™ Upright - Undercounter Laboratory i.Series iLR105-GX, iLR113-GX, iLR120-GX, iLR125-GX, iLR245-GX, iLR256-GX Horizon Series HLR105-GX, HLR113-GX, HLR120-GX, HLR125-GX, HLR245-GX, HLR256-GX Blood Bank i.Series iBR105-GX, iBR113-GX, iBR120-GX, iBR125-GX, iBR245-GX, iBR256-GX...
  • Page 2 Helmer Scientific. Helmer Scientific assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this material. For the purpose of clarity, Helmer Scientific considers only the most recent revision of this document to be valid.

  • Page 3: Table Of Contents

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Contents About this Manual ....................1 Intended Audience .

  • Page 4: About This Manual

    Models are indicated by a distinguishing model number that corresponds to the series, type, number of doors, and capacity of the refrigerator. For example, “iLR113-GX” refers to an i.Series Laboratory Refrigerator with 1 door and a capacity of 13 cu ft.
  • Page 5 Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Symbols found on the units The following symbols may be found on the refrigerator or refrigerator packaging: Warning: Crushing of hands / fingers Caution: Risk of damage to equipment or danger to operator Caution: Hot surface Danger: Risk of Fire or Explosion.

  • Page 6: Avoiding Injury

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Avoiding Injury • Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. • Do not damage the refrigerant circuit.

  • Page 7: Installation

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Installation Location Keep all ventilation openings in the enclosure or, in the structure of building-in, clear of obstruction. ♦ Has a grounded outlet meeting the electrical requirements listed on the product specification label. ♦ Is clear of direct sunlight, high temperature sources, and heating and air conditioning vents.

  • Page 8: Ac Power Cord

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ AC Power Cord Use manufacturer supplied power cord only. Install power cord If packaged with modular cord, insert plug securely into the refrigerator power receptacle prior to connecting to grounded outlet.

  • Page 9: Chart Recorder (If Included)

    Place chart recorder probe in bottle or ballast with primary monitor probe. Set up and Operation Access the chart recorder by pressing and releasing the door (i.Series except 113 models) or pulling the door open (Horizon Series, 113 models and undercounter models).
  • Page 10 Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Install / Replace Chart Paper Note For accurate temperature reading, ensure the current time is aligned with the time line groove when the chart knob is fully tightened.

  • Page 11: I.series ® Operation

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ i.Series ® Operation Initial Power-Up 1. Plug the power cord into a grounded outlet that meets the electrical requirements on the product specification label. 2. Turn the AC power switch ON. 3. Turn the back-up battery switch ON. Notes • For models equipped with optional Access Control, the back-up battery is turned ON with a key switch.

  • Page 12: Operation

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Operation Notes • Refer to the i.C User Guide for complete information regarding the i.C User Interface. • The i.C³ Home screen displays temperature and alarm information, and provides icons to gain access to other functions of the i.C³.

  • Page 13: Set Alarm Parameters

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Set Alarm Parameters > > Enter the Settings password. Scroll down to select Alarm Settings. Touch minus (-) or plus (+) on the spin box to set each alarm parameter.

  • Page 14: Active Alarms

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Active Alarms Home screen with active alarm Table 1. i.Series Active Alarms Alarm Description Communication Failure 1 Communication lost between i.C display board and control board Configuration file is corrupt or i.C is unable to access the configuration file...

  • Page 15: Light Operation (If Installed)

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Light Operation (if installed) Press Light Icon to turn LED lights ON or OFF. Auto ON/OFF feature can be configured in Settings. Light ON/OFF Table 2. Application Icons Icon Icon Icon Description Description Description Icon...

  • Page 16: Min/Max Temperature Monitoring

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Min/Max Temperature Monitoring The Min/Max temperature display provides the highest and lowest Primary Monitor probe temperature reading since the last system reset (power-on event) or manually-initiated reset. Touch the Reset icon to the right of the display to manually reset.

  • Page 17: I.series ® Access Control (Optional)

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ i.Series ® Access Control (Optional) Allows user-specific secure access to the refrigerator. Notes • During a power failure, the optional Access Control lock will remain locked until battery power is depleted or until the back-up battery key switch is switched OFF.

  • Page 18: Horizon Series Operation

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Horizon Series ™ Operation Initial Power-Up 1. Plug the power cord into a grounded outlet that meets the electrical requirements on the product specification label. 2. Switch the AC ON/OFF switch ON. 3. Install 9 V back-up battery provided (undercounter battery located in literature box; upright battery located on top of unit).

  • Page 19: Change Temperature Setpoint

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ View recorded temperature timer Notes • The timer denotes the period of time that has elapsed. It does not display the time at which a minimum or maximum temperature occurred.

  • Page 20: Set Parameter Values

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Set Parameter Values Press and hold the Up and Down Arrows simultaneously for 3 seconds to enter program mode. The LED Display will show .C or .F to indicate Celsius or Fahrenheit.

  • Page 21: 6.7 Temperature Calibration Offsets

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ 6.7 Temperature Calibration Offsets Temperature calibration offsets indicate an acceptable margin of error between the actual temperature value and the desired temperature value. Monitor Offset ♦ Value is factory-set to match a calibrated reference thermometer. ♦ Refer to the service manual for instructions regarding changing the Monitor Offset. Control Sensor Offset and Hysteresis The control sensor affects the reading of the control probe temperature and therefore the actual temperature of the refrigerator. This should not be adjusted from the original setting unless directed by Helmer Technical Service.

  • Page 22: Horizon Series Access Control (Optional)

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Horizon Series ™ Access Control (Optional) Allows user-specific secure access to the refrigerator. Notes • During a power failure, the optional Access Control lock will remain locked until battery power is depleted or until the back-up battery key switch is switched OFF.

  • Page 23: Product Specifications

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Product Specifications Operating Standards These units are designed to operate under the following environmental conditions: ♦ Indoor use only ♦ Altitude (maximum): 2000 m (120,125, 245, and 256 models); 3000 m (105 and 113 models) ♦...
  • Page 24 Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Table 6. Refrigerator Specifications Dimensions W x H x D in. (mm) Net Wt. Cu. Ft/ lbs (kg) Model Voltage Code Amps Liters Cabinet Door Exterior* 115V 60 Hz 24.3 x 31.9 x 28.1...
  • Page 25 Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Dimensions W x H x D in. (mm) Net Wt. Cu. Ft/ lbs (kg) Model Voltage Code Amps Liters Cabinet Door Exterior* 115V 60 Hz Single hinged 29.5 x 78.3 x 37.7...

  • Page 26: Compliance

    Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ Compliance Safety Compliance This device complies with the requirements of directive 93/42/EEC concerning Medical Devices, as amended by 2007/47/EC. 0086 This product is certified to applicable UL and CSA standards by a NRTL. This product is IECEE CB Scheme certified and complies with national differences for safety certification beyond IEC 61010-1-12 3rd edition. Environmental Compliance This device complies with the 2011/65/EU Directive for the Restriction of Hazardous Substances (RoHS).
  • Page 27 Helmer Scientific i.Series - Horizon Series Refrigerator Instructions for Use ® ™ 360414/A...
  • Page 28 Helmer Scientific 14400 Bergen Boulevard, Noblesville, IN 46060 USA 360414/A Copyright © 2019 Helmer, Inc.
