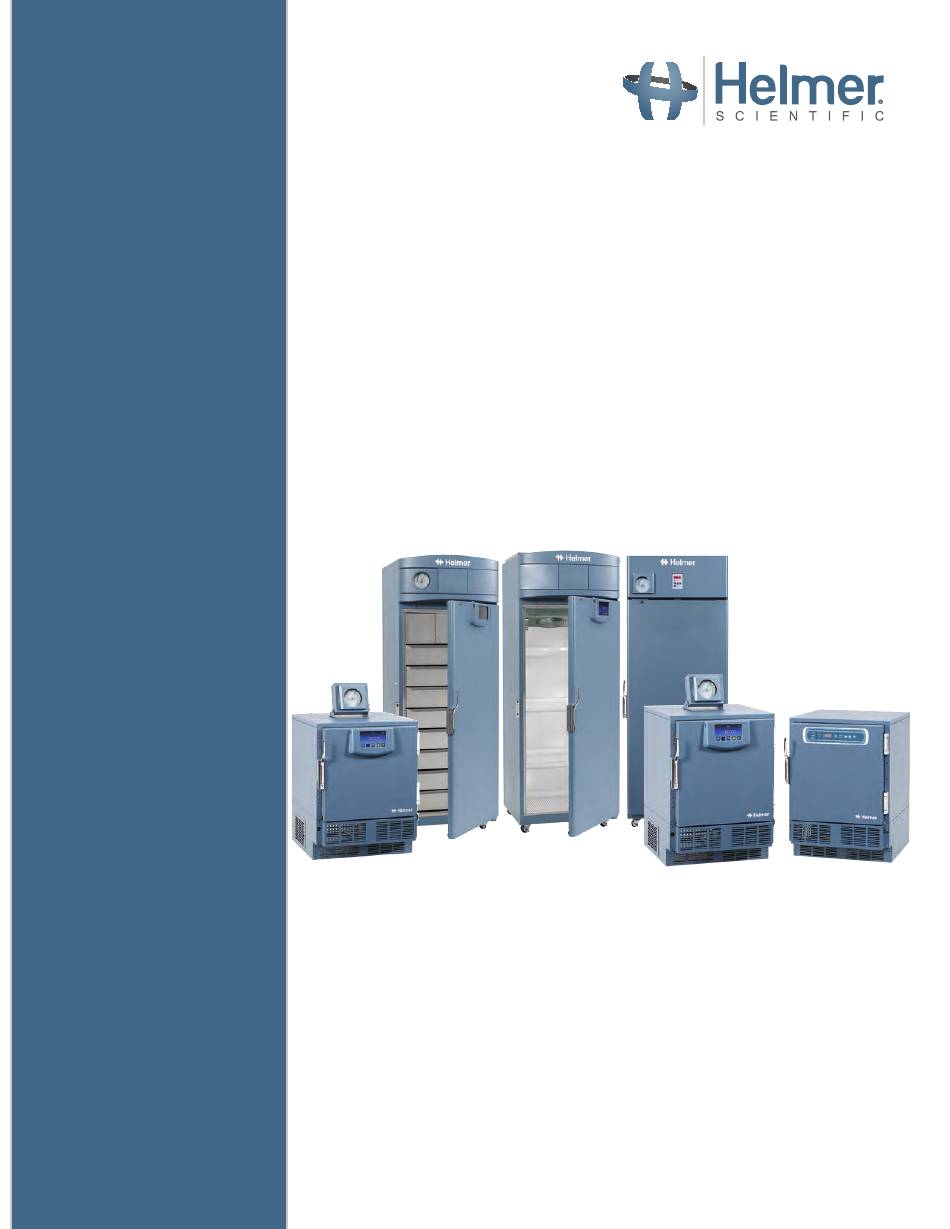

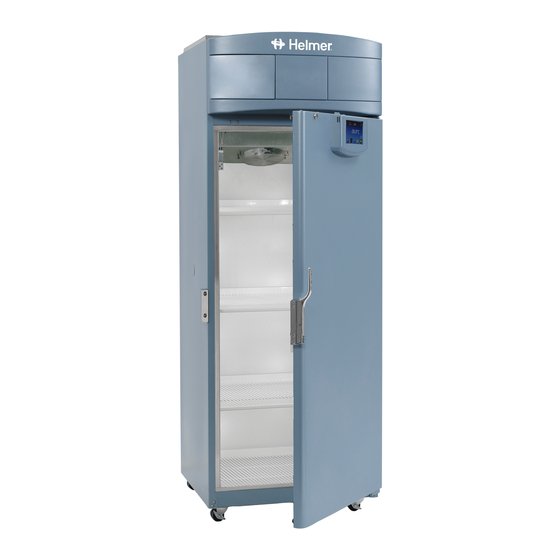

- Page 1 Freezer Instructions for Use i.Series™ and Horizon Series™ Upright - Undercounter Laboratory i.Series iLF104-ADA iLF105 iLF120 iLF125 Horizon Series HLF104-ADA HLF105 HLF120 HLF125 Plasma Storage i.Series iPF104-ADA iPF105 iPF120 iPF125 Horizon Series HPF104-ADA HPF105 HPF120 HPF125 360380-ENG/B...
- Page 2 Helmer Scientific. Helmer Scientific assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this material. For the purpose of clarity, Helmer Scientific considers only the most recent revision of this document to be valid.
-
Page 3: Table Of Contents
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Contents About this Manual ....................1 Intended Audience . -
Page 4: About This Manual
Models are indicated by a distinguishing model number that corresponds to the series, type, and capacity of the freezer. For example, “iLF105” refers to an i.Series Laboratory Freezer with 1 door and a capacity of 5 cu ft. Intended Use Helmer freezers are intended for the storage of blood products and other medical and scientific products. -
Page 5: Avoiding Injury
♦ Use manufacturer supplied power cord only. ♦ Using the equipment in a manner not specified by Helmer Scientific may impair the protection provided by the equipment. ♦ Decontaminate parts prior to sending for service or repair. Contact Helmer or your distributor for decontamination instructions and a Return Authorization Number. -
Page 6: Installation
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Installation Location ♦ Has a grounded outlet meeting the electrical requirements listed on the product specification label. ♦ Is clear of direct sunlight, high temperature sources, and heating and air conditioning vents. -
Page 7: Temperature Probes
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Temperature Probes A probe bottle along with a container of propylene glycol have been provided with this unit. The propylene glycol is mixed with water to create a solution which simulates the product stored in the freezer. The product simulation solution temperature reflects the product’s temperature during normal operation. -
Page 8: Chart Recorder (If Included)
Prior to Use Place probe in bottle with primary monitor probe. Setup and Operation Access chart recorder by pressing and releasing (i.Series) or pulling door open (Horizon Series). i.Series chart door Horizon Series chart door Install Battery Connect the leads to the battery to provide back-up power to the chart recorder. - Page 9 Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Install / Replace Chart Paper Note For accurate temperature reading, ensure the current time is aligned with the time line groove when the chart knob is fully tightened.
-
Page 10: I.series ® Operation
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ ® i.Series Operation Initial Power-Up 1. Plug the power cord into a grounded outlet that meets the electrical requirements on the product specification label. 2. Turn the AC power switch ON. -
Page 11: Operation
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Operation Notes • Refer to the i.C User Guide for complete information regarding the i.C User Interface. • The i.C³ Home screen displays temperature and alarm information, and provides icons to gain access to other functions of the i.C³. -
Page 12: Set Alarm Parameters
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Set Alarm Parameters > > Enter the Settings password. Scroll down to select Alarm Settings. Touch minus (-) or plus (+) on spin box to set each alarm parameter. -
Page 13: Active Alarms
Freezer Instructions for Use ™ ™ Active Alarms Home screen with active alarm Table 1. i.Series Active Alarms Alarm Description Primary Monitor Probe High Temp Primary monitor probe reading is above high temperature alarm setpoint Primary Monitor Probe Low Temp... -
Page 14: Mute And Disable Active Alarms
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Mute and Disable Active Alarms Audible alarms may be muted by touching the Mute icon to set delay. Unmuted Muted Table 2. i.C Icon Reference Guide ® Icon... -
Page 15: Min/Max Temperature Monitoring
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Min/Max Temperature Monitoring The Min/Max temperature display provides the highest and lowest Primary Monitor probe temperature reading since the last system reset (power-on event) or manually-initiated reset. Touch the Reset icon to the right of the display to manually reset. -
Page 16: I.series ® Access Control (Optional)
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ ® i.Series Access Control (Optional) Allows user-specific secure access to the freezer. Notes • During a power failure, the optional Access Control lock will remain locked until battery power is depleted or until the back-up battery key switch is switched OFF. -
Page 17: Horizon Series
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ ™ Horizon Series Operation Initial Power Up 1. Plug the power cord into a grounded outlet that meets the electrical requirements on the product specification label. 2. Turn the AC power switch ON. -
Page 18: Display Minimum And Maximum Monitor Temperature Recordings
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Display Minimum and Maximum Monitor Temperature Recordings Notes • This feature is standard on Horizon Series™ models with serial numbers of 2015494 or higher. Some exceptions may exist. For confirmation on your unit, please contact Helmer Technical Service. -
Page 19: Set Parameter Values
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Set Parameter Values Press and hold the Up and Down Arrows simultaneously for 3 seconds to enter program mode. The LED Display will show .C or .F to indicate Celsius or Fahrenheit. -
Page 20: Set Alarm Setpoints (Parameters)
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Set Alarm Setpoints (Parameters) 1. Press and hold the Up and Down Arrows simultaneously for 3 seconds to enter program mode. 2. The LED Display will show ˚C or ˚F to indicate Celsius or Fahrenheit. -
Page 21: Horizon Series Access Control (Optional)
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Horizon Series ™ Access Control (Optional) Access Control allows user-specific secure access to the freezer. Notes • During a power failure, the optional Access Control lock will remain locked until battery power is depleted or until the back-up battery key switch is switched OFF. -
Page 22: Product Specifications
Grounded outlet, meeting national electric code (NEC) in the U.S. and local electrical requirements in all locations. Remote Alarm i.Series: 0.5 A at 125 V (AC) i.Series: 0.5 A at 30 V (RMS) i.Series: 0.5 A at 30 V (RMS);... - Page 23 Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Notes • Add 0.375” (10 mm) to width for optional access control. • Maximum load per drawer, shelf or basket - 100 lbs (46 kg). • The maximum height added with leveling feet or casters installed is 2” (51 mm), Table 7. Laboratory Freezer Specifications - Upright...
- Page 24 Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Table 9. Plasma Storage Freezer Specifications - Upright Dimensions W x H x D in. (mm) Net Wt. Cu. Ft/ Model Voltage Code Amps Liters Cabinet Door Drawers Exterior lbs (kg) 115V 60 Hz Single hinged 30.75 x 80 x 32.5...
-
Page 25: Compliance
Helmer Scientific i.Series - Horizon Series Freezer Instructions for Use ™ ™ Compliance Safety Compliance This device complies with the requirements of directive 93/42/EEC concerning Medical Devices, as amended by 2007/47/EC. This product is certified to applicable UL and CSA standards by a NRTL. - Page 26 Helmer Scientific 14400 Bergen Boulevard, Noblesville, IN 46060 USA 360380-ENG/B Copyright © 2020 Helmer, Inc.
