Helmer Scientific I Series Operation Manual

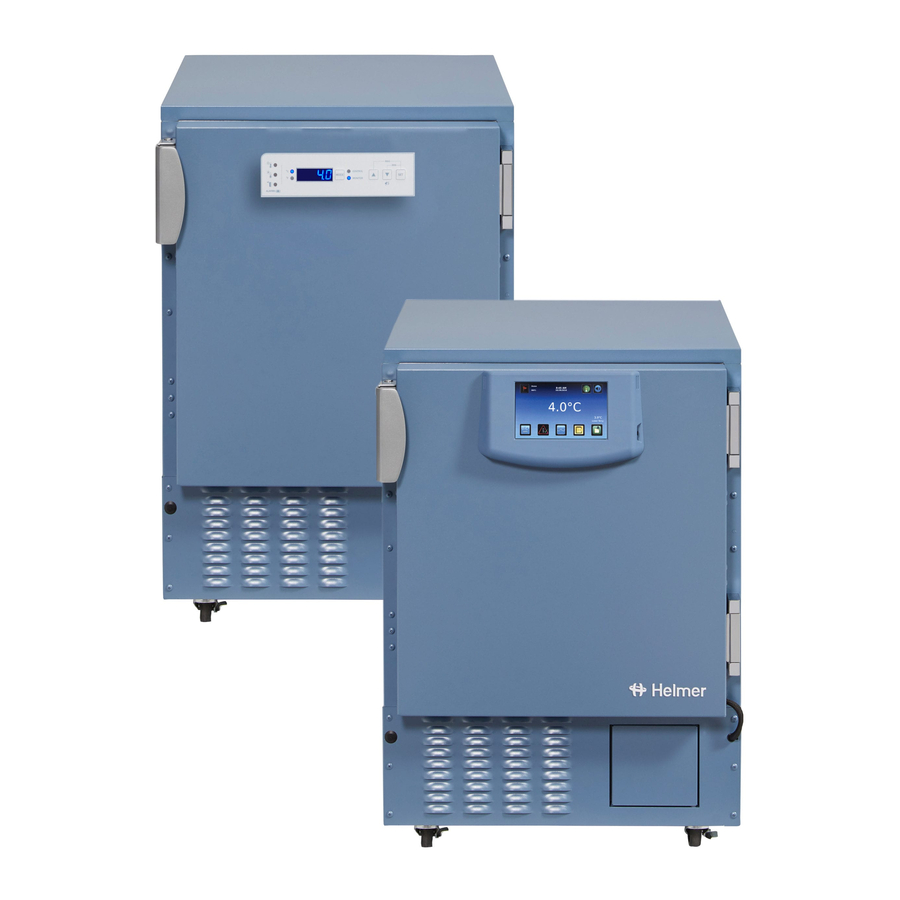

Undercounter freezer
Hide thumbs Also See for I Series:
Table of Contents

Advertisement

Quick Links

Download this manual
Undercounter Freezer Operation Manual
i.Series
and Horizon Series™
®
HELMER SCIENTIFIC
14400 Bergen Boulevard
Noblesville, IN 46060 USA
PH +1.317.773.9073
FAX +1.317.773.9082
USA and Canada 800.743.5637
360137-D/D
Model Group
i.Series
Plasma Storage
iPF105 (Version D)
Laboratory
iLF105 (Version D)
Horizon Series
HPF105 (Version D)
HLF105 (Version D)
0086
ISO 13485:2003 CERTIFIED

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the I Series and is the answer not in the manual?

Questions and answers

Related Manuals for Helmer Scientific I Series

Summary of Contents for Helmer Scientific I Series

  • Page 1 Horizon Series Plasma Storage iPF105 (Version D) HPF105 (Version D) Laboratory iLF105 (Version D) HLF105 (Version D) HELMER SCIENTIFIC 14400 Bergen Boulevard Noblesville, IN 46060 USA PH +1.317.773.9073 0086 FAX +1.317.773.9082 USA and Canada 800.743.5637 360137-D/D ISO 13485:2003 CERTIFIED...
  • Page 2 Helmer Scientific. Helmer Scientific assumes no responsibility or liability for any errors or inaccuracies that may appear in the informational content contained in this material. For the purpose of clarity, Helmer Scientific considers only the most recent revision of this document to be valid.

  • Page 3: Table Of Contents

    Contents Section I: General Information ........4 1 About this Manual .
  • Page 4 8 i.C³ Icon Reference Guide ..........14 ®...

  • Page 5: Section I: General Information

    1.4 Confidential / Proprietary Notices Use of any portion(s) of this document to copy, translate, disassemble or decompile, or create or attempt to create by reverse engineering or otherwise the information from Helmer Scientific products is expressly prohibited. Disclaimer This manual is intended as a guide to provide the operator with necessary instructions on the proper use and maintenance of certain Helmer Scientific products.

  • Page 6: Safety

    General Information Safety Includes general safety information for freezer operation. Labels Caution: Risk of damage Caution: Unlock all casters to equipment or danger to operator Caution: Hot surface Earth / ground terminal Caution: Shock/electrical Protective earth / ground hazard terminal Warning: Hazardous situation which could result in injury Avoiding Injury...

  • Page 7: Operating Standards

    General Information Operating Standards These units are designed to operate under the following environmental conditions: ► Indoor use only ► Altitude (maximum): 2000 m ► Ambient temperature range: 15 °C to 32 °C ► Relative humidity (maximum for ambient temperature): 80% for temperatures up to 31 °C, decreasing linearly to 50% at 40 °C ► Temperature control range: -15 °C to -30 °C ► Overvoltage category: II...

  • Page 8: Dimensions

    General Information Dimensions 4.3.1 Weight NOTE The weight may vary slightly depending on installed options. Weights provided are for standard configurations as shown. Model Configuration Weight Family 221 lbs 2 drawers 101 kg 215 lbs 2 shelves 98 kg 215 lbs 2 drawers 98 kg 209 lbs...

  • Page 9: Regulatory Compliance

    General Information Regulatory Compliance This device complies with the requirements of directive 93/42/EEC concerning Medical Devices, as amended by 2007/47/EC. 0086 Sound level is less than 70 dB(A). Emergo Europe Molenstraat 15 2513 BH The Hague, Netherlands WEEE Compliance The WEEE (waste electrical and electronic equipment) symbol (right) indicates compliance with European Union Directive WEEE 2002/96/EC and applicable provisions.

  • Page 10: Installation

    General Information Installation Location Requirements ► Has a grounded outlet meeting national electric code (NEC) and local electrical requirements. ► Is clear of direct sunlight, high temperature sources, heating vents, and air conditioning vents. ► Has a minimum of 3” (76 mm) of space behind the freezer for clearance and feature access. ► Meets the limits specified for ambient temperature and relative humidity.

  • Page 11: Chart Recorder

    General Information Chart Recorder Chart recorder with paper and battery installed. Label Description Function Left and Right Arrow Adjust settings and stylus position buttons Indicates status of chart recorder in operating mode, or selected temperature range in paper change mode Chart change button Adjust position of stylus when changing chart paper, or run a test pattern Stylus Mark temperature line on paper...

  • Page 12: Section Ii: I.series ® Models

    i.Series® Models Section II: i.Series Models ® Operation Initial Start Up Plug the power cord into a grounded outlet that meets the electrical requirements on the product specification label. Switch AC ON/OFF switch ON. Switch backup battery switch ON. NOTE ► For models equipped with the optional Access Control, the backup battery is switched on with a key switch.

  • Page 13: Set Alarm Parameters

    i.Series® Models 7.3 Set Alarm Parameters Control the conditions and timing of alarm condition indicators displayed on the i.C³ Home screen. Touch + or – on spin box to set > > Alarm Settings each parameter. 7.4 Normal Operation The i.C³ Home screen displays temperature and alarm information, and provides icons for reaching other functions of the i.C³.

  • Page 14: Mute And Disable Active Alarms

    i.Series® Models Mute and Disable Active Alarms Audible alarms may be muted by touching the Mute button to set delay. Unmuted Muted Access Control (Optional) Allows user-specific secure access to the freezer. NOTE ► During a power failure, the backup battery provides power to the monitoring system and the power failure alarm.

  • Page 15: Open Freezer With Access Control

    i.Series® Models 7.7.2 Open Freezer with Access Control ► Enter a valid PIN using the keypad. i.C³ Icon Reference Guide ® Home Download Scroll Arrows Event Log Upload Defrost Cycle Temperature Settings Defrost Log Graph i.C³ Applications Information Log Access Control Access Control Back Arrow Compressor Log Alarm Conditions Icon Transfer...

  • Page 16: Section Iii: Horizon Series™ Models

    Horizon Series™ Models Section III: Horizon Series™ Models Operation Initial Start Up Plug the power cord into a grounded outlet that meets the electrical requirements on the product specification label. Switch AC ON/OFF switch ON. Remove the 9 V battery from the literature box and install it. NOTE ► For models equipped with the optional Access Control, switch the backup battery key switch ON.

  • Page 17: Change Freezer Temperature Setpoint

    Horizon Series™ Models View maximum temperature recording. Press and hold the Up Arrow button for 1 second and listen for a single beep. The display will alternate between HI and a valid temperature value five (5) times followed by a single beep to indicate exit back to the temperature display. View recorded temperature timer.

  • Page 18: Setting Parameter Values

    Horizon Series™ Models 9.5.1 Setting Parameter Values Press and hold the Up and Down Arrows simultaneously for 3 seconds to enter program mode. The LED Display will show .C or .F to indicate Celsius or Fahrenheit. Press and release SEL button to scroll through the parameters. Once the desired parameter is selected, press and hold the SET button while pressing the Up or Down Arrow to select the desired value.

  • Page 19: Temperature Alarm Setpoints

    Horizon Series™ Models Temperature Alarm Setpoints Flashing Lamp Selected Setting HIGH TEMP and MONITOR High Temp alarm setpoint LOW TEMP and MONITOR Low Temp alarm setpoint 9.7.1 Change a Temperature Alarm Setpoint Press and hold the Up and Down Arrows simultaneously for 3 seconds to enter program mode. The LED Display will show .C or .F to indicate Celsius or Fahrenheit.

  • Page 20: Access Control (Optional)

    Horizon Series™ Models Access Control (Optional) Allows user-specific secure access to the freezer. NOTE ► During a power failure, the backup battery continues to provide power to the optional Access Control lock (if equipped). If the backup battery is not functioning, the optional Access Control lock will not secure the door.

  • Page 21: Appendix A: Maintenance Schedule

    Appendix A Appendix A: Maintenance Schedule Maintenance tasks should be completed according to the following schedule. Refer to the service manual and the i.C³ User Guide for more detail on the various tasks. NOTE These are recommended minimum requirements. Regulations for your organization or physical conditions at your organization may require maintenance items to be performed more frequently, or only by designated service personnel.

  • Page 22: Appendix B: I.series ® Components

    Appendix B Appendix B: i.Series Components ® Front and Base Front and base features (iPF105 model shown). Label Description Chart recorder (standard on plasma storage models, optional on laboratory/pharmacy models) i.C³ control Door handle with lock Leveling foot (casters are optional) USB port Condenser grill Monitoring system backup battery switch...
  • Page 23 Appendix B Access Control Option Access Control features (iPF105 model shown). Label Description Door handle (includes manual keyed lock) Magnetic lock assembly (includes magnet and handle) Backup battery key switch Chamber Chamber features (multiple models shown). Label Description Probe bottle Shelf (laboratory/pharmacy models) Roll out basket (optional) Drawer (plasma storage models)
  • Page 24 Appendix B Rear iPF105 model shown with detail from various models Label Description Insert for stacking bracket Drain line Compressor Product specification label Power connector Access port External drain fan Rear panel Remote alarm interface RJ-45 Ethernet port USB port Power cord Condensate evaporator RS-232 COM port (optional)

  • Page 25: Appendix C: Horizon Series™ Components

    Appendix C Appendix C: Horizon Series™ Components Front and Base Front and base features (HPF105 model shown). Label Description Chart recorder (standard on plasma storage models, optional on laboratory/pharmacy models) Horizon Series temperature monitor and control Door handle with lock Leveling foot (casters are optional) Monitoring system backup battery Alarm disable switch...
  • Page 26 Appendix C Access Control Option Access Control features (HLF105 model shown). Label Description Door handle (includes manual keyed lock) Keypad Magnetic lock assembly (includes magnet and handle) Backup battery key switch Backup battery (behind battery cover) Chamber Chamber features (multiple models shown). Label Description Probe bottle...
  • Page 27 Appendix C Rear Rear features (HPF105 model shown). Label Description Insert for stacking bracket Drain line Compressor Product specification label Power connector Access port External drain fan Rear panel Remote alarm interface Power cord Condensate evaporator END OF MANUAL 360137-D/D...
  • Page 28 HELMER SCIENTIFIC 14400 Bergen Boulevard Noblesville, IN 46060 USA PH +1.317.773.9073 FAX +1.317.773.9082 www.helmerinc.com...
