16-inch machines:

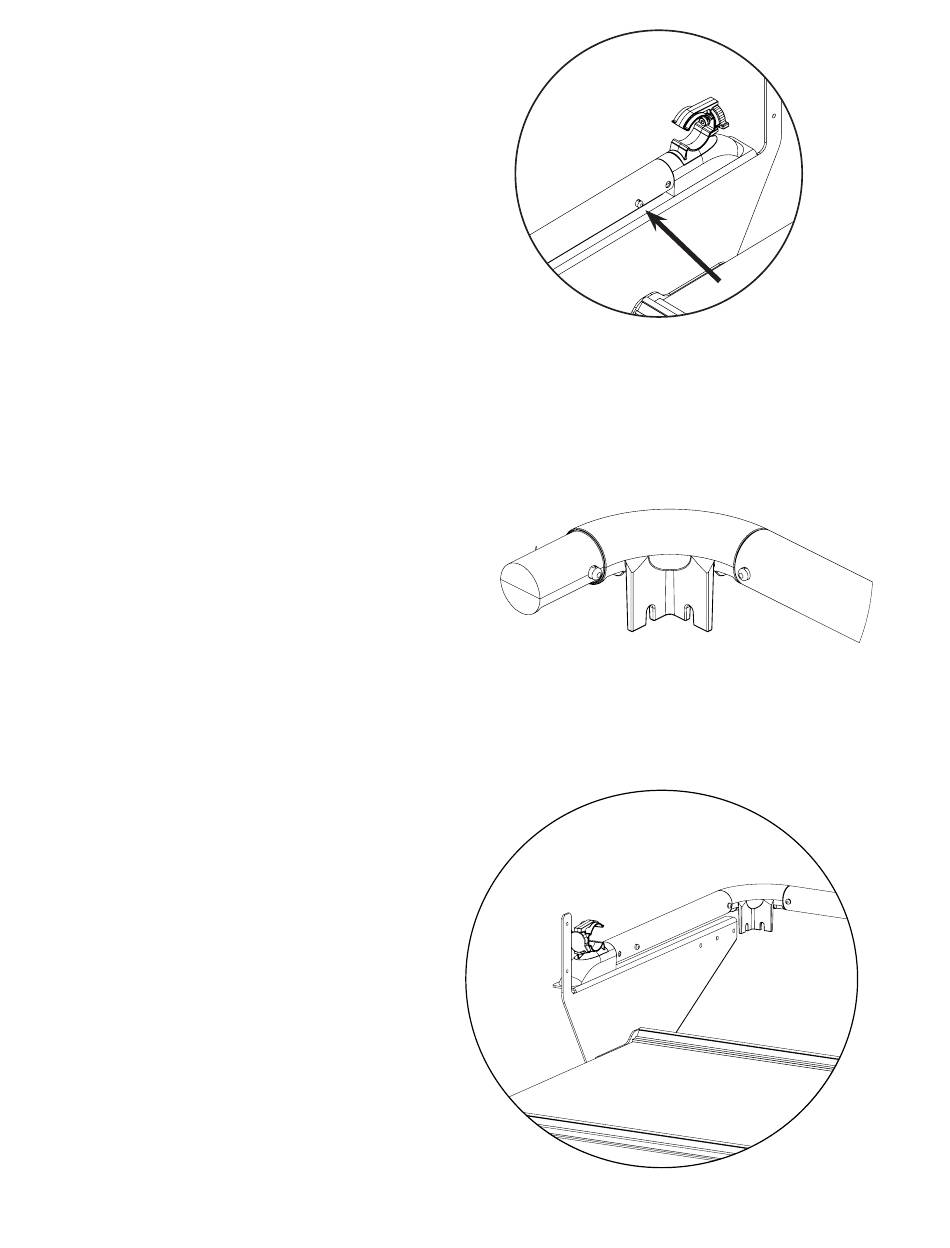

If you are setting up the HQ Little
Foot Frame for a 16-inch machine,
make sure the button snaps into
the second hole (see arrow).
Repeat with the other side
of the frame.
7. Assemble the front pole: Identify
the front pole corner connectors.
C
Press in the button on one of
the front pole corner connectors
and insert it into the left side of
the front pole until the button
snaps in place. Press in the button
on the other front pole corner
connector and insert it into the
right side of the front pole until
the button snaps in place.
8. Attach the front pole assembly
to the frame: Press in the button
on the left side of the front pole
assembly and insert the pole
into the side arm poles until the
button snaps in place. Repeat with
the right side of the front pole
assembly and the right side of the
frame
