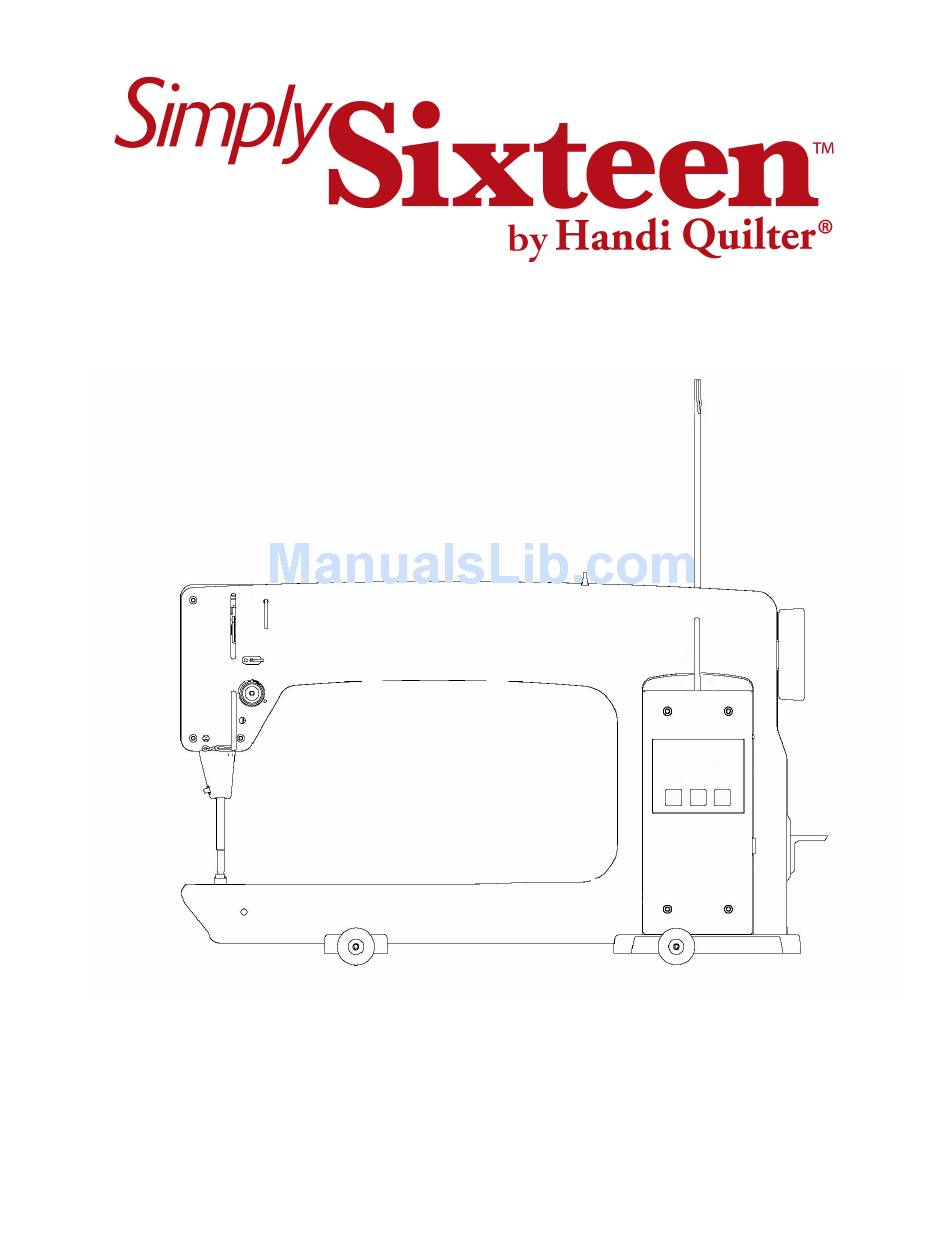

- Page 1 Copyright© 2006 “All Rights Reserved” No part of this manual may be reproduced in whole or part without User Manual express written consent from Handi Quilter, LLC (v. 1.1)
-
Page 2: Table Of Contents
Contents Safety Section and Quick Facts ............... 1 Package Contents and Machine Components ..........2-3 Installation Procedures .................. 4-6 Laser Style Safety and Use Guidelines............7 Threading the Machine.................. 8-9 Bobbin and Thread Tension Adjustments ............10 Maintenance ....................11 Front Handlebar Controls ................ -
Page 3: Safety Section And Quick Facts
10. To disconnect from the wall outlet, push the switch to the off position, then remove the plug from outlet pulling from the plug, not the cord. Never operate the Simply Sixteen™ if the cord is damaged or not working correctly. -
Page 4: Package Contents And Machine Components
6. Oiler 7. Power Cord 8. Hex Wrench (2 – for needle clamp & handlebars) 9. Instructional DVD 10. Instruction Manual 11. Simply Sixteen Quilting Machine Simply Sixteen™ Components Front Side Diagram A 1. Thread Mast 2. Thread Guide A 3. - Page 5 31. Serial Port for Upgrade 32. Foot Pedal Connector 33. Rear Upgrade Port 34. Rear Threaded Handle Holes 35. Power Cord Connector 36. On/Off Switch 37. Back Power Pod 38. Spool Pin 2 Diagram C Simply Sixteen User Manual 1.1 Page 3...
-
Page 6: Installation Procedures
Note: After the power cord and front handlebar have been completely installed and plugged in, test the machine by turning the Simply Sixteen™ on/off switch to “on”. The green POWER ON LED should illuminate. If the light doesn’t illuminate, check that the handlebar cable on the side of the machine is plugged in securely, that your machine is turned on, and that the power cord is plugged into the machine as well as a power source. - Page 7 Adjusting the Hopping Foot The foot is adjusted at the factory and should not be moved without consulting the manufacturer. Simply Sixteen User Manual 1.1 Page 5...
-
Page 8: Installing The Thread Mast
Lock in place with lock nut – the washer will be under the nut to protect the machine paint (see Photo 5). Note: An unused spool pin can also be used to mount the laser. Photo 5 Follow steps 2-4 above Simply Sixteen User Manual 1.1 Page 6... -
Page 9: Laser Stylus Safety And Use Guidelines
If the laser should cease to operate, check to ensure the plug is firmly seated into the Simply Sixteen™ laser port. Caution: Use of controls or adjustments or performance of procedures other than those specified herein may result in hazardous radiation exposure. -
Page 10: Threading The Machine
Diagram F Once the thread is in place, be sure that the thread catches on the take up spring and then pull it down under the stirrup (thread guide D). Simply Sixteen User Manual 1.1 Page 8... - Page 11 Important notes: The Simply Sixteen™ quilting machine does not have a presser foot lever or top tension release like a home sewing machine. On a home sewing machine the top tension is released when the presser foot is raised allowing the thread to come freely out of the machine.
-
Page 12: Bobbin And Thread Tension Adjustments
The small screw in the center of the tension spring is where the adjustment is made (see Photo 9) – Turn clockwise to tighten and counterclockwise to loosen the bobbin case tension. Photo 9 Simply Sixteen User Manual 1.1 Page 10... -
Page 13: Maintenance
Always sew a scrap piece as oil may cling to thread. Over oiling can cause excess dripping from the bobbin assembly. Lack of lubricant may be noticed by a change in the sound of the machine and will affect stitch quality. Simply Sixteen User Manual 1.1 Page 11... -
Page 14: Front Handlebar Controls
At 10%, the machine is stitching at approximately 150 stitches per minute. At 50%, the machine is stitching at approximately 750 stitches per minute. At 100%, the machine is stitching at approximately 1,500 stitches per minute. Simply Sixteen User Manual 1.1 Page 12... - Page 15 LED lights. Slide the switch all the way to the left to stop needle up. Slide the switch all the way to the right to stop needle down. Start Starts the machine. Simply Sixteen User Manual 1.1 Page 13...
-
Page 16: Pod Controls
POD Controls (for controlling the machine from the rear) The front handlebar MUST BE INSTALLED for the Simply Sixteen™ to function correctly. Note: When the machine is stopped, pay attention to the position of the needle when pushing Needle Up or Needle Down. -
Page 17: Thread And Quilting Recommendations
In order to become comfortable with the free motion of the Simply Sixteen™, users can begin with a few “beginner” techniques. -
Page 18: Troubleshooting
By inserting a needle under the spring and clearing out the lint, the bobbin tension will return fairly close to its preset tension. Simply Sixteen User Manual 1.1 Page 16... -
Page 19: Thread Mast
Leaders are stretched/worn If fabric is beginning to stretch or fray, contact Handi Quilter Company for replacement leaders. Needle Thread Breaks Corrective Measure Thread cones/spools may... - Page 20 The motor stall may re-occur if it is caused by an electrical problem. Turn the machine off and then back on again to reset. * If the troubleshooting above does not eliminate the problem, please consult the representative where you purchased the Simply Sixteen™. Simply Sixteen User Manual 1.1 Page 18...
- Page 21 www.HandiQuilter.com...
