handi quilter HQ Little Foot Frame Assembly Instructions Manual page 3

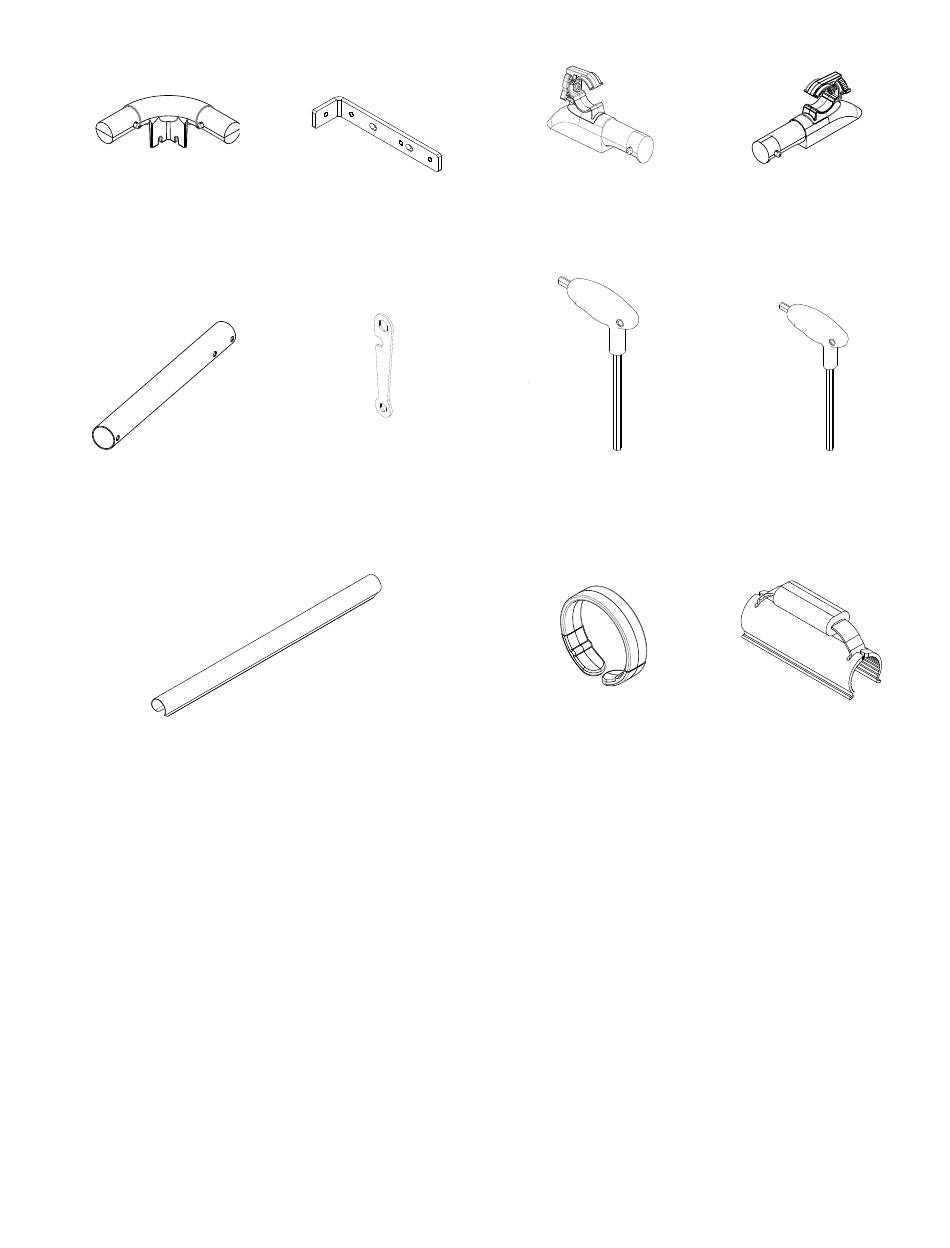

Corner Connector
2 – Front pole corner
connectors
#QF10003 (Box 1)
Left Side arm
Side Arm Pole
2 – Side arm pole
#QF10004 (Box 1)
L-Bracket
1 – HQ Super Quilt Clamp
Left Side pole clamp
*Notes:
1. The QF05300-403, Upper Leg B is used on the Left Front and the Right Rear Corners.
2. The QF05300-402, Upper Leg A is used on the Right Front and the Left Rear Corners.
December, 2019
Left Side arm
L-Bracket
4 – L-brackets
#QF10010 (Box 1)
Left Side pole clamp
Right Side arm
Corner Connector
1 – 17/13 mm wrench
(for leveling feet)
#QF09318-114 (Box 1)
Left Side arm
Right Side pole clamp
#QF10018 (Box 1)
L-Bracket
Right Side arm
1 – Assy Pole End Right
#QF10042 (Box 1)
QF09318-720
QF09318-720
SHORT BOLT RATCHET WHEEL
HAND WHEEL ASSY
HAND WHEEL ASSY
Right Side pole clamp
1 – 5 mm hex tool
#QF09318-113 (Box 1)
Right Side arm
6 – Hold-Tight Clamps
3 small #HG10000
3 large #QF10014
(Box 1)
Right Side pole clamp
Left Side pole clamp
1 –Assy Pole End Left
#QF10043 (Box 1)
QF09318-730
QF09318-730
QF09318-730
SHORT BOLT RATCHET WHEEL
LONG BOLT RATCHET WHEEL
1 – 4 mm hex tool
#QF09318-112 (Box 1)
6 – Easy-Grasp
Quilt Clamps
#QF10013 (Box 1)
HQ Little Foot Frame Assembly Instructions
L-Bracket
QF09318-730
LONG BOLT RATCHET WHEEL
| 3
