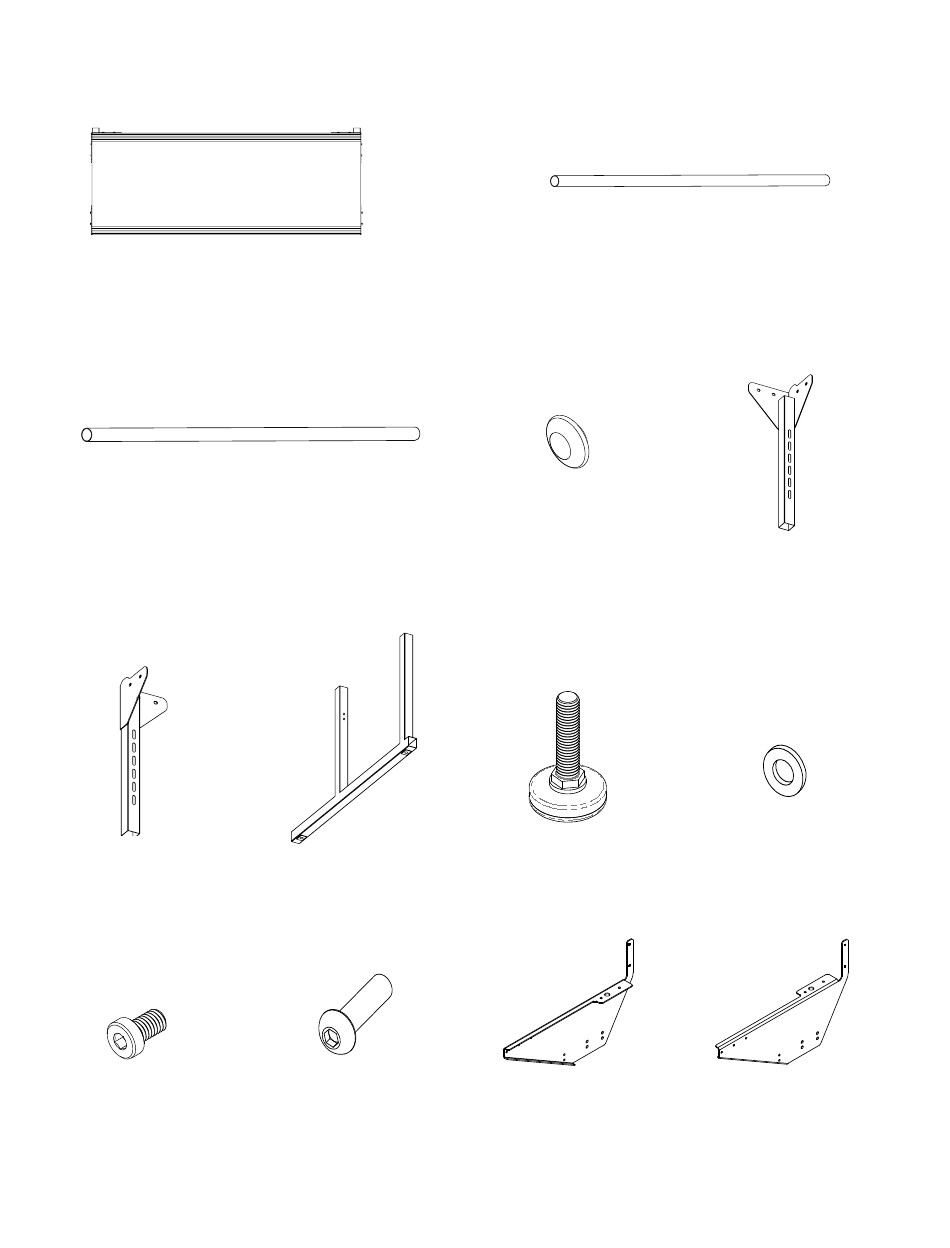

Frame Parts and Hardware

1 – Table section with plastic top (QF05300-300)
2 – 5' Track supports (QF05300-02)
4 – 5' Track insert (QF00001-05
6 – Screw M6x12 w/17mm SWH (QF09318-303)
QF09318-104
BUNGEE HOLDER SPACER
1 – Rear pole (68")
#QF10009 (Box 2)
QF09318-204
CONNECTOR BOLT
QF09318-713
HAND WHEEL COLLAR
2 – Upper leg A
#QF05300-402 * (Box 1)
M6 x 10mm socket cap screw
16 – M6 x 10mm socket
cap screws #QF10006
(Box 1) Note: 1 each in 2
Assy Pole Ends already
2 |
www.HandiQuilter.com
(Box 2)
QF09318-103
QF09318-105
RAIL BEARING SNAP
QF09318-714
2 – Lower legs
STEEL SNAPPING BUTTON/LOCKING CLIP
#QF05300-401 (Box 2)
Side Arm Pole
End Caps
Left Side arm
20 – M8 x 20mm socket
button head cap screws
(SBHCS)
#QM10959 (Box 1)
QF09318-203
RATCHET STOP
M6 x 10mm socket cap screw
2 – Rear pole endcaps
#QF10011 (Box 1)
QF09318-106
RAIL BEARING SNAP COVER
4 – Leveling foot
LEVELING FOOT
#QF09318-108 (Box 1)
Corner Connector
Right Side arm
1 – Right side arm
#QF10007 (Box 1)
1 – Front pole (56")
#QF10005 (Box 2)
QF09318-205
RATCHET STOP HOLDER
End Caps
2 – Upper leg B
#QF05300-403 * (Box 1)
QF09318-105
Fig. 10-2
4 – Nylon washers
#QF05300-157 (Box 1)
Side Arm Pole
1 – Left side arm
#QF10008 (Box 1)
Corner Connector
Left Side arm
