FAS 01-03
   
INNOTECH

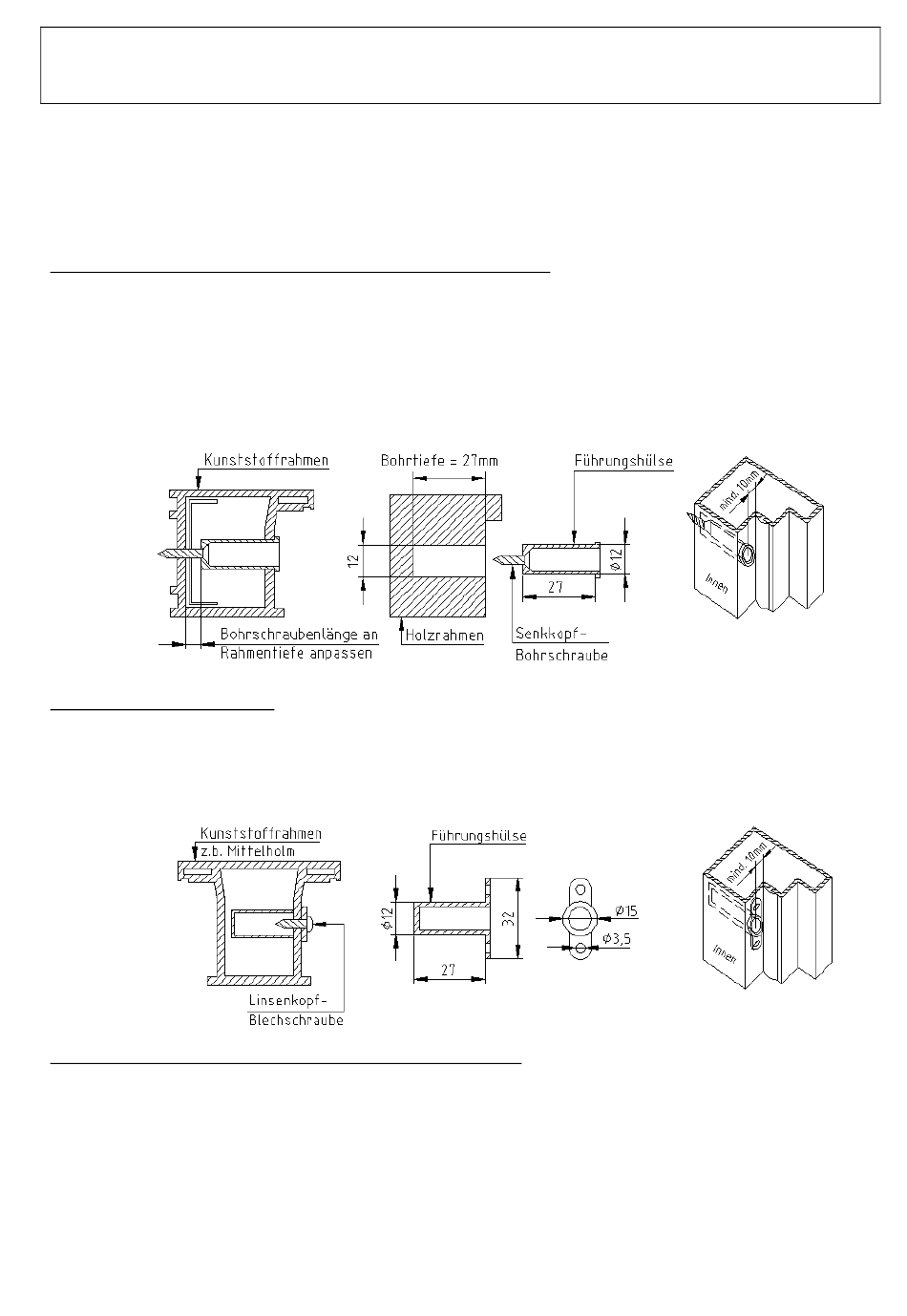

Fitting the guide bushes into the anchor points
Bore ∅ 12mm (Fig. 8)
All anchor points on the window frame must be fitted with guide bushes that have been
developed especially for the FAS 01-03 restraint system. The system should only be used in
combination with INNOTECH guide bushes.
GUIDE BUSH TYPE FHS QUICK-INSTALLATION BUSH
This guide push is inserted like a dowel into the prepared bore
(∅ ∅ ∅ ∅ min. 11.9 mm – max. 12.1 mm) and held in place by specially designed discs that do not
require any additional fasteners. While a centre screw can be used for additional fastening, this
will not be necessary in most cases.
Developed for wood, plastic, and metal frames as well as frame and centre spar profiles with
hollow cavities or a full cross section.
Special guide bushes are available from your FAS 01-03 dealer.
Fig. 8
Type FHS
GUIDE BUSH TYPE FHB
The bushes are installed into the window frame using clips and two screws. These bushes are
used, for instance, instead of FHS bushes when the use of FHS bushes is not deemed reasonable
or as repair bushes if a bore has been drilled to large.
Developed for hollow cavity and centre spar profiles
Type FHB
GUIDE BUSH TYPE FHC MASONRY INSTALLATION
see separate instructions for installation and use!
INSPECTION OF ANCHOR POINTS
Test device PG 01see separate instructions for installation and use.
The proper execution of the coaxial horizontal bores (anchor points on the window
frame) as well as the proper testing of the stability and anchoring of the window frame
is the responsibility of the respective manufacturer (installation company).
Page 9 of 9 Edition 06/12/2014 INNOTECH FAS 01-03
