APPLICATION
Transport:
Caution, the fall prevention system for windows utilises spring pre-tension.
Slacken the fall prevention system for windows before you transport it (Fig. 2). To slacken the
fall prevention system for windows, place it on a solid surface and hold on to the galvanised
(silver) part before releasing the lock by pulling locking bolt A. Caution, the fall prevention
system slackens (risk of injury). When pulling locking bolt A, make sure not to prevent the
galvanised (silver) part from shooting out, as this will damage the restraint system. It is,
therefore, important to extend the system slowly.

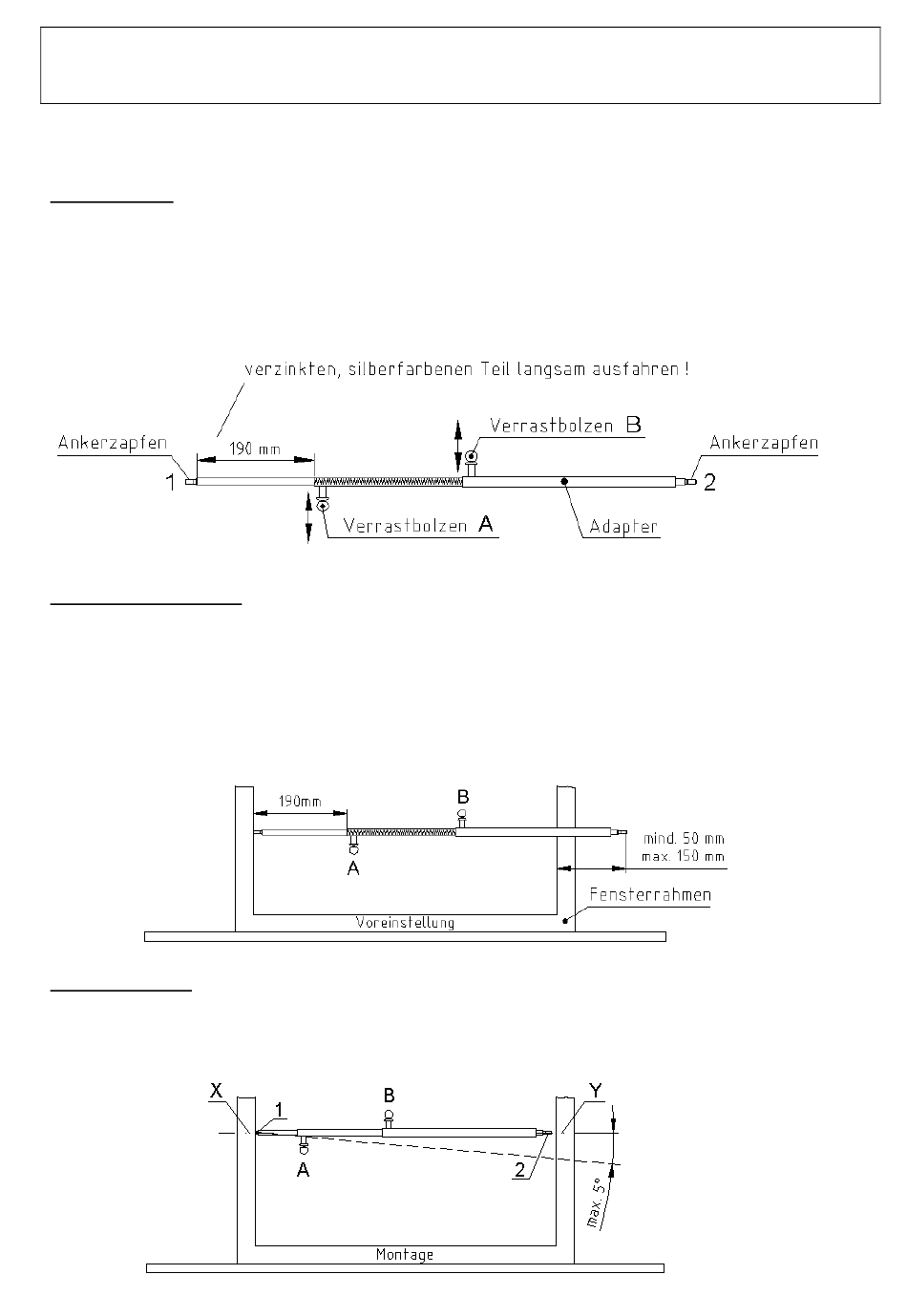

Fig. 2
Pre-adjustment:
Hold the slacked fall prevention system for windows with both hands, pull
locking bolt B, and adjust the system to the respective window size using the adapter. Correct
setting: = (light width of the window frame plus approx. 50 mm to 150 mm (Fig. 3).
Attention: make sure locking bolt B has snapped back into place after each pre-
adjustment!
Proceed by shortening the fall prevention system for windows by pulling locking A,
pushing the perforated silver extension inward, and releasing locking bolt A again. Your
fall prevention system is now pre-adjusted.
Fig. 3

Installation:

Keeping at an angle below 5 degrees, guide the anchor peg 1 of the pre-set
∅
fall prevention system for windows into anchor point X ( 10 mm) on the window frame (Fig. 4).
Proceed by pulling locking bolt A and carefully insert anchor peg 2 into the opposite bore Y that is
marked on the window frame. Release locking bolt A to lock the fall prevention system for
windows in place on the window frame (Fig. 5).Disassembly in reverse order.
Fig. 4
