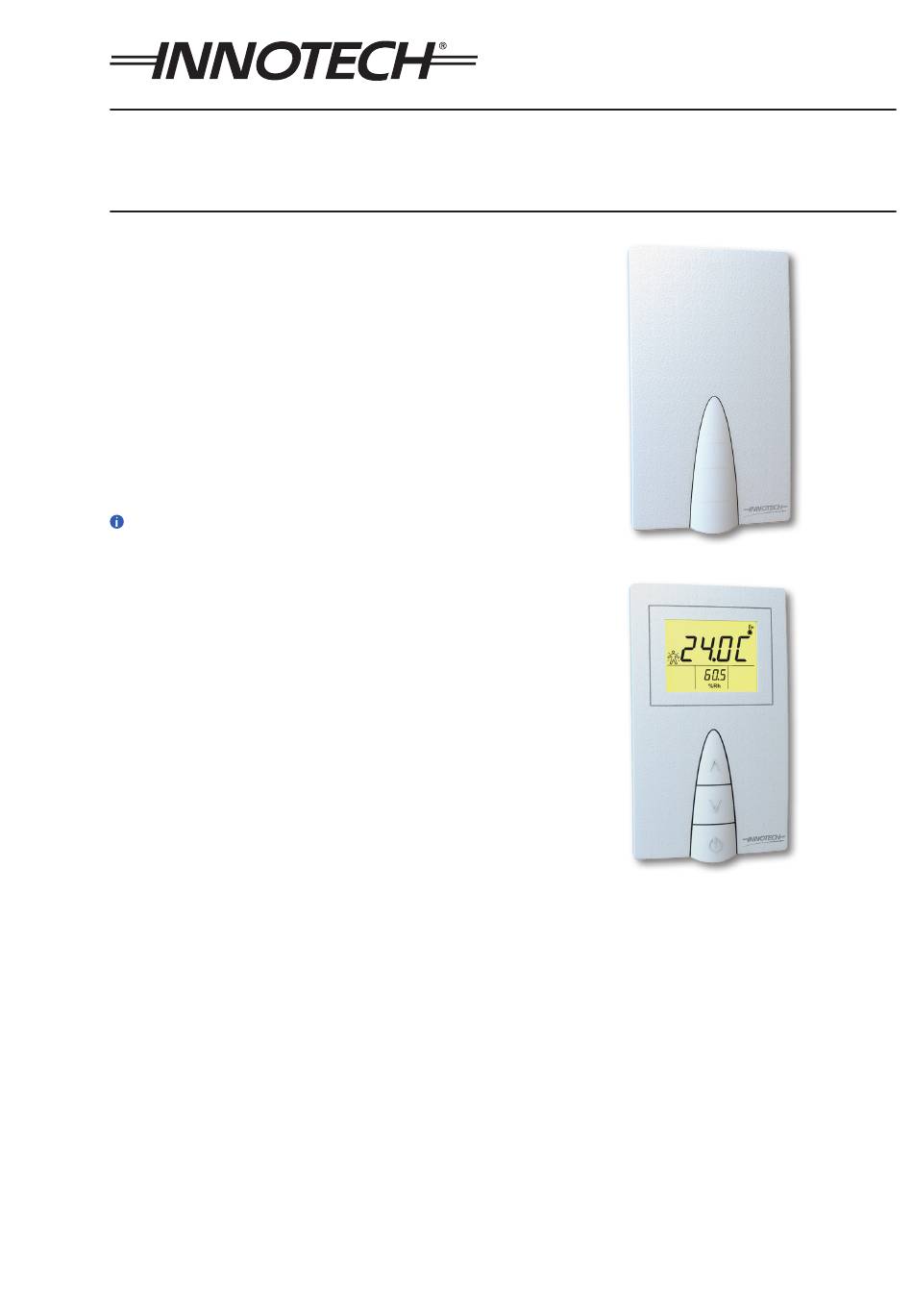

Innotech HTW5 Series Manual

MODELS:
HTW51: No display or adjustment
HTW58C: Celsius model with display, setpoint adjustment and override
HTW58F: Fahrenheit model with display, setpoint adjustment and override
Overview
The HTW5x Temperature and Relative Humidity detector is a wall
mounted sensing element used for the monitoring of temperature &
humidity in a controlled space.
Features
• Icon based backlit Liquid Crystal Display (LCD)
• Modern, attractive enclosure design
• Wall mounted
• Displays Temperature and Humidity at a glance
• Onboard temperature sensor
• Onboard humidity sensor
• Displays Celsius (°C) or Fahrenheit (°F)
• Push button interface for:
a. Temperature setpoint adjustment
b. Occupancy override
• Display available on HTW58 model only
• Temperature setpoint adjustment and override available on
HTW58 model only.
Applications
The Innotech HTW5x detector range of products are designed to
provide simple but accurate sensing of air-conditioned spaces.
The detector provides an easy to read visual display of temperature
and/or humidity, and allows programming modifications using the
intuitive LCD and push button interface. (HTW58 model only)
Installation / Wiring
The HTW5x detector should be installed in an environment that does
not exceed the maximum operating parameters of the device. It
should be mounted in a clean and dry environment free of vibration,
and properly ventilated.
The HTW5x should be mounted with a standard vertical C-Clip, or on
a standard wall enclosure. Maximum terminal cable entry is 2.5mm²
(stranded conductor).
Wiring should be done in accordance with Innotech connection
diagrams and local bylaws or refer to your local distributor.
Connect the power supply to the correct terminals on the detector,
observing the correct polarity of the connections.
Wall Mounted Temperature and
© MASS ELECTRONICS Pty Ltd 2014
December 2017
HTW5x
Relative Humidity Detector
HTW51
HTW58C
DS 1.40-AU
