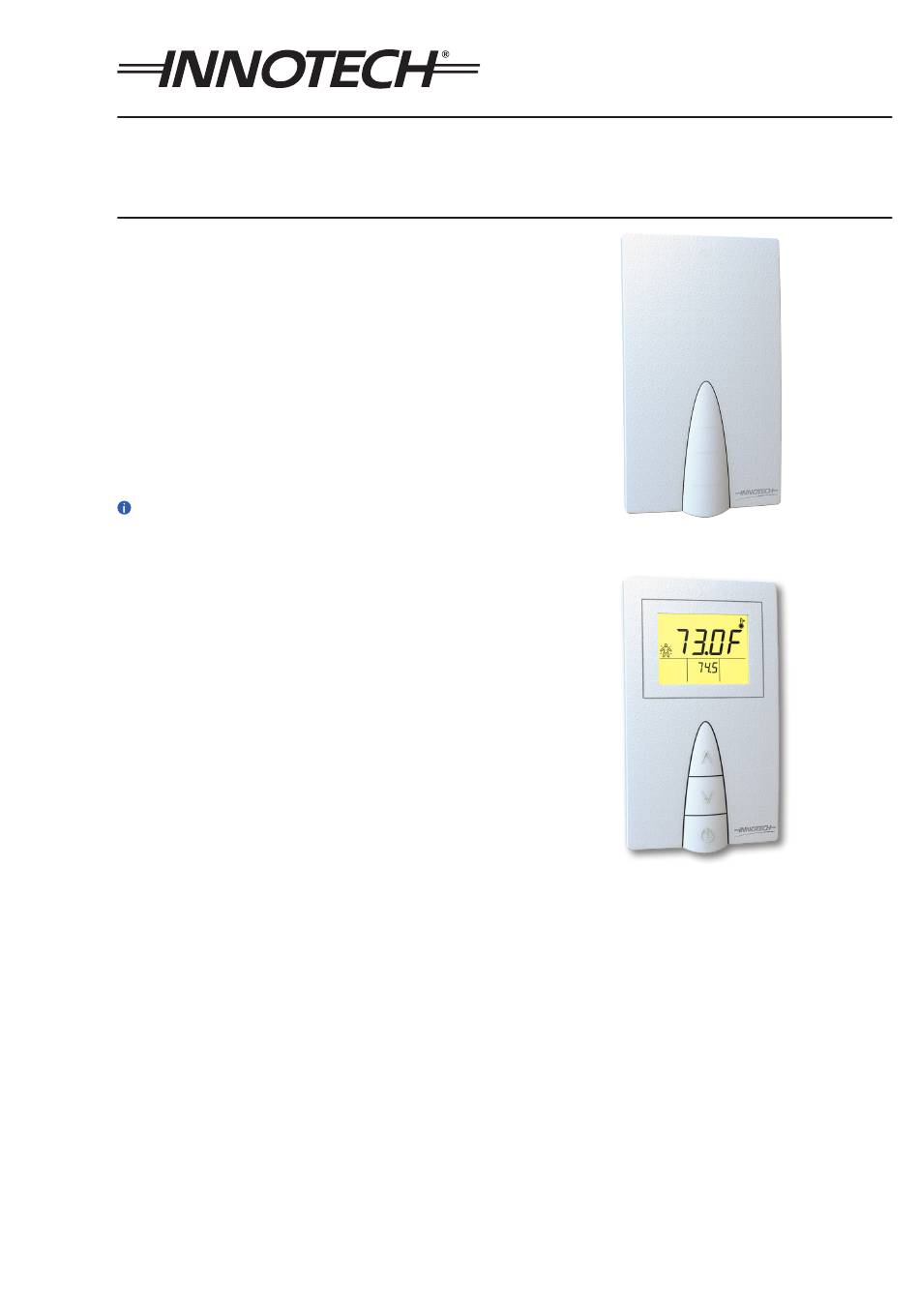

Innotech SENW51 Manual

MODELS:
SENW51: Temperature Detector
SENW58F: Fahrenheit model, with display, setpoint adjustment and override
SENW58C: Celsius model with display, setpoint adjustment and override
Overview
The SENW5x Wall Mounted Temperature Detector is a wall mounted
sensing element used for the monitoring of temperature in a
controlled space.
Features
• Icon based backlit Liquid Crystal Display (LCD)
• Modern, attractive enclosure design
• Wall mounted
• Displays Temperature and Setpoint at a glance
• Onboard temperature sensor
• Displays Fahrenheit (°F) or Celsius (°C)
• Push button interface for:
a. Temperature setpoint adjustment
b. Occupancy override
• Display available on SENW58 model only
• Temperature setpoint adjustment and override available on
SENW58 model only.
Applications
The Innotech SENW5x is designed to provide simple but accurate
sensing of air-conditioned spaces.
The detector provides an easy to read visual display of temperature,
and allows programming modifications using the intuitive LCD and
push button interface (SENW58 model only).
Installation / Wiring
The SENW5x detector should be installed in an environment that
does not exceed the maximum operating parameters of the device.
It should be mounted in a clean and dry environment free of
vibration, and properly ventilated.
The SENW5x should be mounted with a standard vertical C-Clip,
or on a standard wall enclosure. Maximum terminal cable entry is
2.5mm² (stranded conductor).
Wiring should be done in accordance with Innotech connection
diagrams and local bylaws or refer to your local distributor.
Connect the power supply to the correct terminals on the detector,
observing the correct polarity of the connections.
Wall Mounted Temperature Detector
© MASS ELECTRONICS Pty Ltd 2014
DS 1.29
December 2015
SENW5x
SENW51
SENW58F
