Centsys D5-Evo Synchronisation Diagram

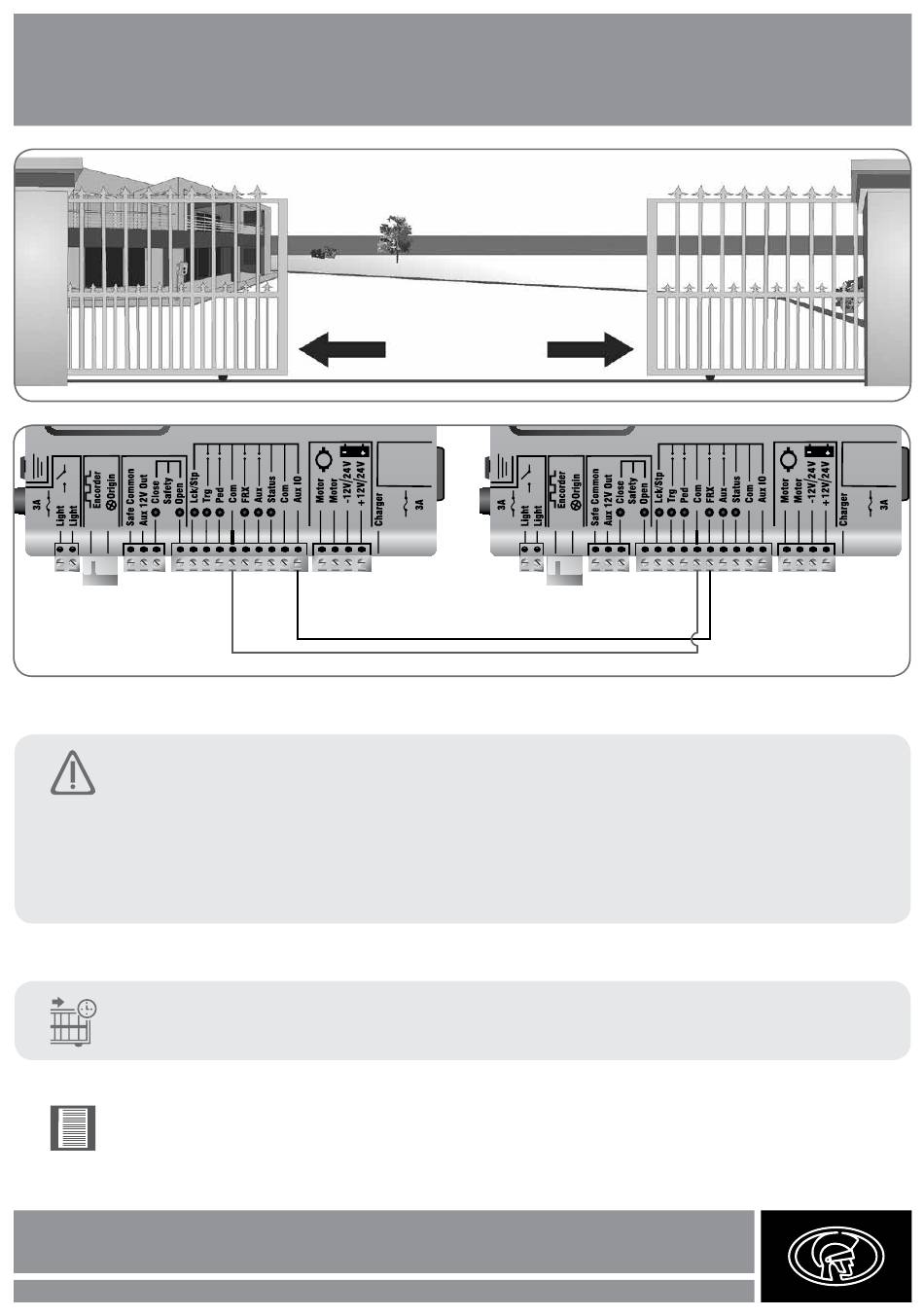

D5-Evo/D10 Synchronisation Diagram
Motor 2 (Master)
controller
Master controller settings

Safety

External gate indication status................................ Indicator output.............. AUX IO
Slave controller settings

Autoclose

Autoclose status................................................... On
Autoclose timer..................................................... 0 Seconds
• To open the gate fully, all triggering devices (remote controls, tag readers, keypads, intercoms, etc.)
must be programmed/connected to the Master controller.
• If the pedestrian function is required, connect the triggering device's normally-open output to the
PED terminal on the Slave controller or, in the case of remote controls, learn the remotes to activate
the PED function on the Slave controller.
Centurion Systems (Pty) Ltd
Doc number 0.07.D.0071_01032016 - ENGLISH
Two synchronised gates opening
Closed indication............. Off
Partly closed indication..... Off
Closing indication............ Off
Partly open indication....... O ff
Opening indication........... On
Open indication............... On
Pedestrian indication........ Off
Unknown indication.......... O ff
www.CentSys.com
Motor 1 (Slave)
controller
