Here you can either choose the internal timing of this WATCHPAX 60 to be used across your system
or, if an external sync generator is connected to your sync card, set it to "An external house sync
signal".

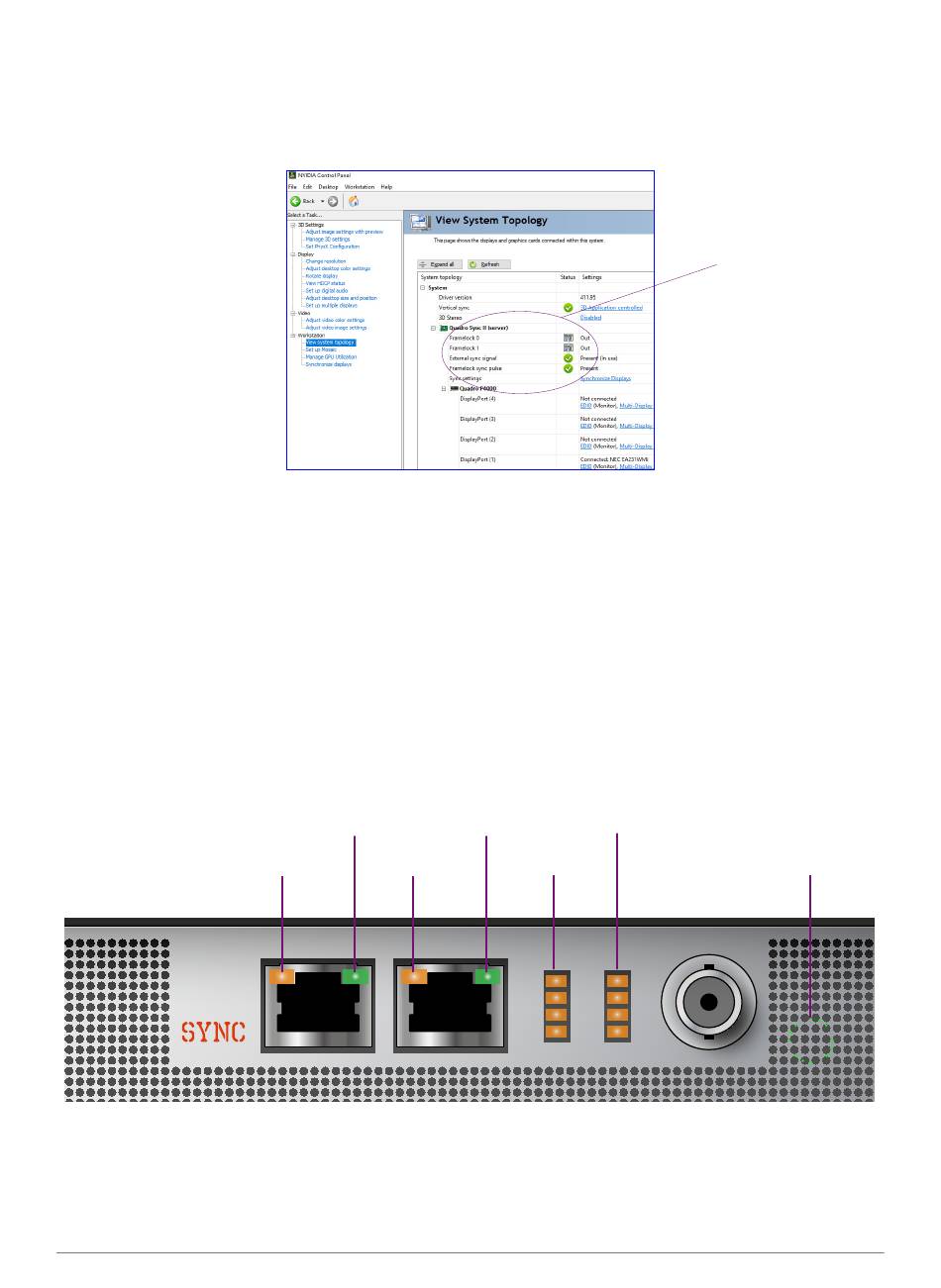

Make sure that synchronization is set up correctly by navigating to "View System Topology".

INTERPRET STATUS LEDS

• Solid orange: Port is output but no signal is present.
• Solid green: Port is input but no signal is present.
• Flashing orange: Port is output and transmitting. The flashing frequency indicates the refresh rate of
the signal.
• Flashing green: Port is input and receiving. The flashing frequency indicates the refresh rate of the
signal.
SYNCHRONIZATION
Frame Lock
0 In
Frame Lock Frame Lock
0 Out 1 Out
Stereo Phase
Frame Lock
Status LED
1 In
Frame Lock Sync
Status LED
Check this info!
HouseSync
Status LED
Rear panel, WATCHPAX 60
