TOLERANCE NOTES
FABRICATED TOLERANCES
≥ 2 ft (610 mm) ± 0.250 in (6.4 mm)
< 2ft (610 mm) ± 0.125 in (3.2 mm)
MACHINED TOLERANCES
± 0.050 DECIMAL DIM (1 PLACE)
± 0.010 DECIMAL DIM (2 PLACES)
± 0.005 DECIMAL DIM (3 PLACES)

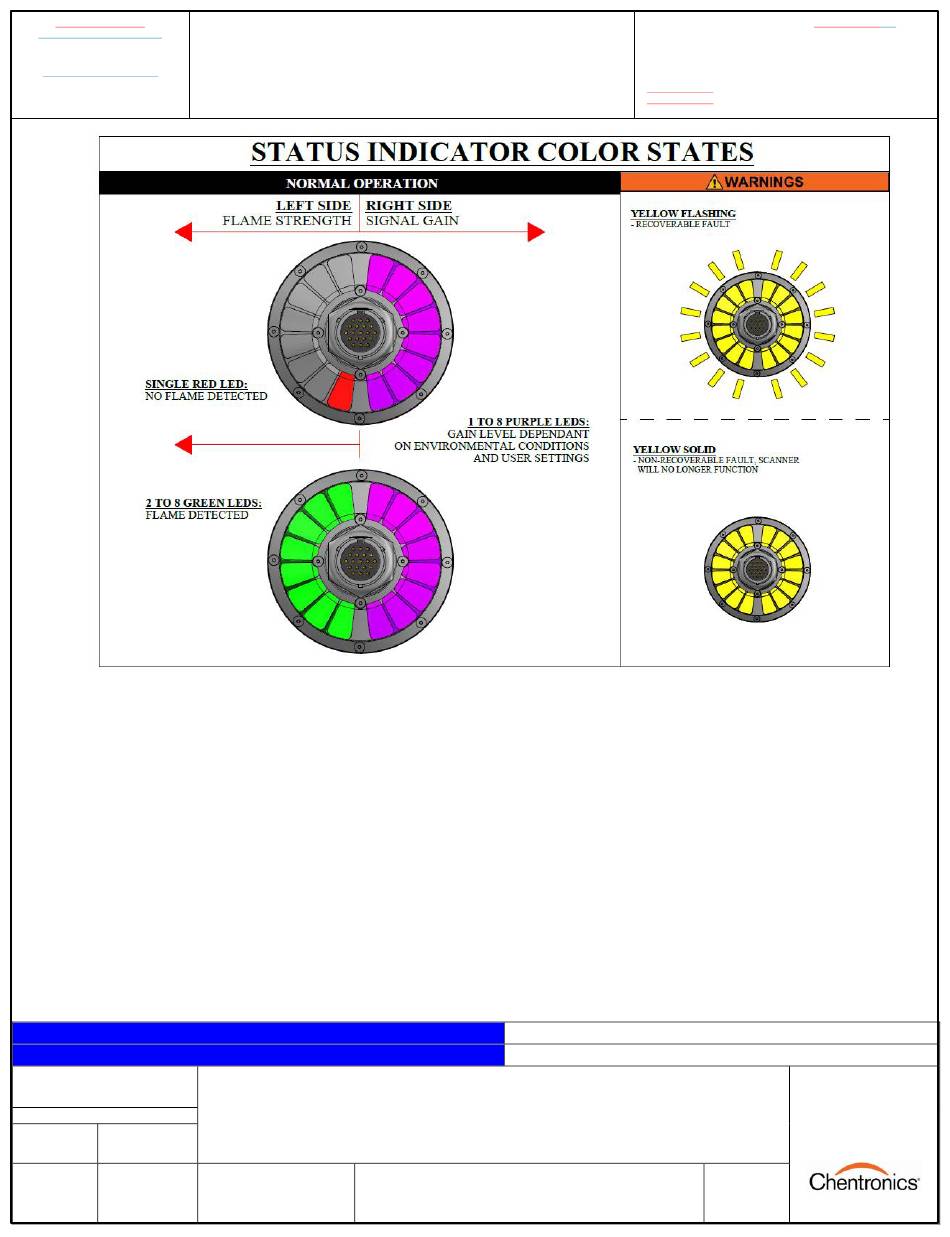

The "Ring of Light" communicates the scanner's operating modes including FLAME SIGNAL
STRENGTH, GAIN LEVEL (the amount of signal amplification), and WARNINGS/FAULTS. This ring
aids with "sighting" the flame; or in other words: proper aiming of the scanner. This must be
done with care to ensure that a good flame signal is present over a range of operating
conditions. With the "Ring of Light", the operator can quickly recognize marginal conditions
(such as low flame strength and/or high gain).
REMOTE FILE SELECT
The Remote File Select feature provides a means for selecting one of the configuration files
within the scanner.
Burner, "MB", models have a high degree of programmability, as outlined in the table below.
RELATED DOCUMENT – MUST COMPLY WITH SCHEDULE DOCUMENT(S):
FOR A LIST OF RELEVANT PATENTS
AND TRADEMARKS PLEASE SEE
CHENTRONICS.COM/LEGAL-NOTICES
ISO 9001 CERTIFIED
DRAWN BY:
ON:
AR
7/8/19
LAST REV BY:
ON:
MNL-ISCAN3
Single-Burner, "SB", models have limited programmability while Multi-
ISCAN3 MANUAL
DCO No
.
12804
DWG. No.
MNL-ISCAN3
THIS
DRAWING
OWNED
BY
CHENTRONICS.
CONDITIONALLY LOANED AND IS TO BE RETURNED UPON
REQUEST. THE BORROWER BY RECEIVING IT HAS AGREED
NOT TO REPRODUCE NOR COPY IT IN WHOLE OR IN PART
NOR TO FURNISH INFORMATION FROM IT TO OTHERS NOR
TO MAKE ANY USE OF IT THAT IS OR MAY BE INJURIOUS TO
CHENTRONICS. FOR MORE INFORMATION PLEASE CONTACT
CHENTRONICS
AT +1.607.334.5531.
CERT-iS3 MNL
PAGE 8 OF 28
C
REV.
IT
IS
