MO-EL S.r.l.
Via Galvani, 18
42027 Montecchio Emilia (RE)
ITALY
tel +39 (0522) 868011
fax +39 (0522) 864223
www.mo-el.com - info@mo-el.com

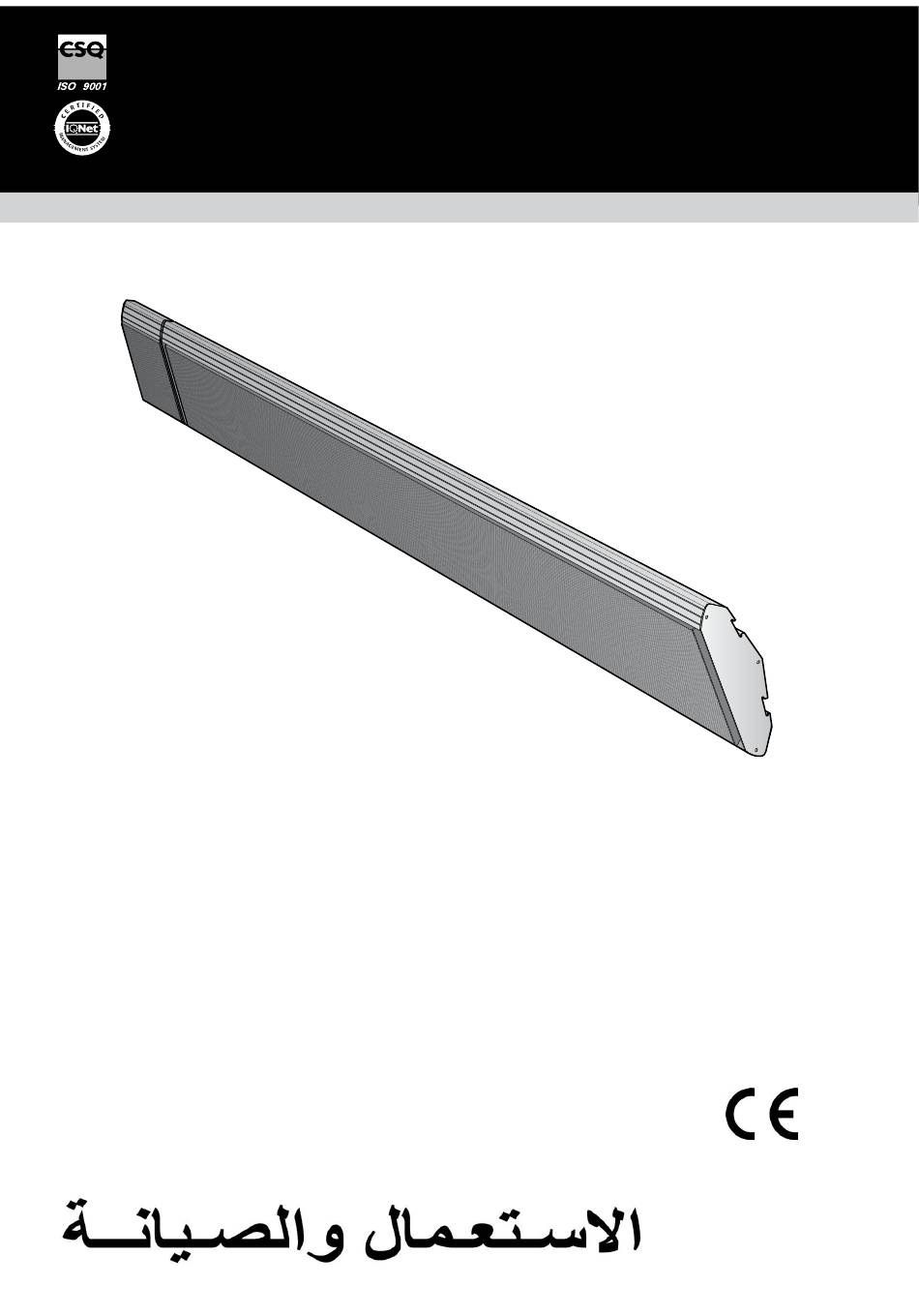

BLACKLIGHT
RISCALDATORE A RAGGI INFRAROSSI
INFRARED HEATER
USO E MANUTENZIONE
USE AND MAINTENANCE
EMPLOI ET ENTRETIEN
GEBRAUCH UND WARTUNG
USO Y MANTENIMIENTO
USO E MANUTENÇÃO
Classe I - IP55
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for MO-EL BLACKLIGHT Series
Summary of Contents for MO-EL BLACKLIGHT Series
- Page 1 MO-EL S.r.l. Via Galvani, 18 42027 Montecchio Emilia (RE) ITALY tel +39 (0522) 868011 fax +39 (0522) 864223 www.mo-el.com - info@mo-el.com BLACKLIGHT RISCALDATORE A RAGGI INFRAROSSI INFRARED HEATER USO E MANUTENZIONE USE AND MAINTENANCE EMPLOI ET ENTRETIEN Classe I - IP55...
-
Page 2: Important Safety Instructions
USE AND MAINTENANCE 1. IMPORTANT SAFETY INSTRUCTIONS Instructions should be carefully read before installation and retained by the user. The booklet must be keeped and delivered to the new user in case of cession of the machine. The Manufacturer reserves the right to vary the features of the product without prior notice. -
Page 3: Electrical Installation
be observed when using the heater: Do not touch the heather with wet hands. Do not handle with bare feet. Do not let children play with the electrical appliance. 11. Avoid the use of an extension cord with this product, because the 13. - Page 4 Under no circumstances turn the appliance on if it is on any sur- face. The appliance must not be recessed in the ceiling. There must be enough space around the top of the appliance to ensure adequate the appliance. A minimum air gap of 30 cm should always be allowed between the top of the heater and a ceiling or roof.
- Page 5 1. Drill four holes in the wall, following the dimensions in the table below: 7815 7818 7824 7832 800 (**) 950 (**) 1300 (**) 1600 (**) 104 (*) 104 (*) 104 (*) 104 (*) Hole spacing (mm) The value of wheelbase 104 (*) must be respected, while those relating to the distance between recommended.
- Page 6 failures it is necessary to operate the unit for a few hours every 6 months. This heating appliance does not feature a device to control ambient temperature. Do not use it in small rooms used by people who are unable to leave such rooms on their own unless they are under con- stant surveillance.
-
Page 7: Care And Cleaning
Models with remote control In models with remote control, the operation is performed as fol- lows: 1. Insert two 1.5 V - AAA type batteries (not included) into the re- mote control, matching the polarities. 2. Connect the appliance to the power supply: the blue LED lights. 3. -
Page 8: Technical Service
6. TECHNICAL SERVICE If you have any question relevant your appliance, call the local author- original spare parts. 7. TECHNICAL FEATURES 7815 7818 7824 7832 Power supply Power 1500 W 1800 W 2400 W 3200 W Insulation Class Protection level IP55 IP55 IP55... - Page 9 Fig. 1 30 cm (min) 180 cm (min)
- Page 10 Fig. 2...
- Page 11 End to end - 7705 50 cm (min) 50 cm (min) Fig. 3 Twin - 7704 Extension - 7706...
- Page 12 Ce manuel est disponible en format numérique sur le site Dieses Handbuch ist in digitaler Form auf der Website Este manual está disponible en formato digital en el sitio web Este manual está disponível em formato digital no website www.mo-el.com 004485 - ed. 07/2015...
