FabiaTech FP8080 Series Users Quick Reference

Version 2.0
1. Brief
The FP8080x is an 8-inch Panel PC with touch screen device (FP8080xT). This user's quick reference
provides its outlook information and I/O outlets description.

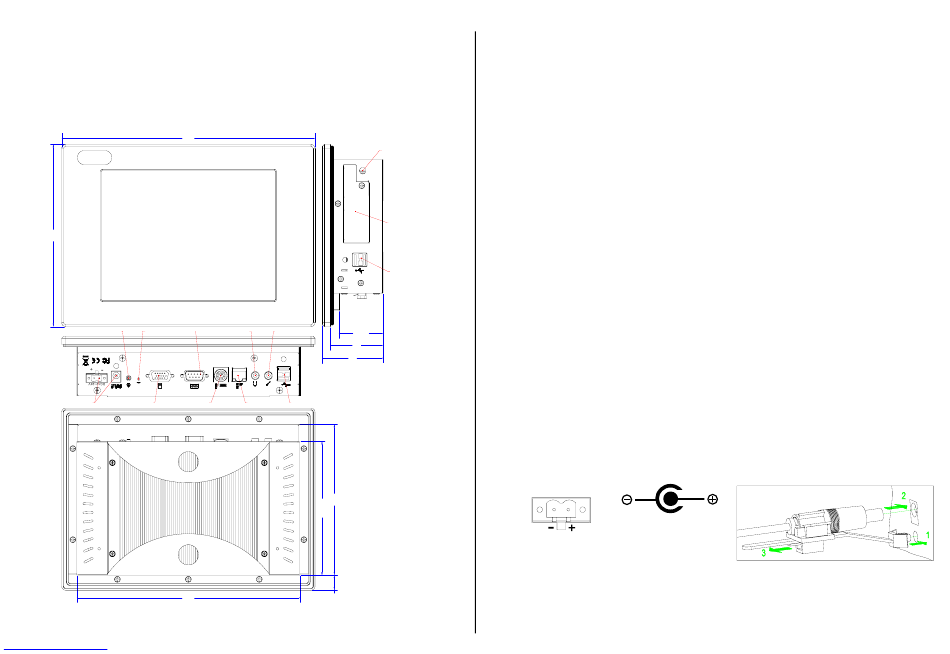

2. Dimensions (in mm) and Rear I/O Information
POWER BUTTON RESET COM
DC IN CRT KB/MOUSE
Cut out dimension 222 x 151 mm
www.fabiatech.com
FP8080 Series User's Quick Reference
250
Antenna
HDD CF
EAR-PHONE MIC
43.5
52
60
LAN USB
220
3. Packing List
1 FP8080x/FP8080xT industrial Panel PC.
1 AC to DC19V power adapter and 1 AC power code cable.
1 pack of embedded mounting kit with 4 screws.
1 pack of wall mounting kit with 5 fixed screws. (FP8080K1, optional)
1 pack of Din-rail mounting kit with 11 fixed screws. (FP8080K2, optional)
1 pack of 2.5" SATA HDD installing kit with 4 screws.
1 touch pen for touch screen (Optional for FP8080T only)
1 Compact Disc including user's manual and touch screen drivers.
ANTENNA
4. Features
* Processor Board
Intel low power Celeron-M processor with 1GB DDR2 RAM. (2GB Max.)
HDD&CF
* I/O Outlets
One 10/100/1000 base-TX Ethernet port.
4 USB ports (V2.0) and 1 RS-232/485 serial port.
1 VGA (CRT) and 1 PS/2 compatible keyboard/mouse interface.
USB 2 Audio connectors for Earphone and Microphone.
1 mini-PCI socket for mini-PCI I/O modules, especially for WLAN modules.
1 DC-In plug connector and 1 terminal block for DC power input.
1 power button and 1 reset button.
* Storage Bay
1 CompactFlash socket for CompactFlash modules or MicroDrives.
One 2.5" SATA hard disk space.
* Power requirement
+12 ~ +24V DC, 1.73A maximum (1.03A typical) with 19V input voltage.
* Mechanical
Dimensions: 60mm(D) x 250mm(W) x 180mm(H)
Weight: 3.3Kg.(Standard packing)
Approval: IP65 Compliant.
5. I/O outlets and LED Indicator
A. Power Connectors
DC12~24V
Terminal Block
DC +12V to +24V, 42W minimum
DC Plug-In Connector
