Version 1.1
1. Brief
The FP8084T is an 8-inch Panel PC with Intel® Atom™ E3845 board inside and touch screen device.
This user's quick reference provides its outlook information and I/O outlets description.

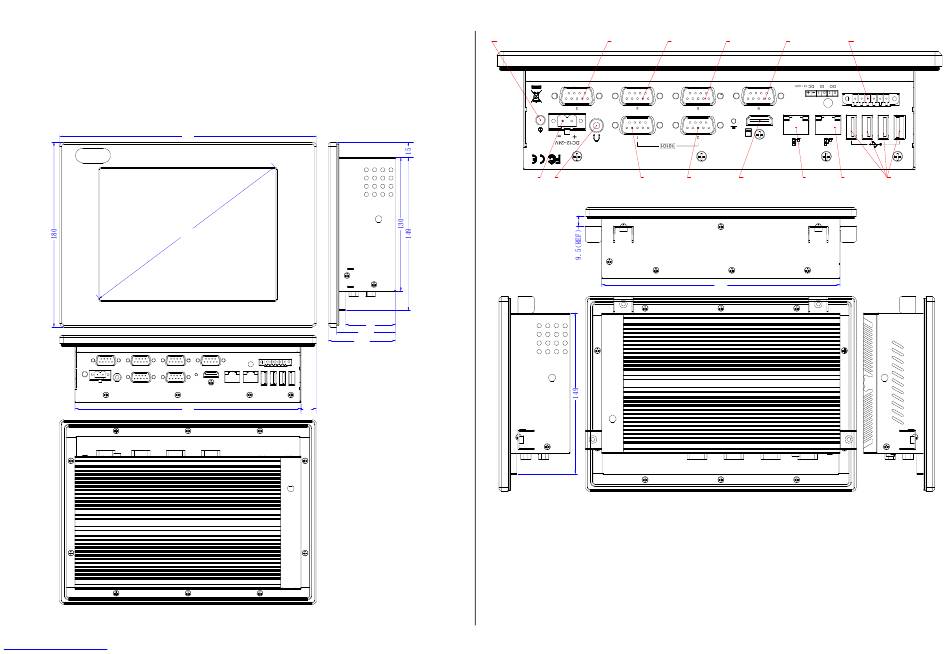

2. Dimensions (in mm) and Rear I/O Information
213.5(REF)
www.fabiatech.com
FP8084T Series User's Quick Reference
250
57.5
65.5
220
15
POWER BUTTON
DC IN
49
COM3
COM4
COM5
EAR-PHONE
COM1 COM2
220
Cut out dimension 222 x 151 mm
Page 1/4
COM6
DIGITAL IO
DISPLAY
LAN2 LAN1
USB
©2015-2017 FabiaTech Corporation
