FabiaTech FP8100xT Series Users Quick Reference

Version 1.1

1. Brief

The FP8100x is a 10-inch Panel PC with touch screen device (FP8100xT). This user's quick reference
provides its outlook information and I/O outlets description.

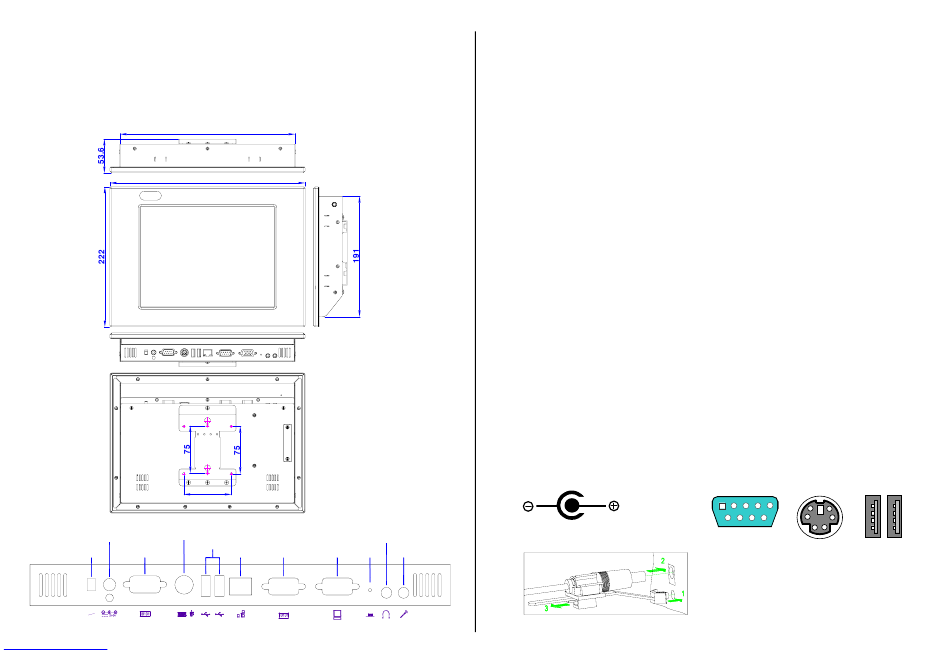

2. Dimensions (in mm) and Rear I/O Informations

KB/MOUSE
DC IN 12~24V
POWER SWITCH COM2
ON
2
OFF
www.fabiatech.com
FP8100 Series User's Quick Reference
276.2
308
75
USB
LAN CRT
COM1 RESET
/ 1

3. Packing List

1 FP8100x/FP8100xT industrial Panel PC.
1 AC to DC19V power adapter and 1 AC power code cable.
1 pack of 2.5" SATA HDD installing kit with 4+2 screws.
1 Y-cable (3-end) keyboard plus mouse port adapter cable.
1 pack of Wall Mounting Kit with 4 fixed screws.
1 pack of Embedded Mounting Kit with 6 clamps and 6 fixed screws.
1 pack of panel stand kit with 4 fixed screws. (FP8100K1, optional)
1 touch pen for touch screen panel (Optional)
1 Compact Disc including user's manual and touch screen drivers.

4. Features

* Processor Board
AMD Geode LX800 processor with 1GB DDR RAM.
* I/O Outlets
One 10/100 base-TX Ethernet port.
2 USB ports (V2.0) and 2 RS-232 serial ports.
1 VGA (CRT) and 1 PS/2 compatible keyboard/mouse interface.
2 Audio connectors for Earphone and Microphone.
1 mini PCIe card socket for wireless/GPRS modules.
1 DC-In plug connector for DC power input.
1 power button and 1 reset button.
* Storage Bay
1 CompactFlash socket for CompactFlash modules or MicroDrives.
One 2.5" SATA hard disk space.
* Power requirement
+12 ~ +24V DC, 1.44A maximum (0.92A typical) with 19V input voltage.
* Mechanical
Dimensions: 54mm(D) x 308mm(W) x 222mm(H)
Weight: 3.5Kg.(Standard packing)
Approval: IP65 Compliant.

5. I/O outlets and LED Indicator

A. Power Connector and I/O Connectors Group #1 (COM2, Keyboard/Mouse, and USB)
DC Plug-In Connector
SPK OUT
DC +12V to +24V, 35W minimum
MIC
COM1
Keyboard
USB#1 & #2
(& Mouse)
Note: Standard PS/2 keyboard can be plugged into this
connector without any adapter cable. If PS/2
keyboard and mouse will be used simultaneously,
the included Y-type adapter cable is needed.
