FabiaTech FP8152T Series Users Quick Reference

Version 1.1

1. Brief

The FP8152T (FP8153T) is an 15-inch Panel PC with Intel® i5-4422E (FP8152T) or Atom™ E3845
(FP8153T) processor board inside and touch screen device. This user's quick reference provides its
outlook information and I/O outlets description.

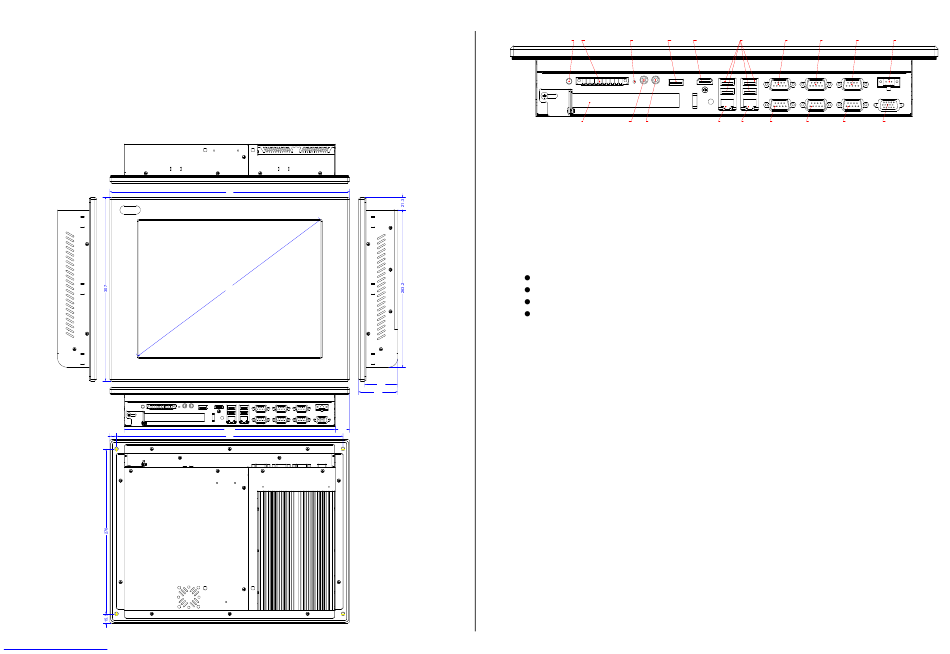

2. Dimensions (in mm) and Rear I/O Information

11
www.fabiatech.com
FP8152T/FP8153T Series User's Quick Reference
400
380(REF.)
54.9
64.9
352.4 23.8
378
POWER BUTTON DIGITAL IO RESET
SLOT MIC EAR-PHONE

3. Packing List

A. Standard Items
1 FP8152T/FP8153T industrial Panel PC.
1 pack of 2 apartable terminal blocks, 2-pin for power input and 10-pin for isolated digital I/Os.
1 pack of embedded mounting kit. (8 metals with 8 screws)
1 pack of (4+4+4) screws for 2.5" SATA HDD installation, mini-card installation, and spare parts.
1 compact disc includes software utilities and manuals.
B. Optional Items
Half size mini-card adapter kit (AK1006, 1 piece of metal with 2 screws, P/N: 0606010028G)
Wall mounting kit (FP8152K1, P/N: 0606010042R, 1 piece of metal with 5+4 fixed screws)
PCIe to PCI riser card (FB4757, P/N: 0153020012G)
Slot guide kit for Add-On card (FP8152K2, P/N: 0606010043R, 1 piece of metal, 1 piece of
plastic, and 3 fixed screws)

4. Features

* Processor Board
FP8152T: Intel® i5-4422E processor (1.8GHz to turbo 2.9GHz, dual core 4 thread, 3MB Cache,
FSB 1333/1600MHz, 25 Watts) with 8GB DDR3L RAM. (16GB Max.)
FP8153T: Intel® Atom™ E3845 processor (1.91GHz, quad core 4 thread, 2MB Cache, FSB
1333MHz, 10 Watts) with 4GB DDR3L RAM. (8GB Max.)
* I/O Outlets
Two 10/100/1000 base-TX Ethernet ports.
5 USB ports (One is V3.0), 2 RS-232/422/485, and 4 RS-232 serial ports.
1 VGA, 1 HD display port, and 2 Audio connectors for microphone and earphone.
1 mini-card socket and 1 SIM card holder for WLAN/GSM/GPRS applications.
1 free PCIe expansion slot or 1 free PCI expansion slot with
1 terminal block for DC power input and 1 power button.
1 terminal block for 8 isolated digital I/Os.
* Storage Bay
1 CFast socket for CFast modules.
One 2.5" SATA hard disk space.
* Power requirement
FP8152T: +12 ~ +24V DC, 3.00A maximum (2.00A typical) with 19V input voltage.
FP8153T: +12 ~ +24V DC, 2.74A maximum (1.76A typical) with 19V input voltage.
* Mechanical
Dimensions: 400mm(W) x 307mm(H) x 64.9mm(D)
Weight: 7.6Kg (Standard packing)
Approval: IP65 (Ref. to front panel approval)
USB DISPLAY2 USB COM5 COM3
LAN1 LAN2 COM6 COM4 COM2
optional FB4757 riser card.
©2016-2017 FabiaTech Corporation
Page 1/4
COM1 DC IN
CRT
