FabiaTech FP8081 Series Users Quick Reference

Version 2.2

1. Brief

The FP8081x is an 8-inch Panel PC with touch screen device (FP8081xT). This user's quick reference
provides its outlook information and I/O outlets description.

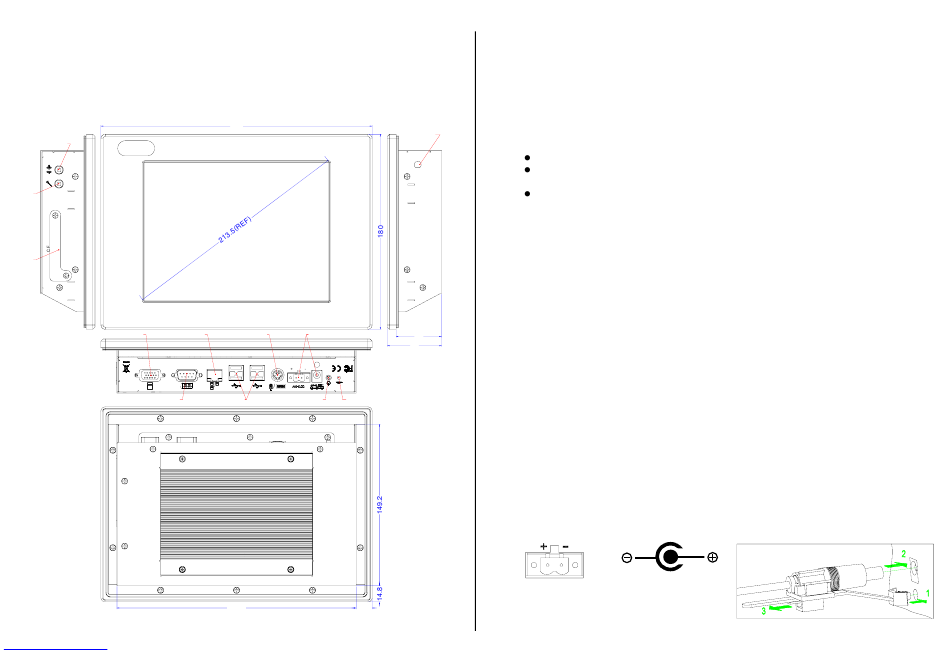

2. Dimensions (in mm) and Rear I/O Information

EAR-PHONE
MIC
CF
CRT
COM
Cut out dimension 222 x 151 mm
www.fabiatech.com
FP8081 Series User's Quick Reference
250
LAN KB/MOUSE
DC-IN
USB POWER BUTTON
RESET
220.4 14.8

3. Packing List

A. Standard Items
1 FP8081T industrial Panel PC.
1 AC to DC19V power adapter and 1 AC power cord cable.
1 pack of accessories including touch pen, embedded mounting kits, and SATA cables, etc.
1 2-pin apartable terminal block.
1 compact disc includes software utilities and manuals.
Antenna
B. Optional Items
1 Y-type (3-end) PS/2 keyboard plus mouse port adapter cable. (P/N: 7003000008G)
Antenna
Half size mini PCIe module adapter kit (AK1006, 1 piece of metal with 2 screws, P/N:
0606010028G)
Din-Rail mounting kit (FP8081K1, P/N: 0606010026G, 2 pieces of metal with 6 fixed screws)

4. Features

* Processor Board
Intel® Atom™ N270 (1.6GHz, 512KB L2, FSB 533MHz, 2.5 Watts) processor with 1GB DDR2 RAM.
(2GB Max.)
* I/O Outlets
One 10/100/1000 base-TX Ethernet port.
4 USB ports (V2.0) and 1 RS-232/422/485 serial port.
1 VGA (CRT) and 1 PS/2 compatible keyboard/mouse interface.
2 Audio connectors for Earphone and Microphone.
42
1 mini PCIe socket and 1 SIM card socket for WLAN/GSM applications.
50
1 DC-In plug connector and 1 terminal block for DC power input.
1 power button and 1 reset button.
* Storage Bay
1 CompactFlash socket for CompactFlash modules or MicroDrives.
One 2.5" SATA hard disk space.
* Power requirement
+12 ~ +24V DC, 2.16A maximum (1.36A typical) with 19V input voltage.
* Mechanical
Dimensions: 50mm(D) x 250mm(W) x 180mm(H)
Weight: 2.8Kg.(Standard packing)
Approval: IP65 Compliant.

5. I/O outlets and LED Indicator

A. Power Connectors
DC12~24V
Terminal Block
DC +12V to +24V, 48W minimum
DC Plug-In Connector
©2010-2013 FabiaTech Corporation
