CHIEF FSB-4243 Installation Instructions

I N S T A L L A T I O N I N S T R U C T I O N S
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480
(1) Interface Bracket
(4) Mounting Buttons – Tapped
(4) M6 x 16mm Phillips Pan Head Screws
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
NOTE: If installing screen on a Chief F-series swing arm mount, proceed to Step 2.
1. Chief Q Button Installation (Used with M-series mounts):
2

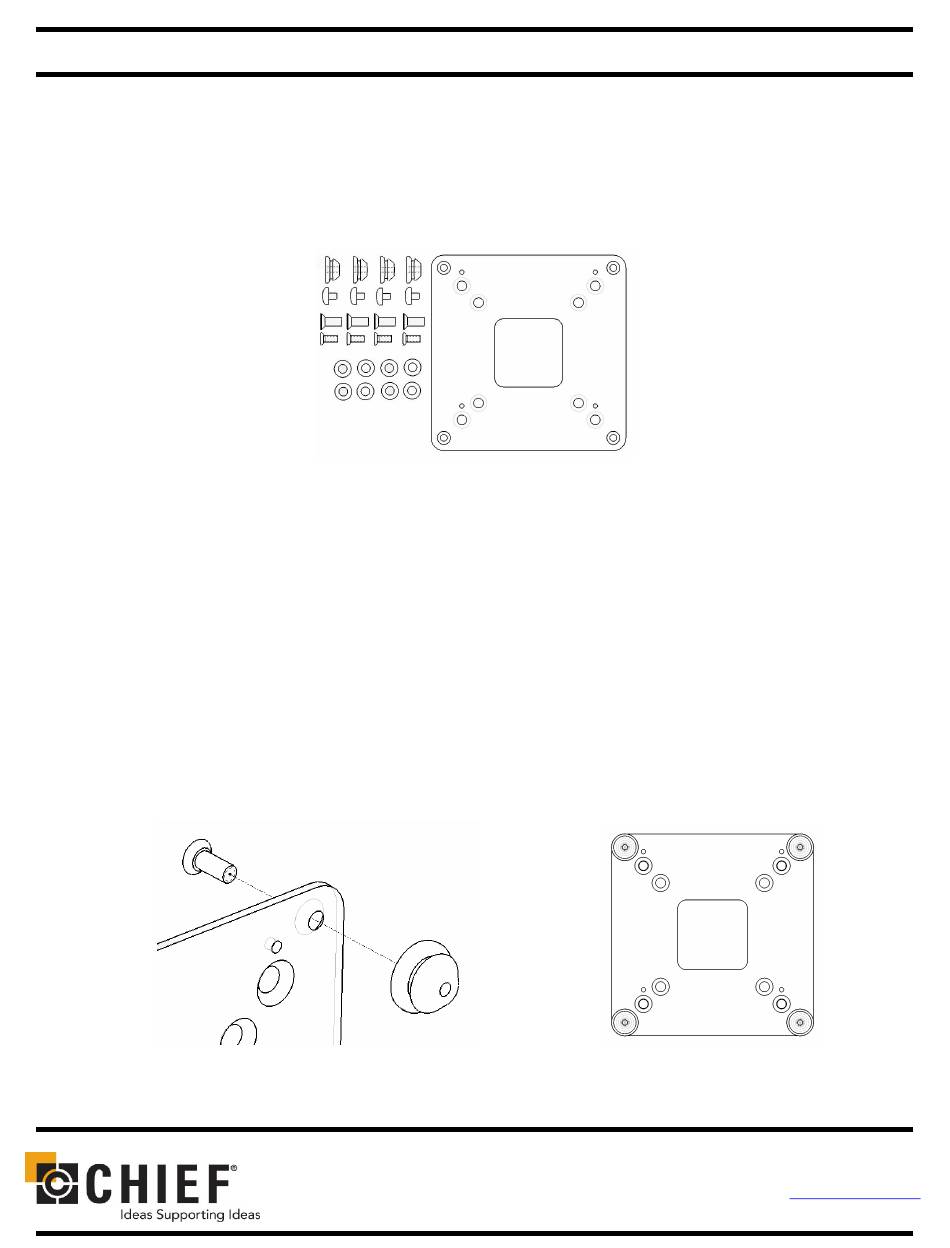

Using a 10-24 button head cap screw inserted from back side of bracket, secure mounting button, with
chamfered hole of mounting button (larger surface) facing bracket (four places) (see Figure 2 & Figure3).
FSB-4243
DISPLAY MOUNTING BRACKET
Prior to assembly, unpack carton completely and verify contents.
DISPLAYS ARE EXTREMELY FRAGILE.
Figure 2
CHIEF MANUFACTURING INC.
1-800-582-6480 952-894-6280 FAX 952-894-6918
8401 EAGLE CREEK PKWY, STE. 700
SAVAGE, MINNESOTA 55378 USA
Figure 1
(8) .500 x .260 x .125 Nylon Spacers
(4) 10-24 x .500 Phillips Pan Head Screws
(4) M4 x 6mm Phillips Pan Machine Screws
Figure 3
8835-000005 RevB
