CHIEF FSB-4228 Installation Instructions

Flat panel display adapter plate for samsung ltp227w

Advertisement

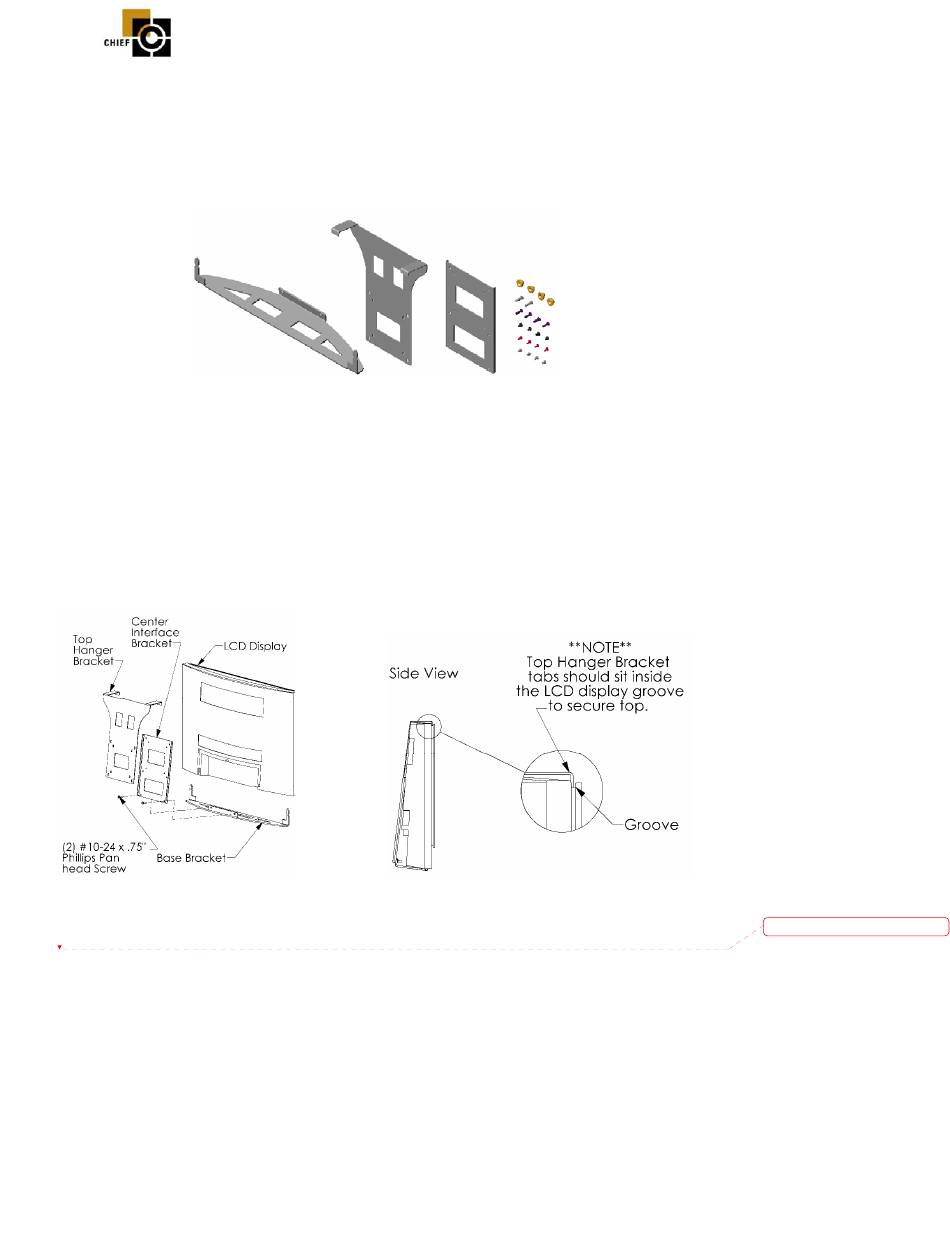

FLAT PANEL DISPLAY ADAPTER PLATE
Prior to assembly, unpack carton completely and verify contents.
If you are missing any of the following components, please contact Customer Service at 1-800/582-6480.
(1) Base Adapter Bracket
(1) Top Hanger Bracket
(1) Center Interface Bracket
(4) Non-tapped Mounting Buttons
BEFORE PROCEEDING, READ INSTALLATION INSTRUCTIONS COMPLETELY
CAUTION!
1. If flat panel display has table stand attached, remove prior to adapter bracket installation.
2. Assemble brackets and fasteners to display, as shown in figure 2 and 3.
Figure 2
8804-000230 Rev B
CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com
INSTALLATION INSTRUCTIONS
FSB-4228
For SAMSUNG LTP227W
Figure 1
(2) 10-24 x .75" Phillips Pan Head Screws
(4) 10-24 x .625" Phillips Pan Head Screws
(4 10-24 x .25" Phillips Pan Head Screws
(4) M4 x 8mm Phillips Pan Head Screws
(2) M4 X 6mm Phillips Pan Head Screws
FLAT PANEL DISPLAYS ARE EXTREMELY FRAGILE.
Figure 3
11/28/05
Deleted: <sp>

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the FSB-4228 and is the answer not in the manual?

Questions and answers

Summary of Contents for CHIEF FSB-4228

  • Page 1 1. If flat panel display has table stand attached, remove prior to adapter bracket installation. 2. Assemble brackets and fasteners to display, as shown in figure 2 and 3. Figure 3 Figure 2 Deleted: <sp> 8804-000230 Rev B 11/28/05 CHIEF MANUFACTURING INC. 1-800-582-6480, Fax: 1-877-894-6918, Email: chief@chiefmfg.com...
  • Page 2 Interface installation 2a. If using with any small flat screen system using Chief Manufacturing’s Q2 (5” x 5”) mounting system. 1. Assemble (4) mounting buttons to 5” (outer holes) pattern on the adapter brackets using (4) 10-24 x .625” Phillips pan head screws as shown in Figure 4.
