ZiLOG Z8 Encore! Quick Start Manual page 3

Always use a grounding strap to prevent damage resulting from electro-
Caution:
static discharge (ESD).
1. Connect the serial port of the PC to the Z8 Encore! Smart Cable DB-9 female
connector.
2. Connect the Z8 Encore! Smart Cable to the Z8 Encore! 8K/4K MCU evaluation board
pin header P2.
3. Connect the power supply to the evaluation board at J1, then to an electrical outlet
(Figure 2).
Serial Port
Smart Cable

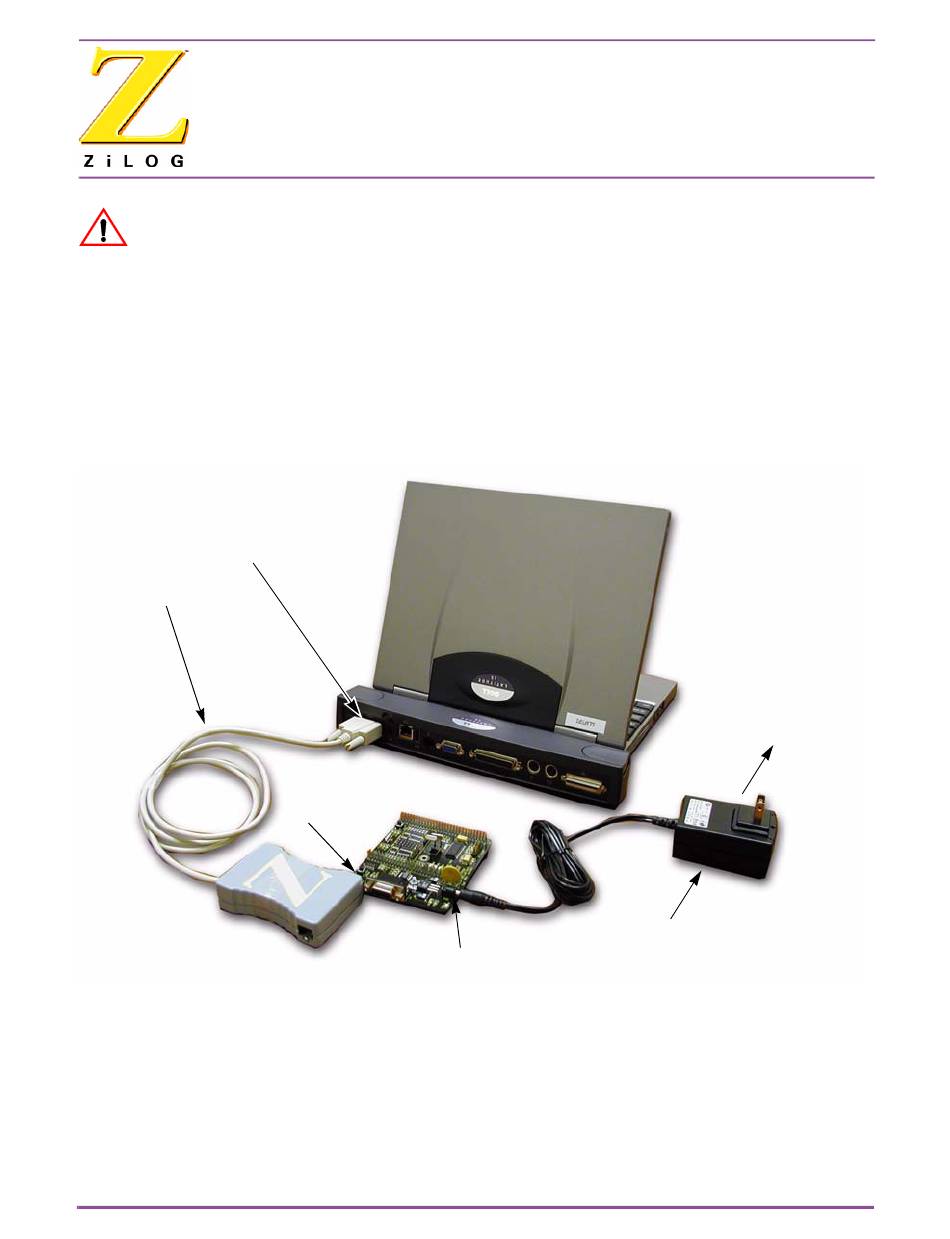

Figure 2. Evaluation Board External Connections
Installing the ZDS II Z8 Encore! Software
Perform the following steps to install the software tools:
1. Load the ZDS II CD into the CD-ROM drive of the host PC. The CD launches
DemoShield automatically and provides a menu to install the product and
QS002504-0603
Evaluation
Board
P2
J1
Z8 Encore!
Evaluation Kit Quick Start Guide
Host PC
Power Supply
Installing the ZDS II Z8 Encore! Software
TM 8K/4K MCU
Page 3
To Electrical
Outlet
